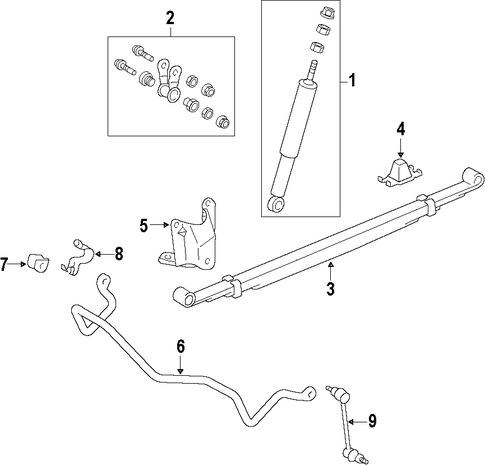

REAR SUSPENSION/REAR SUSPENSION for 2016 Toyota Tacoma

Select REAR SUSPENSION Part

2016 Toyota Tacoma

Change vehicle

No. Part # Part # / Description List Price Price
1 48530-09894 48530-09894 / Shock Absorber

Shock, RIGHT

4WD, MARK: 48530-04100

$47.22 $35.42
1 48530-09895 48530-09895 / Absorber Assembly Shock

Shock, LEFT

4WD, MARK: 48530-04111

$80.13 $60.10
2 90948-A2005 90948-A2005 / Shock Retainer

Shock Retainer, RIGHT

4WD, #1

$6.95 $5.21
2 90948-A2005 90948-A2005 / Shock Retainer

Shock Retainer, LEFT

4WD, #1

$6.95 $5.21
3 90948-A2006 90948-A2006 / Shock Retainer

Shock Retainer, LEFT

4WD, #2

$4.28 $3.21
4 90540-A0007 90540-A0007 / Shock Upper Bushing

Shock Upper Bushing, RIGHT

4WD, W/OFF ROAD PKG

$5.09 $3.82
5 90540-A0008 90540-A0008 / Shock Lower Bushing

Shock Lower Bushing, LEFT

4WD, W/OFF ROAD PKG

$5.09 $3.82
5 90540-A0008 90540-A0008 / Shock Lower Bushing

Shock Lower Bushing, RIGHT

4WD, W/OFF ROAD PKG

$5.09 $3.82
6 90177-A0010 90177-A0010 / Top Nut

Top Nut, LEFT

4WD

$1.32 $0.99
6 90177-A0010 90177-A0010 / Top Nut

Top Nut, RIGHT

4WD

$1.32 $0.99
8 90389-A0004 90389-A0004 / Leaf Spring Assembly Bushing

Leaf Spring Assembly Front Bushing, LEFT

4WD

$26.46 $19.85
8 90389-A0004 90389-A0004 / Leaf Spring Assembly Bushing

Leaf Spring Assembly Front Bushing, RIGHT

4WD

$26.46 $19.85
9 90389-A0003 90389-A0003 / Leaf Spring Assembly Rear Bushing

Leaf Spring Assembly Rear Bushing, LEFT

4WD

$8.27 $6.20
9 90389-A0003 90389-A0003 / Leaf Spring Assembly Rear Bushing

Leaf Spring Assembly Rear Bushing, RIGHT

4WD

$8.27 $6.20
10 48407-04020 48407-04020 / Side Rail Bracket

Front Bracket, LEFT

4WD

$106.42 $79.82
10 48404-04020 48404-04020 / Side Rail Bracket

Front Bracket, RIGHT

4WD

$106.42 $79.82
11 48473-04040 48473-04040 / Spring Seat

Spring Seat, RIGHT

4WD

$78.58 $58.94
11 48473-04040 48473-04040 / Spring Seat

Spring Seat, LEFT

4WD

$78.58 $58.94
12 90117-A0005 90117-A0005 / U-Bolt

Spring Seat U-Bolt, LEFT

4WD

$31.49 $23.62
12 90117-A0005 90117-A0005 / U-Bolt

Spring Seat U-Bolt, RIGHT

4WD

$31.49 $23.62
13 48341-04100 48341-04100 / Bumper

Spring Seat Bumper, LEFT

4WD

$35.02 $26.27
13 48341-04100 48341-04100 / Bumper

Spring Seat Bumper, RIGHT

4WD

$35.02 $26.27
No. Part # Part # / Description List Price Price
1 48530-09896 48530-09896 / Shock Absorber

Shock, LEFT

2WD, MARK: 48530-04130

$47.22 $35.42
1 48530-09896 48530-09896 / Shock Absorber

Shock, RIGHT

2WD, MARK: 48530-04130

$47.22 $35.42
1 48530-09895 48530-09895 / Absorber Assembly Shock

Shock, RIGHT

2WD, MARK: 48530-04111

$80.13 $60.10
1 48530-09894 48530-09894 / Shock Absorber

Shock, LEFT

2WD, MARK: 48530-04100

$47.22 $35.42
3 90948-A2006 90948-A2006 / Shock Retainer

Shock Retainer, RIGHT

2WD, #2

$4.28 $3.21
4 90540-A0007 90540-A0007 / Shock Upper Bushing

Shock Upper Bushing, LEFT

2WD, W/OFF ROAD PKG

$5.09 $3.82
4 90540-A0003 90540-A0003 / Shock Upper Bushing

Shock Upper Bushing, LEFT

2WD, W/O OFF ROAD PKG

$5.09 $3.82
4 90540-A0003 90540-A0003 / Shock Upper Bushing

Shock Upper Bushing, RIGHT

2WD, W/O OFF ROAD PKG

$5.09 $3.82
5 90540-A0004 90540-A0004 / Shock Lower Bushing

Shock Lower Bushing, LEFT

2WD, W/O OFF ROAD PKG

$5.09 $3.82
5 90540-A0004 90540-A0004 / Shock Lower Bushing

Shock Lower Bushing, RIGHT

2WD, W/O OFF ROAD PKG

$5.09 $3.82
7 48210-04700 48210-04700 / Leaf Spring Assembly

Leaf Spring Assembly, RIGHT

2WD, DOUBLE CAB

$733.51 $550.13
7 48220-04340 48220-04340 / Spring Assembly

Leaf Spring Assembly, LEFT

2WD, DOUBLE CAB

$733.51 $550.13
14 04483-04080 04483-04080 / Shackle

Shackle, RIGHT

2WD, KIT

$104.30 $78.23
14 04483-04080 04483-04080 / Shackle

Shackle, LEFT

2WD, KIT

$104.30 $78.23

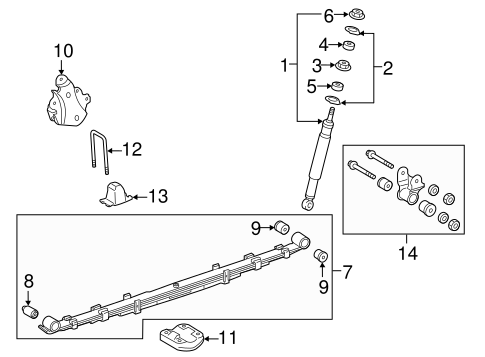

REAR SUSPENSION/REAR SUSPENSION for 2016 Toyota Tacoma #3
No. Part # Part # / Description List Price Price
1 48530-09896 48530-09896 / Shock Absorber

TACOMA; 3.5L; MARK 48530-04130

$47.22 $35.42
1 48530-09894 48530-09894 / Shock Absorber

TACOMA; 3.5L; MARK 48530-04100

$47.22 $35.42
1 48530-09895 48530-09895 / Absorber Assembly Shock

Shock Absorber

TACOMA; 3.5L; MARK 48530-04111

$80.13 $60.10
2 04483-04080 04483-04080 / Shackle

TACOMA

$104.30 $78.23
3 48220-04350 48220-04350 / Leaf Spring Assembly

Leaf Spring

TACOMA; 3.5L; LEFT; STANDARD SUSPENSION

$733.51 $550.13
3 48210-04710 48210-04710 / Leaf Spring Assembly

Leaf Spring

TACOMA; 3.5L; RIGHT; STANDARD SUSPENSION

$733.51 $550.13
3 48220-04450 48220-04450 / Leaf Spring Assembly

Leaf Spring

TACOMA; 3.5L; LEFT; FIRM RIDE SUSPENSION

$733.51 $550.13
3 48210-04810 48210-04810 / Leaf Spring

TACOMA; 3.5L; RIGHT; FIRM RIDE SUSPENSION

$733.51 $550.13
4 48341-04100 48341-04100 / Bumper

TACOMA

$35.02 $26.27
5 48407-04020 48407-04020 / Side Rail Bracket

Bracket

TACOMA; LEFT

$106.42 $79.82
5 48404-04020 48404-04020 / Side Rail Bracket

Bracket

TACOMA; RIGHT

$106.42 $79.82
