FRONT SUSPENSION/SUSPENSION COMPONENTS for 2016 Toyota Tacoma

Select SUSPENSION COMPONENTS Part

2016 Toyota Tacoma

Change vehicle

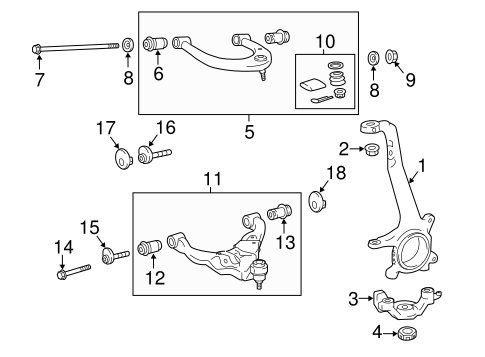

No. Part # Part # / Description List Price Price
1 43212-04050 43212-04050 / Knuckle

Knuckle, LEFT

4WD

$390.10 $286.13
1 43211-04060 43211-04060 / Knuckle

Knuckle, RIGHT

4WD

$390.10 $286.13
2 90171-A0001 90171-A0001 / Ball Joint Castle Nut

Knuckle Nut, LEFT

4WD

$1.67 $1.22
2 90171-A0001 90171-A0001 / Ball Joint Castle Nut

Knuckle Nut, RIGHT

4WD

$1.67 $1.22
3 48625-04050 48625-04050 / Attachment Kit

Mount Bracket, RIGHT

4WD

$89.85 $65.89
3 48626-04040 48626-04040 / Attachment Kit

Mount Bracket, LEFT

4WD

$89.85 $65.89
4 90171-A0005 90171-A0005 / Lower Control Arm Nut

Mount Bracket Castle Nut, LEFT

4WD

$4.28 $3.14
4 90171-A0005 90171-A0005 / Lower Control Arm Nut

Mount Bracket Castle Nut, RIGHT

4WD

$4.28 $3.14
5 48610-04020 48610-04020 / Upper Control Arm

Upper Control Arm, RIGHT

4WD

$379.12 $278.07
5 48630-04020 48630-04020 / Upper Control Arm

Upper Control Arm, LEFT

4WD

$379.12 $278.07
6 48632-04020 48632-04020 / Upper Control Arm Bushing

Upper Control Arm Bushing, LEFT

4WD

$45.28 $33.21
6 48632-04020 48632-04020 / Upper Control Arm Bushing

Upper Control Arm Bushing, RIGHT

4WD

$45.28 $33.21
7 90105-A0095 90105-A0095 / Upper Control Arm Mount Bolt

Upper Control Arm Pivot Bolt, RIGHT

4WD

$12.99 $9.53
7 90105-A0095 90105-A0095 / Upper Control Arm Mount Bolt

Upper Control Arm Pivot Bolt, LEFT

4WD

$12.99 $9.53
8 90948-A2002 90948-A2002 / Upper Control Arm Retainer

Upper Control Arm Retainer, RIGHT

4WD

$19.54 $14.34
8 90948-A2002 90948-A2002 / Upper Control Arm Retainer

Upper Control Arm Retainer, LEFT

4WD

$19.54 $14.34
9 90080-17208 90080-17208 / Upper Control Arm Nut

Upper Control Arm Nut, RIGHT

4WD

$3.25 $2.38
9 90080-17208 90080-17208 / Upper Control Arm Nut

Upper Control Arm Nut, LEFT

4WD

$3.25 $2.38
10 43324-39045 43324-39045 / Upper Ball Joint Cover

Boot, LEFT

4WD

$9.48 $6.95
10 43324-39045 43324-39045 / Upper Ball Joint Cover

Boot, RIGHT

4WD

$9.48 $6.95
11 48069-04060 48069-04060 / Lower Control Arm

Lower Control Arm, LEFT

4WD

$351.96 $258.15
11 48068-04060 48068-04060 / Lower Control Arm

Lower Control Arm, RIGHT

4WD

$351.96 $258.15
12 48654-04050 48654-04050 / Lower Control Arm Front Bushing

Lower Control Arm Front Bushing, RIGHT

4WD

$66.14 $48.51
12 48654-04050 48654-04050 / Lower Control Arm Front Bushing

Lower Control Arm Front Bushing, LEFT

4WD

$66.14 $48.51
13 48655-04030 48655-04030 / Lower Control Arm Rear Bushing

Lower Control Arm Rear Bushing, LEFT

4WD

$85.94 $63.04
13 48655-04030 48655-04030 / Lower Control Arm Rear Bushing

Lower Control Arm Rear Bushing, RIGHT

4WD

$85.94 $63.04
14 90119-16005 90119-16005 / Lower Control Arm Mount Bolt

Lower Control Arm Front Bolt, RIGHT

4WD

$8.85 $6.49
14 90119-16005 90119-16005 / Lower Control Arm Mount Bolt

Lower Control Arm Front Bolt, LEFT

4WD

$8.85 $6.49
15 48409-60040 48409-60040 / Lower Control Arm Adjust Bolt

Adjust Bolt, LEFT

4WD, FRONT

$20.69 $15.18
15 48409-60040 48409-60040 / Lower Control Arm Adjust Bolt

Adjust Bolt, RIGHT

4WD, FRONT

$20.69 $15.18
16 48190-60040 48190-60040 / Lower Control Arm Adjust Bolt

Adjust Bolt, LEFT

4WD, REAR

$19.14 $14.03
16 48190-60040 48190-60040 / Lower Control Arm Adjust Bolt

Adjust Bolt, RIGHT

4WD, REAR

$19.14 $14.03
17 48452-60020 48452-60020 / Lower Control Arm Adjust Cam

Adjust Cam, LEFT

4WD, FRONT

$23.30 $17.09
17 48452-60020 48452-60020 / Lower Control Arm Adjust Cam

Adjust Cam, RIGHT

4WD, FRONT

$23.30 $17.09
18 48198-60020 48198-60020 / Lower Control Arm Adjust Cam

Adjust Cam, RIGHT

4WD, REAR

$19.02 $13.96
18 48198-60020 48198-60020 / Lower Control Arm Adjust Cam

Adjust Cam, LEFT

4WD, REAR

$19.02 $13.96
FRONT SUSPENSION/SUSPENSION COMPONENTS for 2016 Toyota Tacoma #2
No. Part # Part # / Description List Price Price
1 43502-04140 43502-04140 / Hub

Front Hub

TACOMA

$198.94 $145.91
2 90312-96001 90312-96001 / Outer Seal

TACOMA

$15.69 $11.50
4 43442-04010 43442-04010 / Grease Cap

Cap

TACOMA

$19.54 $14.34
5 43212-04050 43212-04050 / Knuckle

TACOMA; LEFT

$390.10 $286.13
6 48510-8Z255 48510-8Z255 / Shock Absorber

TACOMA; 3.5L; MARK 48510-04220

$143.57 $105.31
6 48510-8Z253 48510-8Z253 / Shock Absorber

TACOMA; 3.5L; MARK 48510-04191

$114.85 $84.24
8 48131-04A10 48131-04A10 / Coil Spring

TACOMA; 3.5L; LEFT; 127 WHEELBASE; W/O FUEL TANK PROTECTOR; ACCESS CAB

$174.88 $128.26
8 48131-04890 48131-04890 / Coil Spring

TACOMA; 3.5L; LEFT; 127 WHEELBASE; W/O FUEL TANK PROTECTOR; DOUBLE CAB

$147.89 $108.47
8 48131-04B10 48131-04B10 / Coil Spring

TACOMA; 3.5L; RIGHT; 127 WHEELBASE; W/FUEL TANK PROTECTOR

$191.48 $140.45
8 48131-04A00 48131-04A00 / Coil Spring

TACOMA; 3.5L; LEFT; 140 WHEELBASE; W/O FUEL TANK PROTECTOR

$174.88 $128.26
9 48304-04100 48304-04100 / Spring Bumper

Bumper

TACOMA

$36.78 $26.97
10 48610-04020 48610-04020 / Upper Control Arm

TACOMA; RIGHT

$379.12 $278.07
12 48069-04060 48069-04060 / Lower Control Arm

TACOMA; LEFT

$351.96 $258.15
13 48654-04050 48654-04050 / Lower Control Arm Front Bushing

Bushings

TACOMA; FRONT

$66.14 $48.51
15 48811-04130 48811-04130 / Stabilizer Bar

TACOMA; 3.5L; W/O FUEL TANK PROTECTOR

$194.58 $142.72
16 48815-AD030 48815-AD030 / Stabilizer Bar Bushing

Bushings

TACOMA; 3.5L; W/FUEL TANK PROTECTOR

$16.69 $12.25
16 48815-04080 48815-04080 / Stabilizer Bar Bushing

Bushings

TACOMA; 3.5L; W/O FUEL TANK PROTECTOR

$16.44 $12.05
FRONT SUSPENSION/SUSPENSION COMPONENTS for 2016 Toyota Tacoma #3
No. Part # Part # / Description List Price Price
1 43502-04080 43502-04080 / Front Hub

TACOMA

$198.94 $145.91
3 43570-04011 43570-04011 / Bearing

Front Wheel Bearing

TACOMA

$175.44 $128.67
4 90316-A0001 90316-A0001 / Inner Seal

TACOMA

$34.39 $25.23
5 43211-04060 43211-04060 / Knuckle

TACOMA; RIGHT

$390.10 $286.13
6 48510-8Z254 48510-8Z254 / Shock Absorber

TACOMA; 3.5L; MARK 48510-04200

$143.57 $105.31
7 48609-04020 48609-04020 / Shock Mount

TACOMA

$83.70 $61.39
8 48131-04B20 48131-04B20 / Coil Spring

TACOMA; 3.5L; RIGHT; 127 WHEELBASE; W/FUEL TANK PROTECTOR

$191.48 $140.45
8 48131-04A90 48131-04A90 / Coil Spring

TACOMA; 3.5L; LEFT; 127 WHEELBASE; W/FUEL TANK PROTECTOR

$191.48 $140.45
8 48131-04A60 48131-04A60 / Coil Spring

TACOMA; 3.5L; RIGHT; 127 WHEELBASE; W/O FUEL TANK PROTECTOR

$177.99 $130.54
8 48131-04880 48131-04880 / Coil Spring

TACOMA; 3.5L; LEFT; 127 WHEELBASE; W/O FUEL TANK PROTECTOR

$141.14 $103.52
8 48131-04B00 48131-04B00 / Coil Spring

TACOMA; 3.5L; RIGHT; 140 WHEELBASE; W/FUEL TANK PROTECTOR

$191.48 $140.45
10 48630-04020 48630-04020 / Upper Control Arm

TACOMA; LEFT

$379.12 $278.07
11 48632-04020 48632-04020 / Upper Control Arm Bushing

Bushings

TACOMA

$45.28 $33.21
12 48068-04060 48068-04060 / Lower Control Arm

TACOMA; RIGHT

$351.96 $258.15
13 48655-04030 48655-04030 / Lower Control Arm Rear Bushing

Bushings

TACOMA; REAR

$85.94 $63.04
14 48626-04040 48626-04040 / Attachment Kit

TACOMA; LEFT

$89.85 $65.89
14 48625-04050 48625-04050 / Attachment Kit

TACOMA; RIGHT

$89.85 $65.89
15 48811-AD050 48811-AD050 / Stabilizer Bar

TACOMA; 3.5L; W/FUEL TANK PROTECTOR

$177.68 $130.32
17 48824-04050 48824-04050 / Stabilizer Bar Bracket

Bracket

TACOMA; RIGHT

$28.19 $20.68
17 48829-04030 48829-04030 / Stabilizer Bar Bracket

Bracket

TACOMA; LEFT

$28.19 $20.68
18 48810-04010 48810-04010 / Stabilizer Link

Link

TACOMA; LEFT

$147.14 $107.92
18 48820-04020 48820-04020 / Stabilizer Link

Link

TACOMA; RIGHT

$147.14 $107.92
