ELECTRICAL/BULBS - CHASSIS for 2016 Toyota Tacoma

Select BULBS - CHASSIS Part

2016 Toyota Tacoma

Change vehicle

ELECTRICAL/BULBS - CHASSIS for 2016 Toyota Tacoma #1
No. Part # Part # / Description List Price Price
1 81150-04250 81150-04250 / Composite Assembly

Headlamp Assembly, LEFT

W/O LED

$423.49 $310.61
1 81110-04270 81110-04270 / Composite Assembly

Headlamp Assembly, RIGHT

W/LED, W/O WIDE ANGLE FOG, W/O BLACK BEZEL

$786.03 $576.51
1 81110-04250 81110-04250 / Composite Assembly

Headlamp Assembly, RIGHT

W/O LED

$423.49 $310.61
1 81150-04270 81150-04270 / Composite Assembly

Headlamp Assembly, LEFT

W/LED, W/O WIDE ANGLE FOG, W/O BLACK BEZEL

$786.03 $576.51
1 81110-04260 81110-04260 / Composite Assembly

Headlamp Assembly, RIGHT

W/LED, W/WIDE ANGLE FOG, W/LED, W/WIDE ANGLE FOG

$423.49 $310.61
1 81150-04260 81150-04260 / Composite Assembly

Headlamp Assembly, LEFT

W/LED, W/WIDE ANGLE FOG, W/LED, W/WIDE ANGLE FOG

$423.49 $310.61
1 81110-04270 81110-04270 / Composite Assembly

TACOMA; RIGHT; W/LED DRL; W/INTEGRATED FOG LAMP

$786.03 $576.51
1 81110-04260 81110-04260 / Composite Assembly

TACOMA; RIGHT; W/LED DRL; W/O INTEGRATED FOG LAMP

$423.49 $310.61
1 81150-04250 81150-04250 / Composite Assembly

TACOMA; LEFT; W/O LED DRL

$423.49 $310.61
1 81150-04260 81150-04260 / Composite Assembly

TACOMA; LEFT; W/LED DRL; W/O INTEGRATED FOG LAMP

$423.49 $310.61
1 81150-04270 81150-04270 / Composite Assembly

TACOMA; LEFT; W/LED DRL; W/INTEGRATED FOG LAMP

$786.03 $576.51
1 81110-04250 81110-04250 / Composite Assembly

TACOMA; RIGHT; W/O LED DRL

$423.49 $310.61
2 53271-0B010 53271-0B010 / Headlamp Assembly Mount Bracket

Headlamp Assembly Mount Bracket, LEFT

$11.78 $8.64
2 53271-0B010 53271-0B010 / Headlamp Assembly Mount Bracket

Headlamp Assembly Mount Bracket, RIGHT

$11.78 $8.64
3 90159-A0029 90159-A0029 / Headlamp Assembly Screw

Headlamp Assembly Screw, RIGHT

$0.86 $0.63
3 90159-A0029 90159-A0029 / Headlamp Assembly Screw

Headlamp Assembly Screw, LEFT

$0.86 $0.63
4 90189-05142 90189-05142 / Headlamp Assembly Grommet

Headlamp Assembly Grommet, LEFT

$1.15 $0.84
4 90189-05142 90189-05142 / Headlamp Assembly Grommet

Headlamp Assembly Grommet, RIGHT

$1.15 $0.84
5 90105-A0076 90105-A0076 / Headlamp Assembly Bolt

Headlamp Assembly Bolt, LEFT

$0.86 $0.63
5 90105-A0076 90105-A0076 / Headlamp Assembly Bolt

Headlamp Assembly Bolt, RIGHT

$0.86 $0.63
6 90981-13085 90981-13085 / Low Beam Bulb

Low Beam Bulb, LEFT

$23.85 $17.49
6 90981-13085 90981-13085 / Low Beam Bulb

Low Beam Bulb, RIGHT

$23.85 $17.49
6 90981-13085 90981-13085 / Low Beam Bulb

Headlamp Bulb

TACOMA; 12V55W

$23.85 $17.49
7 90981-13084 90981-13084 / High Beam Bulb

High Beam Bulb, RIGHT

$61.95 $45.43
7 90981-13084 90981-13084 / High Beam Bulb

High Beam Bulb, LEFT

$61.95 $45.43
7 90981-13084 90981-13084 / High Beam Bulb

Headlamp Bulb

TACOMA; 12V65W

$61.95 $45.43
8 90981-15030 90981-15030 / Signal Bulb

Signal Bulb, RIGHT

W/PARK LAMP

$9.83 $7.21
8 90981-15021 90981-15021 / Bulb

Signal Bulb, LEFT

W/O PARK LAMP

$4.80 $3.51
8 90981-15021 90981-15021 / Bulb

Signal Bulb, RIGHT

W/O PARK LAMP

$4.80 $3.51
8 90981-15030 90981-15030 / Signal Bulb

Signal Bulb, LEFT

W/PARK LAMP

$9.83 $7.21
8 90981-15021 90981-15021 / Bulb

Exterior Bulbs

TACOMA; FRONT TURN SIGNAL; W/O PARK LAMP

$4.80 $3.51
8 90981-15030 90981-15030 / Signal Bulb

Exterior Bulbs

TACOMA; FRONT TURN SIGNAL; W/PARK LAMP

$9.83 $7.21
9 81128-06470 81128-06470 / Socket

Signal Bulb Socket, LEFT

W/O PARK LAMP

$15.49 $11.36
9 81128-06470 81128-06470 / Socket

Signal Bulb Socket, RIGHT

W/O PARK LAMP

$15.49 $11.36
9 90075-60028 90075-60028 / Socket

Signal Bulb Socket, LEFT

W/PARK LAMP

$9.97 $7.31
9 90075-60028 90075-60028 / Socket

Signal Bulb Socket, RIGHT

W/PARK LAMP

$9.97 $7.31
10 00234-00192 00234-00192 / Bulb

Marker Lamp Bulb, RIGHT

$1.04 $0.77
10 00234-00192 00234-00192 / Bulb

Marker Lamp Bulb, LEFT

$1.04 $0.77
10 00234-00192 00234-00192 / Bulb

Exterior Bulbs

TACOMA; FRONT SIDE MARKER LAMP

$1.04 $0.77
11 90075-60001 90075-60001 / Socket

Marker Lamp Bulb Socket, RIGHT

$9.97 $7.31
11 90075-60001 90075-60001 / Socket

Marker Lamp Bulb Socket, LEFT

$9.97 $7.31
No. Part # Part # / Description List Price Price

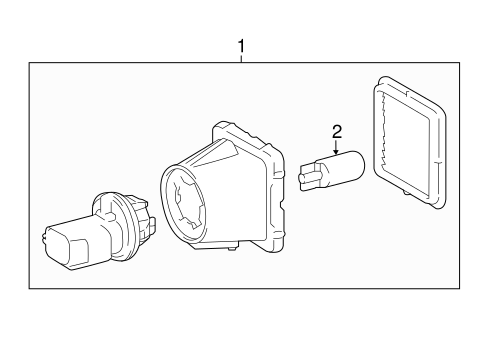

1 81270-0C040 81270-0C040 / License Lamp

License Lamp, RIGHT

$30.11 $22.08
1 81270-0C040 81270-0C040 / License Lamp

License Lamp, LEFT

$30.11 $22.08
2 90981-AD009 90981-AD009 / License Lmp Bulb

License Lmp Bulb, LEFT

$3.22 $2.35
2 90981-AD009 90981-AD009 / License Lmp Bulb

License Lmp Bulb, RIGHT

$3.22 $2.35
2 90981-AD009 90981-AD009 / License Lmp Bulb

Exterior Bulbs

TACOMA; LICENSE PLATE

$3.22 $2.35
No. Part # Part # / Description List Price Price

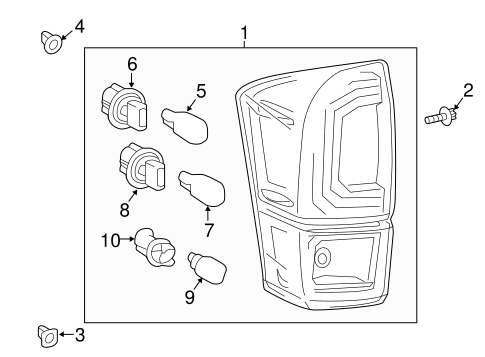

1 81550-04170 81550-04170 / Tail Lamp Assembly

Tail Lamp Assembly, RIGHT

W/O LED

$196.33 $144.00
1 81560-04180 81560-04180 / Tail Lamp Assembly

Tail Lamp Assembly, LEFT

W/LED, W/O CHROME, W/O SMOKED

$196.33 $144.00
1 81550-04180 81550-04180 / Tail Lamp Assembly

Tail Lamp Assembly, RIGHT

W/LED, W/O CHROME, W/O SMOKED

$196.33 $144.00
1 81560-04170 81560-04170 / Tail Lamp Assembly

Tail Lamp Assembly, LEFT

W/O LED

$196.33 $144.00
1 81560-04190 81560-04190 / Tail Lamp Assembly

Tail Lamp Assembly, LEFT

W/LED, W/CHROME

$196.33 $144.00
1 81550-04190 81550-04190 / Tail Lamp Assembly

Tail Lamp Assembly, RIGHT

W/LED, W/CHROME

$196.33 $144.00
2 90119-A0079 90119-A0079 / Tail Lamp Assembly Bolt

Tail Lamp Assembly Bolt, LEFT

$0.86 $0.63
2 90119-A0079 90119-A0079 / Tail Lamp Assembly Bolt

Tail Lamp Assembly Bolt, RIGHT

$0.86 $0.63
3 76817-0E010 76817-0E010 / Combo Lamp Assembly Clip

Tail Lamp Assembly Grommet, LEFT

$1.70 $1.24
3 76817-0E010 76817-0E010 / Combo Lamp Assembly Clip

Tail Lamp Assembly Grommet, RIGHT

$1.70 $1.24
4 81496-0E020 81496-0E020 / Tail Lamp Assembly Guide

Tail Lamp Assembly Guide, LEFT

$1.18 $0.87
4 81496-0E020 81496-0E020 / Tail Lamp Assembly Guide

Tail Lamp Assembly Guide, RIGHT

$1.18 $0.87
5 90981-13044 90981-13044 / Bulb

Signal Bulb, RIGHT

$5.23 $3.83
5 90981-13044 90981-13044 / Bulb

Signal Bulb, LEFT

$5.23 $3.83
5 90981-13044 90981-13044 / Bulb

Exterior Bulbs

TACOMA; STOP/TAILLAMP

$5.23 $3.83
6 81128-06470 81128-06470 / Socket

Signal Bulb Socket, LEFT

$15.49 $11.36
6 81128-06470 81128-06470 / Socket

Signal Bulb Socket, RIGHT

$15.49 $11.36
7 90981-13044 90981-13044 / Bulb

Stop Lamp Bulb, LEFT

$5.23 $3.83
7 90981-13044 90981-13044 / Bulb

Stop Lamp Bulb, RIGHT

$5.23 $3.83
8 90075-60083 90075-60083 / Socket

Stop Lamp Bulb Socket, RIGHT

$11.49 $8.43
8 90075-60083 90075-60083 / Socket

Stop Lamp Bulb Socket, LEFT

$11.49 $8.43
9 90981-11059 90981-11059 / Bulb

Backup Lamp Bulb, LEFT

$4.77 $3.50
9 90981-11059 90981-11059 / Bulb

Backup Lamp Bulb, RIGHT

$4.77 $3.50
9 90981-11059 90981-11059 / Bulb

Exterior Bulbs

TACOMA; BACK-UP LAMP

$4.77 $3.50
10 90075-60001 90075-60001 / Socket

Backup Lamp Bulb Socket, RIGHT

$9.97 $7.31
10 90075-60001 90075-60001 / Socket

Backup Lamp Bulb Socket, LEFT

$9.97 $7.31
No. Part # Part # / Description List Price Price

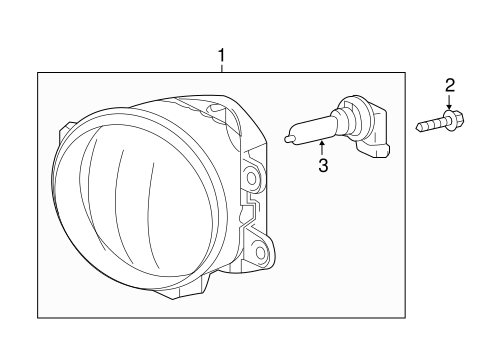

1 81210-08020 81210-08020 / Fog Lamp Assembly

Fog Lamp Assembly, RIGHT

W/O LED, W/WIDE ANGLE

$203.88 $149.54
1 81220-08020 81220-08020 / Fog Lamp Assembly

Fog Lamp Assembly, LEFT

W/O LED, W/WIDE ANGLE

$203.88 $149.54
1 81210-02160 81210-02160 / Fog Lamp Assembly

Fog Lamp Assembly, RIGHT

W/O LED, W/O WIDE ANGLE

$199.92 $146.63
1 81220-02160 81220-02160 / Fog Lamp Assembly

Fog Lamp Assembly, LEFT

W/O LED, W/O WIDE ANGLE

$199.92 $146.63
1 81210-02160 81210-02160 / Fog Lamp Assembly

TACOMA; RIGHT; 19W FOG LAMP

$199.92 $146.63
1 81210-08020 81210-08020 / Fog Lamp Assembly

TACOMA; RIGHT; 55W FOG LAMP

$203.88 $149.54
1 81220-02160 81220-02160 / Fog Lamp Assembly

TACOMA; LEFT; 19W FOG LAMP

$199.92 $146.63
1 81220-08020 81220-08020 / Fog Lamp Assembly

TACOMA; LEFT; 55W FOG LAMP

$203.88 $149.54
2 90167-50063 90167-50063 / Fog Lamp Assembly Screw

Fog Lamp Assembly Screw, LEFT

$0.63 $0.46
2 90167-50063 90167-50063 / Fog Lamp Assembly Screw

Fog Lamp Assembly Screw, RIGHT

$0.63 $0.46
3 90981-13090 90981-13090 / Fog Lamp Bulb

Fog Lamp Bulb, RIGHT

19W

$23.82 $17.47
3 90981-AD006 90981-AD006 / Fog Lamp Bulb

Fog Lamp Bulb, LEFT

55W

$23.91 $17.53
3 90981-AD006 90981-AD006 / Fog Lamp Bulb

Fog Lamp Bulb, RIGHT

55W

$23.91 $17.53
3 90981-13090 90981-13090 / Fog Lamp Bulb

Fog Lamp Bulb, LEFT

19W

$23.82 $17.47
3 90981-13090 90981-13090 / Fog Lamp Bulb

TACOMA; 19W

$23.82 $17.47
3 90981-AD006 90981-AD006 / Fog Lamp Bulb

TACOMA; 55W

$23.91 $17.53
