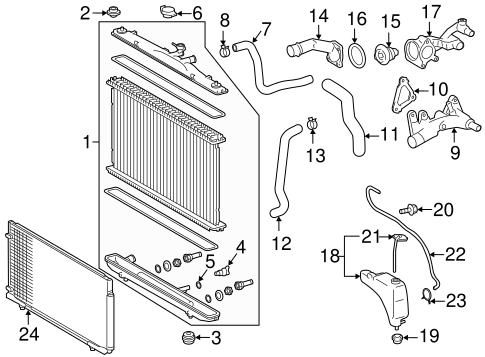

COOLING SYSTEM/RADIATOR & COMPONENTS for 2016 Toyota Sienna

Select RADIATOR & COMPONENTS Part

2016 Toyota Sienna

Change vehicle

No. Part # Part # / Description List Price Price
1 16041-0P270 16041-0P270 / Radiator

3.5 LITER, 2011-16, W/TOWING PACKAGE

$402.40 $295.14
1 16041-0P260 16041-0P260 / Radiator

3.5 LITER, 2011-16, W/O TOWING PACKAGE

$377.37 $276.78
2 16523-AD010 16523-AD010 / Radiator Assembly Upper Insulator

Radiator Upper Insulator, LEFT

3.5 LITER, 2011-16

$5.55 $4.06
2 16523-AD010 16523-AD010 / Radiator Assembly Upper Insulator

Radiator Upper Insulator, RIGHT

3.5 LITER, 2011-16

$5.55 $4.06
3 16535-0A090 16535-0A090 / Radiator Assembly Lower Insulator

Radiator Lower Support, LEFT

3.5 LITER, 2011-16

$9.37 $6.87
3 16535-0A090 16535-0A090 / Radiator Assembly Lower Insulator

Radiator Lower Support, RIGHT

3.5 LITER, 2011-16

$9.37 $6.87
4 16417-21280 16417-21280 / Drain Plug

Radiator Drain Plug

3.5 LITER, 2011-16

$5.34 $3.92
5 16492-21050 16492-21050 / Drain Plug O-Ring

Radiator Packing

3.5 LITER, 2011-16

$3.05 $2.23
6 16401-31480 16401-31480 / Radiator Cap

3.5 LITER, 2011-16

$16.61 $12.19
7 16571-0P230 16571-0P230 / Upper Hose

3.5 LITER, 2011-16

$23.08 $16.92
8 96136-44301 96136-44301 / Hose Clamp

Upper Hose Clamp

3.5 LITER, 2011-16

$10.46 $7.67
9 16331-31140 16331-31140 / Water Outlet

3.5 LITER, 2011-16, W/O TOWING PACKAGE

$66.14 $48.51
9 16331-31200 16331-31200 / Water Outlet

3.5 LITER, 2011-16, W/TOWING PACKAGE, TYPE B

$87.17 $63.94
9 16331-31150 16331-31150 / Water Outlet

3.5 LITER, 2011-16, W/TOWING PACKAGE, TYPE A

$97.43 $71.47
10 16341-AD010 16341-AD010 / Water Outlet Gasket

3.5 LITER, 2011-16

$7.93 $5.82
11 16261-0P030 16261-0P030 / By-Pass Hose

3.5 LITER, 2011-16

$10.58 $7.76
12 16572-0P240 16572-0P240 / Lower Hose

3.5 LITER, 2011-16

$23.08 $16.92
13 96136-44301 96136-44301 / Hose Clamp

Lower Hose Clamp

3.5 LITER, 2011-16

$10.46 $7.67
14 16321-0P010 16321-0P010 / Water Inlet

Water Inlet Pipe

3.5 LITER, 2011-16

$35.34 $25.93
15 90916-A3002 90916-A3002 / Thermostat

3.5 LITER, 2011-16

$23.99 $17.59
16 16325-62010 16325-62010 / Thermostat Gasket

3.5 LITER, 2011-16

$6.44 $4.72
17 16323-0P030 16323-0P030 / Thermostat Housing

Thermostat Hsng

3.5 LITER, 2011-16

$76.40 $56.03
18 16470-0P040 16470-0P040 / Reservoir Tank

3.5 LITER, 2011-16

$90.74 $66.55
19 90480-17028 90480-17028 / Reservoir Tank Grommet

3.5 LITER, 2011-16

$3.10 $2.28
20 90099-04620 90099-04620 / Reservoir Tank Bolt

3.5 LITER, 2011-16

$2.36 $1.73
21 16405-0P040 16405-0P040 / Reservoir Cap

3.5 LITER, 2011-16

$14.91 $10.94
22 16377-0P090 16377-0P090 / Reservoir Hose

3.5 LITER, 2011-16

$13.30 $9.76
23 90068-35004 90068-35004 / Reservoir Hose Clamp

3.5 LITER, 2011-16

$5.92 $4.34
