FRONT SUSPENSION/SUSPENSION COMPONENTS for 2016 Toyota Prius

Select SUSPENSION COMPONENTS Part

2016 Toyota Prius

Change vehicle

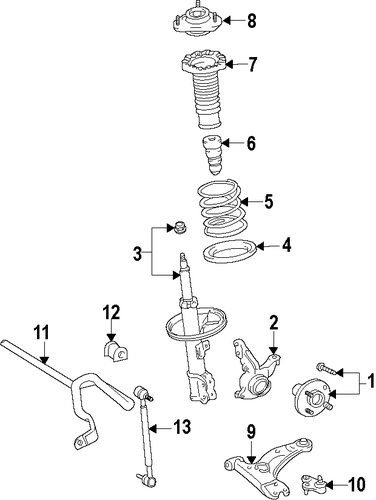

FRONT SUSPENSION/SUSPENSION COMPONENTS for 2016 Toyota Prius #1
No. Part # Part # / Description List Price Price
layer_1 51201-47070 51201-47070 / Cross-Member

PRIUS

$1,662.99 $1,219.73
layer_2 48824-47020 48824-47020 / Stabilizer Bar Bracket

Bushing Bracket

PRIUS

$27.44 $20.13
1 43550-47020 43550-47020 / Hub Assembly

Front Hub & Bearing

PRIUS

$338.92 $248.59
2 43212-47040 43212-47040 / Knuckle

PRIUS; LEFT

$251.70 $184.61
2 43211-47040 43211-47040 / Knuckle

PRIUS; RIGHT

$251.70 $184.61
3 48510-80813 48510-80813 / Strut

PRIUS; RIGHT; MARKED 48510-47160

$133.58 $97.98
3 48510-80814 48510-80814 / Strut

PRIUS; RIGHT; MARKED 48510-47290

$133.58 $97.98
3 48520-80490 48520-80490 / Strut

PRIUS; LEFT; MARKED 48520-47290

$133.58 $97.98
3 48520-80489 48520-80489 / Strut

PRIUS; LEFT; MARKED 48520-47160

$133.58 $97.98
4 48158-47020 48158-47020 / Lower Insulator

Lower Spring Insulator

PRIUS

$16.75 $12.29
5 48131-47180 48131-47180 / Coil Spring

PRIUS

$70.56 $51.75
6 48331-47030 48331-47030 / Strut Bumper

PRIUS

$8.68 $6.37
7 48045-47010 48045-47010 / Upper Insulator

Spring Seat

PRIUS

$21.92 $16.08
8 48609-47060 48609-47060 / Strut Mount

PRIUS

$117.17 $85.94
9 48069-47060 48069-47060 / Lower Control Arm

PRIUS; LEFT

$200.07 $146.74
9 48068-47060 48068-47060 / Lower Control Arm

PRIUS; RIGHT

$200.07 $146.74
10 43330-19115 43330-19115 / Lower Ball Joint

PRIUS

$59.47 $43.62
11 48811-47080 48811-47080 / Stabilizer Bar

PRIUS

$110.71 $81.20
12 48815-47040 48815-47040 / Stabilizer Bar Bushing

Bushings

PRIUS

$16.29 $11.94
13 48820-47040 48820-47040 / Stabilizer Link

Link

PRIUS

$119.18 $87.41

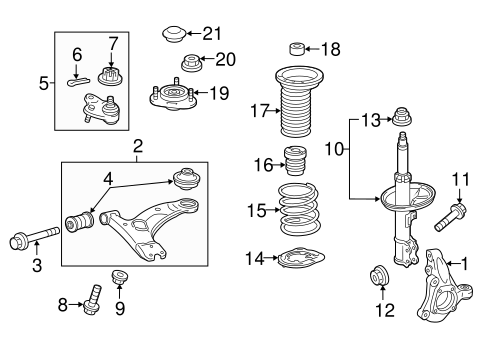

No. Part # Part # / Description List Price Price
1 43212-47040 43212-47040 / Knuckle

Knuckle, LEFT

$251.70 $184.61
1 43211-47040 43211-47040 / Knuckle

Knuckle, RIGHT

$251.70 $184.61
2 48069-47060 48069-47060 / Lower Control Arm

Lower Control Arm, LEFT

$200.07 $146.74
2 48068-47060 48068-47060 / Lower Control Arm

Lower Control Arm, RIGHT

$200.07 $146.74
3 90105-16091 90105-16091 / Lower Control Arm Mount Bolt

Lower Control Arm Mount Bolt, LEFT

$6.75 $4.95
3 90105-16091 90105-16091 / Lower Control Arm Mount Bolt

Lower Control Arm Mount Bolt, RIGHT

$6.75 $4.95
5 43330-19115 43330-19115 / Lower Ball Joint

Lower Ball Joint, LEFT

$59.47 $43.62
5 43330-19115 43330-19115 / Lower Ball Joint

Lower Ball Joint, RIGHT

$59.47 $43.62
6 95381-02525 95381-02525 / Ball Joint Cotter Pin

Lower Ball Joint Cotter Pin, LEFT

$1.03 $0.76
6 95381-02525 95381-02525 / Ball Joint Cotter Pin

Lower Ball Joint Cotter Pin, RIGHT

$1.03 $0.76
7 90080-17214 90080-17214 / Lower Ball Joint Castle Nut

Lower Ball Joint Castle Nut, LEFT

$3.25 $2.38
7 90080-17214 90080-17214 / Lower Ball Joint Castle Nut

Lower Ball Joint Castle Nut, RIGHT

$3.25 $2.38
8 90105-A0227 90105-A0227 / Lower Ball Joint Mount Bolt

Lower Ball Joint Bolt, RIGHT

$1.64 $1.20
8 90105-A0227 90105-A0227 / Lower Ball Joint Mount Bolt

Lower Ball Joint Bolt, LEFT

$1.64 $1.20
9 90178-A0094 90178-A0094 / Ball Joint Nut

Lower Ball Joint Nut, RIGHT

$1.58 $1.16
9 90178-A0094 90178-A0094 / Ball Joint Nut

Lower Ball Joint Nut, LEFT

$1.58 $1.16
10 48520-80489 48520-80489 / Strut

Strut, LEFT

W/O PRIME, W/O TOURING

$133.58 $97.98
10 48510-80813 48510-80813 / Strut

Strut, RIGHT

W/O PRIME, W/O TOURING

$133.58 $97.98
11 90105-17010 90105-17010 / Knuckle Bolt

Strut Mount Bolt, LEFT

OD=15

$5.98 $4.38
11 90080-10335 90080-10335 / Strut Mount Bolt

Strut Mount Bolt, RIGHT

OD=17

$12.38 $9.09
11 90105-17009 90105-17009 / Knuckle Bolt

Strut Mount Bolt, RIGHT

OD=15.9

$5.98 $4.38
11 90105-17011 90105-17011 / Knuckle Bolt

Strut Mount Bolt, LEFT

OD=14

$5.06 $3.71
11 90105-17011 90105-17011 / Knuckle Bolt

Strut Mount Bolt, RIGHT

OD=14

$5.06 $3.71
11 90080-10335 90080-10335 / Strut Mount Bolt

Strut Mount Bolt, LEFT

OD=17

$12.38 $9.09
11 90105-17009 90105-17009 / Knuckle Bolt

Strut Mount Bolt, LEFT

OD=15.9

$5.98 $4.38
11 90105-17010 90105-17010 / Knuckle Bolt

Strut Mount Bolt, RIGHT

OD=15

$5.98 $4.38
12 90178-17002 90178-17002 / Strut Nut

Strut Nut, LEFT

$2.27 $1.66
12 90178-17002 90178-17002 / Strut Nut

Strut Nut, RIGHT

$2.27 $1.66
13 90177-14007 90177-14007 / Top Nut

Top Nut, LEFT

$1.67 $1.22
13 90177-14007 90177-14007 / Top Nut

Top Nut, RIGHT

$1.67 $1.22
14 48158-47020 48158-47020 / Lower Insulator

Lower Insulator, RIGHT

$16.75 $12.29
14 48158-47020 48158-47020 / Lower Insulator

Lower Insulator, LEFT

$16.75 $12.29
15 48131-47180 48131-47180 / Coil Spring

Spring, LEFT

$70.56 $51.75
15 48131-47180 48131-47180 / Coil Spring

Spring, RIGHT

$70.56 $51.75
16 48331-47030 48331-47030 / Strut Bumper

Bumper, RIGHT

$8.68 $6.37
16 48331-47030 48331-47030 / Strut Bumper

Bumper, LEFT

$8.68 $6.37
17 48045-47010 48045-47010 / Upper Insulator

Upper Insulator, LEFT

$21.92 $16.08
17 48045-47010 48045-47010 / Upper Insulator

Upper Insulator, RIGHT

$21.92 $16.08
18 90387-15033 90387-15033 / Collar

Collar, RIGHT

$5.09 $3.73
18 90387-15033 90387-15033 / Collar

Collar, LEFT

$5.09 $3.73
19 48609-47060 48609-47060 / Strut Mount

Strut Mount, LEFT

$117.17 $85.94
19 48609-47060 48609-47060 / Strut Mount

Strut Mount, RIGHT

$117.17 $85.94
20 90178-A0077 90178-A0077 / Strut Mount Nut

Strut Mount Nut, RIGHT

$1.35 $0.99
20 90178-A0077 90178-A0077 / Strut Mount Nut

Strut Mount Nut, LEFT

$1.35 $0.99
21 48684-52010 48684-52010 / Top Cap

Cover, LEFT

$14.74 $10.81
21 48684-52010 48684-52010 / Top Cap

Cover, RIGHT

$14.74 $10.81
