COOLING SYSTEM/RADIATOR & COMPONENTS for 2016 Toyota Prius

Select RADIATOR & COMPONENTS Part

2016 Toyota Prius

Change vehicle

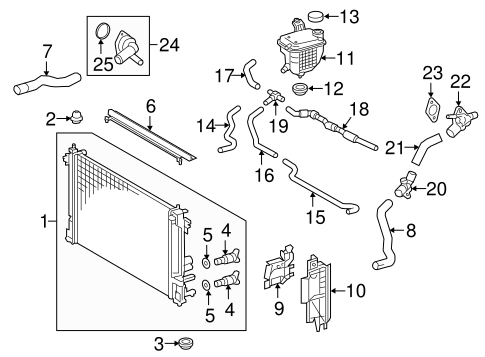

No. Part # Part # / Description List Price Price
1 16400-37310 16400-37310 / Radiator

$318.38 $233.52
2 16523-37010 16523-37010 / Radiator Upper Insulator

Radiator Upper Insulator, LEFT

$5.83 $4.28
2 16523-37010 16523-37010 / Radiator Upper Insulator

Radiator Upper Insulator, RIGHT

$5.83 $4.28
3 90480-40021 90480-40021 / Radiator Lower Insulator

Radiator Lower Insulator, LEFT

$8.45 $6.20
3 90480-40021 90480-40021 / Radiator Lower Insulator

Radiator Lower Insulator, RIGHT

$8.45 $6.20
4 16417-21280 16417-21280 / Drain Plug

Radiator Drain Plug

$5.34 $3.92
5 16492-21050 16492-21050 / Drain Plug O-Ring

Radiator O-Ring

$3.05 $2.23
6 16594-37010 16594-37010 / Air Guide

$26.75 $19.62
7 16572-37210 16572-37210 / Inlet Hose

$18.39 $13.49
8 16571-37210 16571-37210 / Outlet Hose

$19.48 $14.29
9 16563-37010 16563-37010 / Side Seal

Side Seal, LEFT

$14.80 $10.86
9 16562-37010 16562-37010 / Side Seal

Side Seal, RIGHT

$14.80 $10.86
10 16593-37020 16593-37020 / Lower Air Guide

Lower Air Guide, RIGHT

$29.91 $21.94
10 16595-37030 16595-37030 / Lower Air Guide

Lower Air Guide, LEFT

$32.32 $23.70
11 164A2-37011 164A2-37011 / Expansion Tank

Reserve Tank

$75.37 $55.28
12 90480-18010 90480-18010 / Reservoir Tank Grommet

Reserve Tank Grommet

$3.33 $2.44
13 16475-37011 16475-37011 / Cap

Radiator Cap

$23.47 $17.21
14 16261-37150 16261-37150 / By-Pass Hose

#1

$19.53 $14.32
15 16264-37120 16264-37120 / By-Pass Hose

#2

$19.53 $14.32
16 16267-37090 16267-37090 / By-Pass Hose

#3

$10.49 $7.69
17 16281-37100 16281-37100 / By-Pass Hose

#4

$6.82 $5.00
18 16296-37010 16296-37010 / By-Pass Hose

#5

$19.53 $14.32
19 16268-37100 16268-37100 / By-Pass Pipe

$6.55 $4.81
20 16577-37080 16577-37080 / Water Pipe

$19.14 $14.03
21 16573-37020 16573-37020 / Water Hose

$13.36 $9.80
22 16331-37100 16331-37100 / Water Outlet

$37.15 $27.24
23 16341-37010 16341-37010 / Water Outlet Gasket

$3.71 $2.72
24 16031-37010 16031-37010 / Water Inlet

$46.29 $33.95
25 16326-37020 16326-37020 / Thermostat Hsng Gasket

Water Inlet Gasket

$4.91 $3.60
COOLING SYSTEM/RADIATOR & COMPONENTS for 2016 Toyota Prius #2
No. Part # Part # / Description List Price Price
2 16571-37210 16571-37210 / Outlet Hose

Upper Hose

PRIUS

$19.48 $14.29
3 16572-37210 16572-37210 / Inlet Hose

Lower Hose

PRIUS

$18.39 $13.49
4 164A2-37011 164A2-37011 / Expansion Tank

PRIUS

$75.37 $55.28
5 16475-37011 16475-37011 / Cap

EXPANSION TANK CAP; PRIUS

$23.47 $17.21
6 16031-37010 16031-37010 / Water Inlet

PRIUS

$46.29 $33.95
7 16326-37020 16326-37020 / Thermostat Hsng Gasket

Thermostat Gasket

PRIUS

$4.91 $3.60
9 16271-37020 16271-37020 / Gasket

PRIUS

$7.17 $5.26
10 16361-37070 16361-37070 / Fan Blade

PRIUS; RIGHT

$104.59 $76.71
10 16361-37060 16361-37060 / Fan Blade

PRIUS; LEFT

$81.52 $59.79
11 16711-37160 16711-37160 / Fan Shroud

PRIUS

$94.96 $69.65
12 16363-36160 16363-36160 / Fan Motor

PRIUS; RIGHT

$178.37 $130.82
12 16363-37060 16363-37060 / Fan Motor

PRIUS; LEFT

$218.55 $160.30
