FRONT SUSPENSION/SUSPENSION COMPONENTS for 2016 Toyota Prius V

Select SUSPENSION COMPONENTS Part

2016 Toyota Prius V

Change vehicle

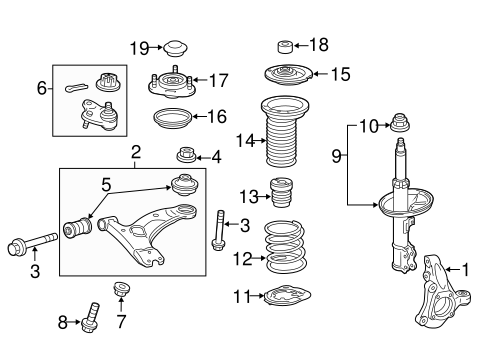

FRONT SUSPENSION/SUSPENSION COMPONENTS for 2016 Toyota Prius V #1
No. Part # Part # / Description List Price Price
N/A 51201-12442 51201-12442 / Cross-Member

PRIUS V

$1,692.62 $1,269.47
N/A 48619-28010 48619-28010 / Strut Bearing

PRIUS V

$20.54 $15.41
1 43550-0R010 43550-0R010 / Front Hub & Bearing

PRIUS V

$335.73 $251.80
2 43211-12460 43211-12460 / Knuckle

PRIUS V; RIGHT

$264.88 $198.66
2 43212-12410 43212-12410 / Knuckle

PRIUS V; LEFT

$264.88 $198.66
3 48510-80755 48510-80755 / Strut

PRIUS V; RIGHT

$133.67 $100.25
3 48520-80432 48520-80432 / Strut

PRIUS V; LEFT

$133.67 $100.25
4 48158-42010 48158-42010 / Lower Seat

Lower Spring Insulator

PRIUS V

$17.96 $13.47
5 48131-47290 48131-47290 / Coil Spring

PRIUS V

$78.37 $58.78
6 48331-21030 48331-21030 / Strut Bumper

PRIUS V

$13.27 $9.95
7 48157-47020 48157-47020 / Upper Insulator

Upper Spring Insulator

PRIUS V

$28.67 $21.50
8 48471-0R010 48471-0R010 / Spring Seat

PRIUS V

$21.15 $15.86
9 48609-47040 48609-47040 / Strut Mount

PRIUS V

$115.50 $86.63
10 48069-12300 48069-12300 / Lower Control Arm

PRIUS V; LEFT

$208.01 $156.01
10 48068-12300 48068-12300 / Lower Control Arm

PRIUS V; RIGHT

$208.01 $156.01
11 43330-19245 43330-19245 / Lower Ball Joint

PRIUS V

$65.53 $49.15
12 48811-12A40 48811-12A40 / Stabilizer Bar

PRIUS V

$105.94 $79.46
13 48815-64021 48815-64021 / Stabilizer Bar Bracket Assembly

Bushings

PRIUS V; LEFT

$26.95 $20.21
13 48815-64011 48815-64011 / Stabilizer Bar Bracket Assembly

Bushings

PRIUS V; RIGHT; FROM 5/15

$26.95 $20.21
14 48820-47030 48820-47030 / Stabilizer Link

Link

PRIUS V

$117.86 $88.40
No. Part # Part # / Description List Price Price
1 43211-12460 43211-12460 / Knuckle

Knuckle, RIGHT

$264.88 $198.66
1 43212-12410 43212-12410 / Knuckle

Knuckle, LEFT

$264.88 $198.66
2 48069-12300 48069-12300 / Lower Control Arm

Lower Control Arm, LEFT

$208.01 $156.01
2 48068-12300 48068-12300 / Lower Control Arm

Lower Control Arm, RIGHT

$208.01 $156.01
3 90105-16090 90105-16090 / Lower Control Arm Mount Bolt

Lower Control Arm Mount Bolt, LEFT

$6.67 $5.00
3 90105-16090 90105-16090 / Lower Control Arm Mount Bolt

Lower Control Arm Mount Bolt, RIGHT

$6.67 $5.00
4 90178-A0098 90178-A0098 / Lower Ball Joint Nut

Lower Control Arm Nut, RIGHT

$2.21 $1.66
4 90178-A0098 90178-A0098 / Lower Ball Joint Nut

Lower Control Arm Nut, LEFT

$2.21 $1.66
6 43330-19245 43330-19245 / Lower Ball Joint

Lower Ball Joint, LEFT

$65.53 $49.15
6 43330-19245 43330-19245 / Lower Ball Joint

Lower Ball Joint, RIGHT

$65.53 $49.15
7 90178-A0094 90178-A0094 / Lower Ball Joint Nut

Lower Ball Joint Nut, RIGHT

$1.58 $1.19
7 90178-A0094 90178-A0094 / Lower Ball Joint Nut

Lower Ball Joint Nut, LEFT

$1.58 $1.19
8 90105-A0227 90105-A0227 / Lower Ball Joint Bolt

Lower Ball Joint Bolt, LEFT

$1.61 $1.21
8 90105-A0227 90105-A0227 / Lower Ball Joint Bolt

Lower Ball Joint Bolt, RIGHT

$1.61 $1.21
9 48510-80755 48510-80755 / Strut

Strut, RIGHT

$133.67 $100.25
9 48520-80432 48520-80432 / Strut

Strut, LEFT

$133.67 $100.25
10 90177-14005 90177-14005 / Top Nut

Top Nut, RIGHT

$1.61 $1.21
10 90177-14005 90177-14005 / Top Nut

Top Nut, LEFT

$1.61 $1.21
11 48158-42010 48158-42010 / Lower Seat

Lower Insulator, RIGHT

$17.96 $13.47
11 48158-42010 48158-42010 / Lower Seat

Lower Insulator, LEFT

$17.96 $13.47
12 48131-47290 48131-47290 / Coil Spring

Spring, LEFT

$78.37 $58.78
12 48131-47290 48131-47290 / Coil Spring

Spring, RIGHT

$78.37 $58.78
13 48331-21030 48331-21030 / Strut Bumper

Bumper, LEFT

$13.27 $9.95
13 48331-21030 48331-21030 / Strut Bumper

Bumper, RIGHT

$13.27 $9.95
14 48157-47020 48157-47020 / Upper Insulator

Upper Insulator, RIGHT

$28.67 $21.50
14 48157-47020 48157-47020 / Upper Insulator

Upper Insulator, LEFT

$28.67 $21.50
15 48471-0R010 48471-0R010 / Spring Seat

Upper Seat, LEFT

$21.15 $15.86
15 48471-0R010 48471-0R010 / Spring Seat

Upper Seat, RIGHT

$21.15 $15.86
16 48619-28010 48619-28010 / Strut Bearing

Bearing, LEFT

$20.54 $15.41
16 48619-28010 48619-28010 / Strut Bearing

Bearing, RIGHT

$20.54 $15.41
17 48609-47040 48609-47040 / Strut Mount

Strut Mount, LEFT

$115.50 $86.63
17 48609-47040 48609-47040 / Strut Mount

Strut Mount, RIGHT

$115.50 $86.63
18 90387-15033 90387-15033 / Collar

Collar, LEFT

$5.03 $3.77
18 90387-15033 90387-15033 / Collar

Collar, RIGHT

$5.03 $3.77
19 48684-42010 48684-42010 / Cover

Cover, LEFT

TYPE A

$19.39 $14.54
19 48684-42010 48684-42010 / Cover

Cover, RIGHT

TYPE A

$19.39 $14.54
19 48684-0R010 48684-0R010 / Cover

Cover, LEFT

TYPE B

$21.81 $16.36
19 48684-0R010 48684-0R010 / Cover

Cover, RIGHT

TYPE B

$21.81 $16.36
