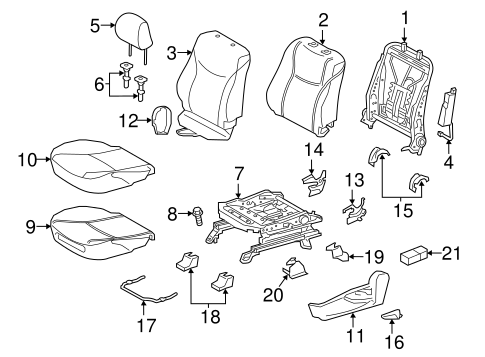

BODY/DRIVER SEAT COMPONENTS for 2016 Toyota Prius V

Select DRIVER SEAT COMPONENTS Part

2016 Toyota Prius V

Change vehicle

No. Part # Part # / Description List Price Price
1 71640-47100 71640-47100 / Seat Back Frame

W/O HEATER

$424.43 $311.31
2 71552-47130 71552-47130 / Seat Back Pad

W/O HEATER

$160.93 $118.04
3 71074-47700-C3 71074-47700-C3 / Seat Back Cover

W/O HEATER, BLACK

$379.27 $278.17
3 71074-47700-B3 71074-47700-B3 / Seat Back Cover

W/O HEATER, ASH

$379.27 $278.17
5 71910-47310-C1 71910-47310-C1 / Headrest

W/O HEATER, BLACK

$438.57 $321.68
5 71910-47310-B2 71910-47310-B2 / Headrest

W/O HEATER, ASH

$438.57 $321.68
6 71930-47020-C0 71930-47020-C0 / Headrest Guide

W/O HEATER, LOCKING, BLACK

$15.20 $11.15
6 71931-47020-C0 71931-47020-C0 / Headrest Guide

W/O HEATER, NON LOCKING, BLACK

$9.22 $6.76
7 71620-47320 71620-47320 / Seat Frame

W/O HEATER

$445.67 $326.87
9 71512-47090 71512-47090 / Seat Cushion Pad

W/O HEATER

$197.36 $144.75
10 71072-47690-B3 71072-47690-B3 / Cushion Cover

W/O HEATER, ASH

$260.89 $191.36
10 71072-47690-C2 71072-47690-C2 / Cushion Cover

W/O HEATER, BLACK

$260.89 $191.36
11 71812-47100-C0 71812-47100-C0 / Cushion Shield

W/O HEATER, OUTER, BLACK

$93.38 $68.49
12 71862-47040-C0 71862-47040-C0 / Cushion Shield

W/O HEATER, INNER, BLACK

$48.93 $35.89
13 71538-47010-C0 71538-47010-C0 / Recline Cover

W/O HEATER, LOWER OUTER, BLACK

$13.02 $9.55
14 71537-47010-C0 71537-47010-C0 / Recline Cover

W/O HEATER, LOWER INNER, BLACK

$13.02 $9.55
15 71875-47030-C0 71875-47030-C0 / Recline Cover

W/O HEATER, UPPER INNER, BLACK

$5.86 $4.29
16 72526-47010-C0 72526-47010-C0 / Recline Handle

W/O HEATER, BLACK

$12.58 $9.24
17 72211-47020 72211-47020 / Adjust Bar

Adjust Handle

W/O HEATER

$26.55 $19.47
18 72128-47010-C0 72128-47010-C0 / Track End Cover

W/O HEATER, FRONT, INNER

$14.65 $10.75

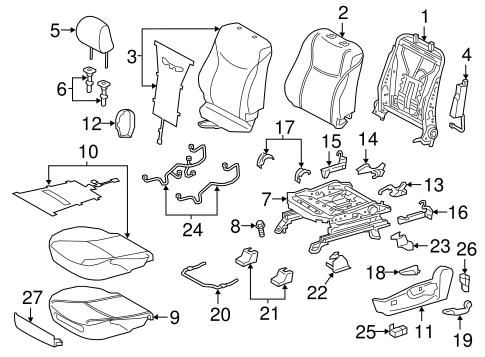

BODY/DRIVER SEAT COMPONENTS for 2016 Toyota Prius V #2
No. Part # Part # / Description List Price Price
1 71640-47140 71640-47140 / Seat Back Frame

W/HEATER

$618.98 $454.00
2 71552-47200 71552-47200 / Seat Back Pad

W/HEATER

$160.93 $118.04
3 71074-47690-E3 71074-47690-E3 / Seat Back Cover

W/HEATER, BISQUE

$640.16 $469.53
3 71074-47690-C5 71074-47690-C5 / Seat Back Cover

W/HEATER, BLACK

$640.16 $469.53
3 71074-47690-B5 71074-47690-B5 / Seat Back Cover

W/HEATER, ASH

$640.16 $469.53
5 71910-47330-C3 71910-47330-C3 / Headrest

W/HEATER, BLACK

$438.57 $321.68
5 71910-47330-E2 71910-47330-E2 / Headrest

W/HEATER, BISQUE

$438.57 $321.68
5 71910-47330-B2 71910-47330-B2 / Headrest

W/HEATER, ASH

$438.57 $321.68
6 71931-47020-E0 71931-47020-E0 / Headrest Guide

W/HEATER, NON LOCKING, BISQUE

$9.22 $6.76
6 71930-47020-E0 71930-47020-E0 / Headrest Guide

W/HEATER, LOCKING, BISQUE

$15.20 $11.15
6 71930-47020-B0 71930-47020-B0 / Headrest Guide

W/HEATER, LOCKING, ASH

$15.20 $11.15
6 71931-47020-B0 71931-47020-B0 / Headrest Guide

W/HEATER, NON LOCKING, ASH

$9.22 $6.76
7 71620-47230 71620-47230 / Seat Frame

W/HEATER

$1,156.59 $848.31
8 90119-A0304 90119-A0304 / Seat Frame Mount Bolt

W/HEATER

$1.26 $0.93
9 71512-47130 71512-47130 / Seat Cushion Pad

W/HEATER

$197.71 $145.01
10 71072-47700-B2 71072-47700-B2 / Cushion Cover

W/HEATER, ASH

$497.64 $365.00
10 71072-47700-E0 71072-47700-E0 / Cushion Cover

W/HEATER, BISQUE

$497.64 $365.00
10 71072-47700-C2 71072-47700-C2 / Cushion Cover

W/HEATER, BLACK

$497.64 $365.00
11 71812-0R080-C0 71812-0R080-C0 / Cushion Shield

W/HEATER, OUTER, BLACK

$82.78 $60.72
11 71812-47120-E0 71812-47120-E0 / Cushion Shield

W/HEATER, OUTER, BISQUE

$93.72 $68.75
12 71862-76010-E0 71862-76010-E0 / Cushion Shield

W/HEATER, INNER, BISQUE

$59.07 $43.32
12 71862-76010-C0 71862-76010-C0 / Cushion Shield

W/HEATER, INNER, BLACK

- -
13 71538-52050-E0 71538-52050-E0 / Cushion Shield

Protector

W/HEATER, UPPER OUTER, BISQUE

$12.13 $8.89
13 71538-52050-C0 71538-52050-C0 / Recline Cover

Protector

W/HEATER, UPPER OUTER, BLACK

$12.13 $8.89
14 71537-47010-E0 71537-47010-E0 / Cushion Shield

Protector

W/HEATER, UPPER INNER, BISQUE

$13.02 $9.55
14 71537-47010-C0 71537-47010-C0 / Recline Cover

Protector

W/HEATER, UPPER INNER, BLACK

$13.02 $9.55
15 71874-60110 71874-60110 / Lower Shield

Protector

W/HEATER, LOWER OUTER

$14.05 $10.31
16 71873-60030 71873-60030 / Lower Shield

Protector

W/HEATER, LOWER INNER

$15.66 $11.48
17 71876-47030-E0 71876-47030-E0 / Recline Cover

W/HEATER, OUTER, BISQUE

$5.86 $4.29
17 71876-47030-C0 71876-47030-C0 / Recline Cover

W/HEATER, OUTER, BLACK

$5.86 $4.29
17 71875-60210-C0 71875-60210-C0 / Recline Cover

W/HEATER, INNER, BLACK

$5.09 $3.73
17 71875-60210-E4 71875-60210-E4 / Recline Cover

W/HEATER, INNER, BISQUE

$5.09 $3.73
19 72495-47010-C0 72495-47010-C0 / Adjust Handle

W/HEATER, VERTICAL, BLACK

$57.67 $42.30
21 72124-47020-C0 72124-47020-C0 / Track End Cover

W/HEATER, FRONT, OUTER

$15.49 $11.36
22 72158-47050-C0 72158-47050-C0 / Track End Cover

W/HEATER, REAR, OUTER

$22.96 $16.84
23 72138-47050-C0 72138-47050-C0 / Track End Cover

W/HEATER, REAR, INNER

$20.69 $15.18
24 8219B-47030 8219B-47030 / Wire Harness

W/HEATER, REAR

$35.23 $25.84
24 82192-47050 82192-47050 / Wire Harness

W/HEATER, FRONT

$136.31 $99.98
25 84922-60180 84922-60180 / Seat Switch

W/HEATER, ALL

$158.80 $116.47
25 84922-60180 84922-60180 / Seat Switch

Switch

PRIUS V

$158.80 $116.47
26 84920-60090-E4 84920-60090-E4 / Lumbar Switch

W/HEATER, BISQUE

$72.15 $52.91
26 84920-60090-C0 84920-60090-C0 / Lumbar Switch

W/HEATER, BLACK

$72.15 $52.91
27 71868-60050-E7 71868-60050-E7 / Front Cover

Front Shield

W/HEATER, BISQUE

$55.54 $40.74
27 71868-60050-C0 71868-60050-C0 / Front Shield

W/HEATER, BLACK

$55.54 $40.74
