BRAKES/HYDRAULIC SYSTEM for 2016 Toyota Highlander

Select HYDRAULIC SYSTEM Part

2016 Toyota Highlander

Change vehicle

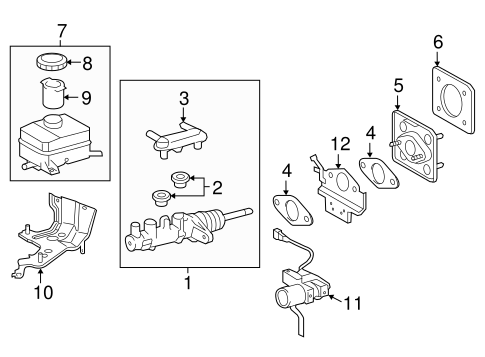

No. Part # Part # / Description List Price Price
1 47201-48210 47201-48210 / Master Cylinder

HIGHLANDER; W/HYBRID

$159.13 $116.72
2 47255-16010 47255-16010 / Reservoir Assembly Grommet

Master Cylinder Grommet

W/HYBRID ENGINE

$11.78 $8.64
3 90015-AM003 90015-AM003 / Master Cylinder Union

W/HYBRID ENGINE

$3.56 $2.61
4 47276-30040 47276-30040 / Mount Bracket

W/HYBRID ENGINE

$42.61 $31.26
5 44785-0E020 44785-0E020 / Mount Bracket Gasket

W/HYBRID ENGINE

$6.26 $4.60
6 47220-48220 47220-48220 / Master Cylinder Reservoir

Reservoir Assembly

W/HYBRID ENGINE

$136.10 $99.83
6 47220-48220 47220-48220 / Master Cylinder Reservoir

HIGHLANDER; W/HYBRID

$136.10 $99.83
7 47230-58010 47230-58010 / Reservoir Cap

W/HYBRID ENGINE

$18.88 $13.85
8 47299-48180 47299-48180 / Strainer

W/HYBRID ENGINE

$9.60 $7.04
9 47233-48140 47233-48140 / Mount Bracket

W/HYBRID ENGINE

$47.35 $34.73
10 47207-48070 47207-48070 / Cylinder

BRAKE STROKE SIMULATOR; HIGHLANDER; W/HYBRID

$210.90 $154.68
11 47273-48010 47273-48010 / Cylinder Bracket

W/HYBRID ENGINE

$21.49 $15.76
No. Part # Part # / Description List Price Price
1 44050-48320 44050-48320 / Modulator Valve

Actuator

W/HYBRID ENGINE

$2,678.06 $2,286.78
1 44050-48320 44050-48320 / Modulator Valve

HIGHLANDER; HYBRID LIMITED

$2,678.06 $2,286.78
2 44553-0E010 44553-0E010 / Tube

W/HYBRID ENGINE

$11.44 $8.38
3 44590-48220 44590-48220 / Upper Bracket

W/HYBRID ENGINE

$18.96 $13.91
4 90561-08061 90561-08061 / Bracket Spacer

Upper Bracket Spacer

W/HYBRID ENGINE

$2.47 $1.82
5 44547-50120 44547-50120 / Bracket Cushion

Upper Bracket Cushion

W/HYBRID ENGINE

$2.24 $1.65
6 44590-48210 44590-48210 / Lower Bracket

W/HYBRID ENGINE

$19.65 $14.42
7 90561-08061 90561-08061 / Bracket Spacer

Lower Bracket Spacer

W/HYBRID ENGINE

$2.47 $1.82
8 44547-50120 44547-50120 / Bracket Cushion

Lower Bracket Cushion

W/HYBRID ENGINE

$2.24 $1.65
9 44590-48180 44590-48180 / Mount Bracket

W/HYBRID ENGINE

$73.93 $54.23
10 90178-A0023 90178-A0023 / Fan Blade Nut

Mount Bracket Nut

W/HYBRID ENGINE

$0.95 $0.70
11 47070-48060 47070-48060 / Pump Assembly

BRAKE BOOSTER PUMP ASSY; HIGHLANDER; W/HYBRID

$1,869.90 $1,371.49
12 47965-24010 47965-24010 / Mount Bracket Bushing

Pump Assembly Bushing

W/HYBRID ENGINE

$5.17 $3.79
13 47962-60090 47962-60090 / Actuator Assembly Collar

Pump Assembly Collar

W/HYBRID ENGINE

$1.58 $1.16
14 82711-3F290 82711-3F290 / Pump Assembly Clamp

W/HYBRID ENGINE

$1.67 $1.22
15 44571-48090 44571-48090 / Reservoir Hose

W/HYBRID ENGINE, UPPER

$11.92 $8.75
16 44572-48020 44572-48020 / Reservoir Hose

W/HYBRID ENGINE, LOWER

$13.25 $9.71
17 89540-48370 89540-48370 / Computer

W/HYBRID ENGINE, SKID CONTROL

$1,251.93 $1,069.01
18 896C0-48010 896C0-48010 / Control Module

W/HYBRID ENGINE, BRAKE POWER SUPPLY

$799.36 $586.30
19 89180-48080 89180-48080 / Yaw Rate Sensor

Yaw Sensor

W/HYBRID ENGINE

$934.95 $685.75
19 89180-48080 89180-48080 / Yaw Rate Sensor

HIGHLANDER; W/HYBRID

$934.95 $685.75
20 89510-47050 89510-47050 / Sensor

W/HYBRID ENGINE, PEDAL STROKE

$213.42 $156.54
21 86652-50010 86652-50010 / Buzzer Switch

W/HYBRID ENGINE

$62.72 $46.01
21 86652-50010 86652-50010 / Buzzer Switch

Buzzer

HIGHLANDER

$62.72 $46.01
