HVAC/SWITCHES & SENSORS for 2016 Scion iM

Select SWITCHES & SENSORS Part

2016 Scion iM

Change vehicle

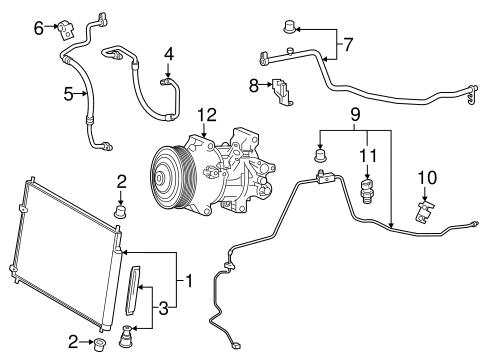

No. Part # Part # / Description List Price Price
1 88450-12340 88450-12340 / Condenser Assembly

$314.15 $230.42
1 88450-12340 88450-12340 / Condenser Assembly

Condenser

IM

$314.15 $230.42
2 16716-28010 16716-28010 / Condenser Assembly Cushion

Condenser Assembly Insulator

$3.25 $2.38
3 88474-12010 88474-12010 / Dehydrator

$98.26 $72.08
3 88474-12010 88474-12010 / Dehydrator

Drier

IM

$98.26 $72.08
4 88703-12A50 88703-12A50 / Discharge Hose

$98.39 $72.16
5 88704-12A50 88704-12A50 / Suction Hose

$136.44 $100.06
5 88704-12A50 88704-12A50 / Suction Hose

Expansion Valve

IM

$136.44 $100.06
6 88718-1E040 88718-1E040 / Bracket

Suction Hose Clamp

$6.29 $4.61
7 88707-12390 88707-12390 / Suction Pipe

$76.11 $55.83
8 88688-1E590 88688-1E590 / Suction Pipe Clamp

$25.76 $18.89
9 88710-12A50 88710-12A50 / Liquid Line

$202.42 $148.46
10 88718-1E040 88718-1E040 / Bracket

Liquid Line Clamp

$6.29 $4.61
11 88719-33020 88719-33020 / Pressure Sensor

IM

$223.88 $164.21
12 88310-42511 88310-42511 / Compressor Assembly

$742.74 $543.69
12 88310-42511 88310-42511 / Compressor Assembly

Compressor

IM

$742.74 $543.69

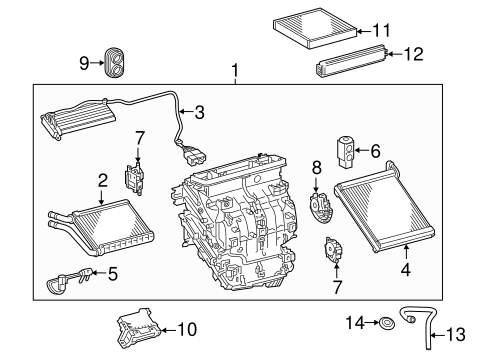

No. Part # Part # / Description List Price Price
1 87050-12420 87050-12420 / Evaporator Assembly

AC & Heater Assembly

$2,719.92 $1,994.94
2 87107-02230 87107-02230 / Heater Core

IM

$395.44 $290.04
3 87710-12020 87710-12020 / Auxiliary Heater

$396.13 $290.54
4 88501-72020 88501-72020 / Evaporator Core

IM

$312.68 $229.34
5 88625-02120 88625-02120 / Thermistor

$14.68 $10.77
5 88625-02120 88625-02120 / Thermistor

Thermistor Probe

IM

$14.68 $10.77
6 88515-02480 88515-02480 / Expansion Valve

IM

$93.37 $68.48
7 87106-47170 87106-47170 / Actuator

Actuator, RIGHT

AIR MIX

$161.99 $118.82
7 87106-75010 87106-75010 / Actuator

Actuator, LEFT

AIR MIX

$194.17 $142.42
7 87106-47170 87106-47170 / Actuator

Door Actuator

IM; AIRMIX; RIGHT

$161.99 $118.82
7 87106-75010 87106-75010 / Actuator

Door Actuator

IM; AIRMIX; LEFT

$194.17 $142.42
8 87106-02200 87106-02200 / Servo

Actuator

MODE

$175.07 $128.41
8 87106-02200 87106-02200 / Servo

Door Actuator

IM; MODE

$175.07 $128.41
9 87128-02040 87128-02040 / Grommet

$7.53 $5.53
10 88650-12A70 88650-12A70 / Amplifier

IM

$647.72 $475.07
11 87139-52040 87139-52040 / Cabin Air Filter

Filter

$20.99 $15.48
11 87139-52040 87139-52040 / Cabin Air Filter

IM; MICRO DUST FILTER

$20.99 $15.48
12 88548-42020 88548-42020 / Filter Cover

$1.45 $1.16
13 88539-12230 88539-12230 / Drain Hose

Drain Tube

$20.99 $15.40
14 90480-26030 90480-26030 / Drain Hose Grommet

Drain Tube Grommet

$3.22 $2.35
