ELECTRICAL/SENDERS for 2016 Scion iM

Select SENDERS Part

2016 Scion iM

Change vehicle

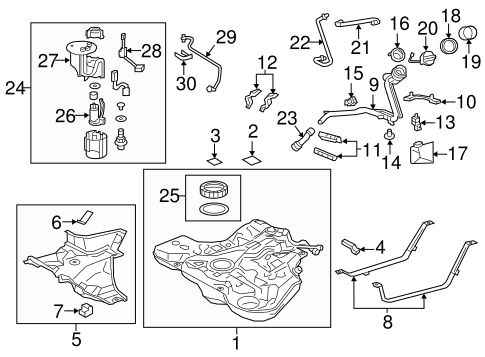

No. Part # Part # / Description List Price Price
1 77001-12E60 77001-12E60 / Fuel Tank

- -
2 77651-12070 77651-12070 / Fuel Tank Cushion

#1

$5.14 $3.86
3 77652-45020 77652-45020 / Fuel Tank Cushion

#2

$2.61 $1.96
4 77197-12100 77197-12100 / Fuel Tank Clamp

$10.14 $7.61
5 77606-12220 77606-12220 / Tank Shield

$187.85 $140.89
6 77653-51010 77653-51010 / Tank Shield Pad

UPPER

$11.81 $8.86
7 77286-12110 77286-12110 / Tank Shield Pad

LOWER

$1.32 $0.99
8 77601-12310 77601-12310 / Tank Strap

Tank Strap, RIGHT

$46.06 $34.55
8 77602-12290 77602-12290 / Tank Strap

Tank Strap, LEFT

$55.71 $41.78
9 77201-12820 77201-12820 / Filler Pipe

$212.50 $159.38
10 77278-12090 77278-12090 / Filler Pipe Upper Support

$7.07 $5.30
11 77278-12080 77278-12080 / Filler Pipe Center Support

#1

$16.49 $12.37
11 77284-12070 77284-12070 / Filler Pipe Center Support

#2

$42.15 $31.61
12 77218-12070 77218-12070 / Filler Pipe Lower Support

#2

$14.88 $11.16
12 77216-12200 77216-12200 / Filler Pipe Lower Support

#1

$7.33 $5.50
13 77229-12130 77229-12130 / Filler Pipe Upper Bracket

$11.75 $8.81
14 77512-35140 77512-35140 / Tank Shield Bracket

Filler Pipe Center Bracket

$4.28 $3.21
15 77281-12220 77281-12220 / Filler Pipe Lower Bracket

$7.01 $5.26
16 77277-76020 77277-76020 / Filler Pipe Protector

UPPER

$28.30 $21.23
17 77277-47050 77277-47050 / Filler Pipe Protector

LOWER

$13.42 $10.07
18 77291-12230 77291-12230 / Pipe Shield

$20.23 $15.17
19 77391-75010 77391-75010 / Filler Pocket Ring

Pipe Shield Ring

#2

$2.76 $2.07
19 77391-02040 77391-02040 / Pocket O-Ring

Pipe Shield Ring

#1

$2.90 $2.18
20 77300-53020 77300-53020 / Filler Cap

$20.79 $15.59
21 77404-12060 77404-12060 / Vent Hose

$31.72 $23.79
22 77226-12100 77226-12100 / Breather Tube

$43.93 $32.95
23 77213-12350 77213-12350 / Filler Hose

$28.13 $21.10
24 77020-12850 77020-12850 / Fuel Pump Assembly

$496.01 $372.01
24 77020-12850 77020-12850 / Fuel Pump Assembly

Fuel Pump

IM; FUEL PUMP ASSY

$496.01 $372.01
25 77169-52040 77169-52040 / Fuel Pump Assembly Retainer

Lock Ring

$27.58 $20.69
26 23220-28440 23220-28440 / Fuel Pump

$349.70 $262.28
27 77024-21040 77024-21040 / Fuel Sender Unit

Plate

$121.08 $90.81
28 83320-12810 83320-12810 / Fuel Gauge Sending Unit

Level Sensor

$77.15 $57.86
28 83320-12810 83320-12810 / Fuel Gauge Sending Unit

IM

$77.15 $57.86
29 77209-12270 77209-12270 / Tube Assembly

$20.49 $15.37
30 77241-06020 77241-06020 / Suction Tube Retainer Clip

Tube Assembly Clip

$1.15 $0.86
No. Part # Part # / Description List Price Price
N/A 83530-12060 83530-12060 / Oil Pressure Sending Unit

IM; YAZAKI

$38.07 $28.55
N/A 89429-12010 89429-12010 / Oil Temp Sending Unit

IM

$101.43 $76.07
No. Part # Part # / Description List Price Price
N/A 83530-12060 83530-12060 / Oil Pressure Sending Unit

IM; DENSO

$38.07 $28.55
