ELECTRICAL/BULBS - CHASSIS for 2016 Scion iM

Select BULBS - CHASSIS Part

2016 Scion iM

Change vehicle

No. Part # Part # / Description List Price Price
1 81270-52020 81270-52020 / License Lamp

License Lamp, RIGHT

$26.52 $19.89
1 81270-52020 81270-52020 / License Lamp

License Lamp, LEFT

$26.52 $19.89
2 00234-00192 00234-00192 / Bulb

License Lmp Bulb, RIGHT

$1.04 $0.78
2 00234-00192 00234-00192 / Bulb

License Lmp Bulb, LEFT

$1.04 $0.78
2 00234-00192 00234-00192 / Bulb

Exterior Bulbs

IM; LICENSE PLATE LAMP

$1.04 $0.78
3 90075-60005 90075-60005 / Socket & Wire

Socket, RIGHT

$9.86 $7.40
3 90075-60005 90075-60005 / Socket & Wire

Socket, LEFT

$9.86 $7.40

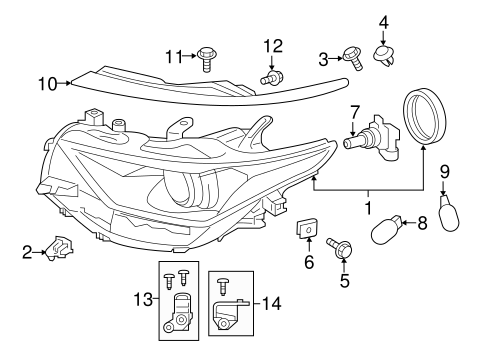

No. Part # Part # / Description List Price Price
1 81130-12C50 81130-12C50 / Composite Headlamp

Headlamp Assembly, RIGHT

$211.23 $158.42
1 81170-12C70 81170-12C70 / Composite Headlamp

Headlamp Assembly, LEFT

$211.23 $158.42
1 81130-12C50 81130-12C50 / Composite Headlamp

IM; RIGHT

$211.23 $158.42
1 81170-12C70 81170-12C70 / Composite Headlamp

IM; LEFT

$211.23 $158.42
2 53271-44010 53271-44010 / Mount Bracket

Headlamp Assembly Bracket, RIGHT

$11.75 $8.81
2 53271-44010 53271-44010 / Mount Bracket

Headlamp Assembly Bracket, LEFT

$11.75 $8.81
3 90159-50388 90159-50388 / Headlamp Assembly Screw

Headlamp Assembly Screw, RIGHT

$0.83 $0.62
3 90159-50388 90159-50388 / Headlamp Assembly Screw

Headlamp Assembly Screw, LEFT

$0.83 $0.62
4 90189-05142 90189-05142 / Headlamp Assembly Grommet

Headlamp Assembly Grommet, RIGHT

$1.12 $0.84
4 90189-05142 90189-05142 / Headlamp Assembly Grommet

Headlamp Assembly Grommet, LEFT

$1.12 $0.84
5 90109-06382 90109-06382 / Combo Lamp Assembly Bolt

Headlamp Assembly Bolt, RIGHT

$0.83 $0.62
5 90109-06382 90109-06382 / Combo Lamp Assembly Bolt

Headlamp Assembly Bolt, LEFT

$0.83 $0.62
6 90179-06127 90179-06127 / Bumper Cover U-Nut

Headlamp Assembly Nut, LEFT

$1.06 $0.80
6 90179-06127 90179-06127 / Bumper Cover U-Nut

Headlamp Assembly Nut, RIGHT

$1.06 $0.80
7 90981-13089 90981-13089 / Low Beam Bulb

Low Beam Bulb, RIGHT

$91.74 $68.81
7 90981-13089 90981-13089 / Low Beam Bulb

Low Beam Bulb, LEFT

$91.74 $68.81
8 90981-15031 90981-15031 / Signal Bulb

Signal Bulb, LEFT

$11.75 $8.81
8 90981-15031 90981-15031 / Signal Bulb

Signal Bulb, RIGHT

$11.75 $8.81
8 90981-15031 90981-15031 / Signal Bulb

Exterior Bulbs

IM; FRONT PARK/TURN SIGNAL

$11.75 $8.81
9 00234-00192 00234-00192 / Bulb

Marker Lamp Bulb, RIGHT

$1.04 $0.78
9 00234-00192 00234-00192 / Bulb

Marker Lamp Bulb, LEFT

$1.04 $0.78
10 53181-12060 53181-12060 / Cover

Cover, RIGHT

$59.65 $44.74
10 53182-12060 53182-12060 / Cover

Cover, LEFT

$59.65 $44.74
11 90109-06382 90109-06382 / Combo Lamp Assembly Bolt

Cover Bolt, RIGHT

$0.83 $0.62
11 90109-06382 90109-06382 / Combo Lamp Assembly Bolt

Cover Bolt, LEFT

$0.83 $0.62
12 90168-40059 90168-40059 / Cover Screw

Cover Screw, LEFT

$0.69 $0.52
12 90168-40059 90168-40059 / Cover Screw

Cover Screw, RIGHT

$0.69 $0.52
13 81194-12180 81194-12180 / Repair Bracket

Repair Bracket, LEFT

UPPER

$9.97 $7.48
13 81193-12180 81193-12180 / Repair Bracket

Repair Bracket, RIGHT

UPPER

$9.97 $7.48
14 81195-12240 81195-12240 / Repair Bracket

Repair Bracket, RIGHT

LOWER

$7.96 $5.97
14 81196-12240 81196-12240 / Repair Bracket

Repair Bracket, LEFT

LOWER

$7.96 $5.97

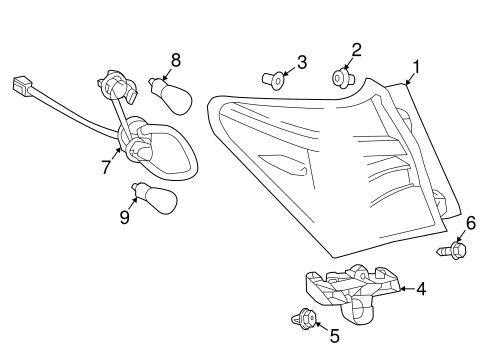

No. Part # Part # / Description List Price Price
1 81561-12C51 81561-12C51 / Tail Lamp Assembly

Tail Lamp Assembly, LEFT

$168.31 $126.23
1 81551-12C51 81551-12C51 / Tail Lamp Assembly

Tail Lamp Assembly, RIGHT

$168.31 $126.23
2 81496-28010 81496-28010 / Tail Lamp Assembly Guide

Tail Lamp Assembly Guide, RIGHT

TYPE 1

$2.82 $2.12
3 81496-0E020 81496-0E020 / Combo Lamp Assembly Guide

Tail Lamp Assembly Guide, LEFT

TYPE 2

$1.15 $0.86
4 52562-12140 52562-12140 / Tail Lamp Assembly Bracket

Tail Lamp Assembly Bracket, RIGHT

$34.51 $25.88
4 52563-12100 52563-12100 / Tail Lamp Assembly Bracket

Tail Lamp Assembly Bracket, LEFT

$34.51 $25.88
5 90189-06235 90189-06235 / Side Support Grommet

Tail Lamp Assembly Grommet, LEFT

$0.86 $0.65
5 90189-06235 90189-06235 / Side Support Grommet

Tail Lamp Assembly Grommet, RIGHT

$0.86 $0.65
6 90159-60498 90159-60498 / Wheel Opening Molding Screw

Tail Lamp Assembly Screw, RIGHT

$1.06 $0.80
6 90159-60498 90159-60498 / Wheel Opening Molding Screw

Tail Lamp Assembly Screw, LEFT

$1.06 $0.80
7 81565-12C50 81565-12C50 / Socket & Wire

Socket & Wire, LEFT

$31.40 $23.55
7 81555-12C50 81555-12C50 / Socket & Wire

Socket & Wire, RIGHT

$31.40 $23.55
8 90981-13043 90981-13043 / Bulb

Stop Lamp Bulb, RIGHT

$5.06 $3.80
8 90981-13043 90981-13043 / Bulb

Stop Lamp Bulb, LEFT

$5.06 $3.80
8 90981-13043 90981-13043 / Bulb

Exterior Bulbs

IM; REAR TURN SIGNAL

$5.06 $3.80
9 90981-13043 90981-13043 / Bulb

Signal Bulb, RIGHT

$5.06 $3.80
9 90981-13043 90981-13043 / Bulb

Signal Bulb, LEFT

$5.06 $3.80
