BODY/STRUCTURAL COMPONENTS & RAILS for 2016 Scion iM

Select STRUCTURAL COMPONENTS & RAILS Part

2016 Scion iM

Change vehicle

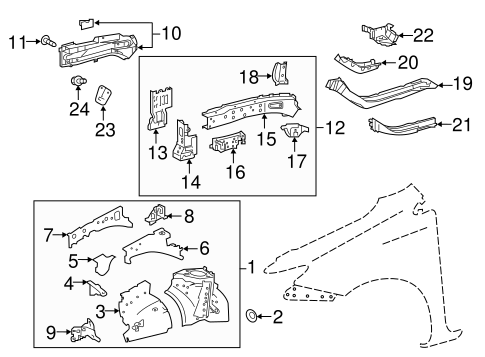

No. Part # Part # / Description List Price Price
1 53702-12A50 53702-12A50 / Apron Assembly

Apron Assembly, LEFT

- -
1 53701-12A40 53701-12A40 / Apron Assembly

Apron Assembly, RIGHT

- -
2 82817-1A810 82817-1A810 / Release Cable Grommet

Apron Assembly Protector, RIGHT

$3.85 $2.82
3 53710-12030 53710-12030 / Front Panel

Front Panel, RIGHT

$124.64 $91.41
3 53720-12030 53720-12030 / Front Panel

Front Panel, LEFT

$104.10 $76.35
4 53713-12160 53713-12160 / Front Panel Extension

Front Panel Extension, RIGHT

$14.11 $10.35
5 53725-12040 53725-12040 / Upper Extension

Front Reinforced, RIGHT

$31.17 $22.86
5 53726-12040 53726-12040 / Upper Extension

Front Reinforced, LEFT

$31.17 $22.86
6 53732-12150 53732-12150 / Upper Rail

Side Member, LEFT

UPPER

$84.53 $62.00
6 53731-12170 53731-12170 / Upper Rail

Side Member, RIGHT

UPPER

$84.53 $62.00
7 53733-12070 53733-12070 / Upper Reinforced

Side Member, RIGHT

LOWER

$50.22 $36.83
7 53734-12070 53734-12070 / Upper Reinforced

Side Member, LEFT

LOWER

$50.22 $36.83
8 53737-12120 53737-12120 / Plate

Plate, RIGHT

$13.82 $10.14
8 53738-12080 53738-12080 / Plate

Plate, LEFT

$13.82 $10.14
9 53813-12160 53813-12160 / Front Extension

Front Extension, RIGHT

$43.50 $31.90
9 53814-12110 53814-12110 / Front Extension

Front Extension, LEFT

$38.90 $28.54
10 57026-12020 57026-12020 / Outer Rail

Outer Rail, LEFT

$163.95 $120.24
10 57025-0R010 57025-0R010 / Outer Rail

Outer Rail, RIGHT

$148.86 $109.19
11 58119-12020 58119-12020 / Outer Rail Cover

Outer Rail Cover, LEFT

$1.06 $0.78
11 58119-12020 58119-12020 / Outer Rail Cover

Outer Rail Cover, RIGHT

$1.06 $0.78
12 57028-12020 57028-12020 / Inner Rail

Rail Assembly, LEFT

$570.94 $418.77
12 57027-12010 57027-12010 / Inner Rail

Rail Assembly, RIGHT

$570.94 $418.77
13 57113-12220 57113-12220 / Front Extension

Rail Assembly Front Extension, RIGHT

$78.18 $57.34
13 57114-12191 57114-12191 / Front Extension

Rail Assembly Front Extension, LEFT

$77.12 $56.56
14 57032-12010 57032-12010 / Front Plate

Rail Assembly Front Bracket, LEFT

$155.61 $114.13
14 57031-12010 57031-12010 / Front Plate

Rail Assembly Front Bracket, RIGHT

$148.92 $109.23
15 57111-12230 57111-12230 / Side Member Rail

Inner Rail, RIGHT

$226.32 $165.99
15 57112-12190 57112-12190 / Side Member Rail

Inner Rail, LEFT

$226.32 $165.99
16 57016-0R010 57016-0R010 / Inner Rail Reinforcement

Inner Rail Reinforcement, RIGHT

$68.27 $50.07
16 57017-12070 57017-12070 / Inner Rail Reinforcement

Inner Rail Reinforcement, LEFT

$63.67 $46.70
17 57106-12150 57106-12150 / Inner Rail Bracket

Inner Rail Bracket, LEFT

$63.67 $46.70
17 57105-12160 57105-12160 / Bracket

Inner Rail Bracket, RIGHT

$63.67 $46.70
18 57188-12030 57188-12030 / Gusset

Gusset, RIGHT

$37.15 $27.24
18 57189-12010 57189-12010 / Gusset

Gusset, LEFT

$41.37 $30.34
19 57191-12070 57191-12070 / Center Rail

Lower Rail, RIGHT

$249.71 $183.16
19 57192-12060 57192-12060 / Center Rail

Lower Rail, LEFT

$251.84 $184.71
20 57034-12010 57034-12010 / Center Reinforced

Lower Rail Reinforcement, LEFT

$106.11 $77.82
20 57033-12010 57033-12010 / Center Reinforced

Lower Rail Reinforcement, RIGHT

$106.11 $77.82
21 57106-12150 57106-12150 / Inner Rail Bracket

Lower Rail Plate, LEFT

$63.67 $46.70
21 57107-12120 57107-12120 / Front Reinforced

Lower Rail Plate, RIGHT

$112.83 $82.75
22 57198-12040 57198-12040 / Torque Box

Torque Box, LEFT

$96.57 $70.83
22 57197-12040 57197-12040 / Torque Box

Torque Box, RIGHT

$96.57 $70.83
23 51963-12250 51963-12250 / Tow Hook Bracket

Tow Hook, RIGHT

$18.85 $13.82
23 51964-12040 51964-12040 / Tow Hook Bracket

Tow Hook, LEFT

$18.85 $13.82
24 91553-L1025 91553-L1025 / Tow Hook Bracket Bolt

Tow Hook Bolt, LEFT

$1.32 $0.96
24 91553-L1025 91553-L1025 / Tow Hook Bracket Bolt

Tow Hook Bolt, RIGHT

$1.32 $0.96
