BODY/REAR SEAT COMPONENTS for 2016 Scion iM

Select REAR SEAT COMPONENTS Part

2016 Scion iM

Change vehicle

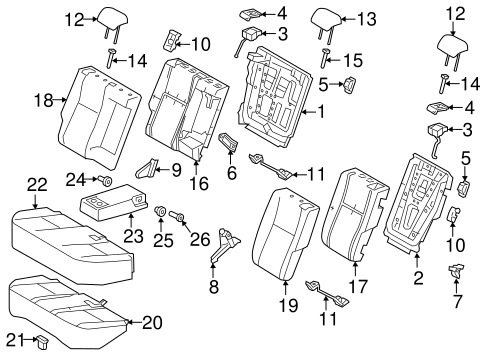

No. Part # Part # / Description List Price Price
1 71017-12B40 71017-12B40 / Seat Back Frame

Seat Back Frame, RIGHT

$307.49 $230.62
2 71018-12480 71018-12480 / Seat Back Frame

Seat Back Frame, LEFT

$201.79 $151.34
3 72057-12010-C0 72057-12010-C0 / Release Lever

Release Lever, RIGHT

$40.37 $30.28
3 72058-12010-C0 72058-12010-C0 / Release Lever

Release Lever, LEFT

$40.37 $30.28
4 72667-12010-C0 72667-12010-C0 / Release Lever Bezel

Release Lever Bezel, RIGHT

$21.29 $15.97
4 72668-12010-C0 72668-12010-C0 / Release Lever Bezel

Release Lever Bezel, LEFT

$21.29 $15.97
5 72996-12380-C0 72996-12380-C0 / Cover

$10.26 $7.70
6 71303-12210 71303-12210 / Hinge

Hinge, RIGHT

OUTER

$32.96 $24.72
7 71304-12080 71304-12080 / Hinge

Hinge, LEFT

OUTER

$32.96 $24.72
8 71305-12240 71305-12240 / Hinge

Hinge, LEFT

CENTER

$80.71 $60.53
9 72868-12050-C0 72868-12050-C0 / Hinge Cover

$7.96 $5.97
10 72603-12050 72603-12050 / Lock Assembly

Lock Assembly, RIGHT

$40.71 $30.53
10 72604-12070 72604-12070 / Lock Assembly

Lock Assembly, LEFT

$40.71 $30.53
11 73705-12140 73705-12140 / Mount Bracket

Mount Bracket, RIGHT

$20.03 $15.02
11 73705-12140 73705-12140 / Mount Bracket

Mount Bracket, LEFT

$20.03 $15.02
12 71940-12E40-C0 71940-12E40-C0 / Headrest, Outer

Headrest, Outer, RIGHT

$485.72 $364.29
12 71940-12E40-C0 71940-12E40-C0 / Headrest, Outer

Headrest, Outer, LEFT

$485.72 $364.29
13 71960-12770-C2 71960-12770-C2 / Headrest, Center

$435.73 $326.80
14 71955-47010-C0 71955-47010-C0 / Headrest Guide

OUTER

$43.44 $32.58
15 71930-44020-C0 71930-44020-C0 / Headrest Guide

INNER, LOCKING

$15.08 $11.31
15 71931-47010-C0 71931-47010-C0 / Headrest Guide

INNER, NON LOCKING

$10.29 $7.72
16 71651-12B40 71651-12B40 / Seat Back Pad

Seat Back Pad, RIGHT

$195.72 $146.79
17 71652-12850 71652-12850 / Seat Back Pad

Seat Back Pad, LEFT

$152.51 $114.38
18 71077-12S70-C2 71077-12S70-C2 / Seat Back Cover

Seat Back Cover, RIGHT

$332.69 $249.52
19 71078-12N50-C2 71078-12N50-C2 / Seat Back Cover

Seat Back Cover, LEFT

$244.94 $183.71
20 71503-12360 71503-12360 / Seat Cushion

$500.00 $375.00
21 72693-12080 72693-12080 / Seat Cushion Pad Hook

Seat Cushion Hook

$3.65 $2.74
22 71075-12N50-C1 71075-12N50-C1 / Cushion Cover

$401.68 $301.26
23 72830-12780-C5 72830-12780-C5 / Armrest

$376.80 $282.60
24 72622-47010 72622-47010 / Armrest Bushing

Armrest Bushing, RIGHT

$1.01 $0.76
25 72622-47020 72622-47020 / Armrest Bushing

Armrest Bushing, LEFT

$1.15 $0.86
26 90109-06023 90109-06023 / Armrest Bolt

$0.83 $0.62
