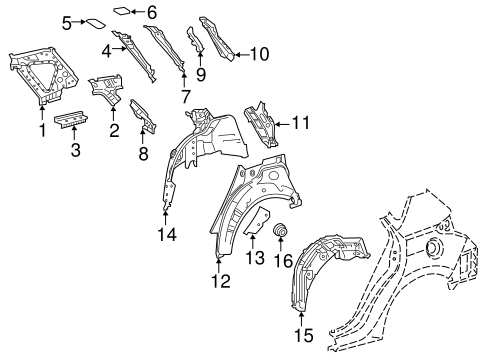

BODY/INNER STRUCTURE for 2016 Scion iM

Select INNER STRUCTURE Part

2016 Scion iM

Change vehicle

No. Part # Part # / Description List Price Price
1 61731-12751 61731-12751 / Upper Panel

Upper Panel, RIGHT

$83.12 $60.96
1 61732-12771 61732-12771 / Upper Panel

Upper Panel, LEFT

$83.12 $60.96
2 61714-12120 61714-12120 / Upper Panel Upper Reinforced

Upper Panel Upper Reinforced, LEFT

$56.23 $41.24
2 61713-12130 61713-12130 / Upper Panel Upper Reinforced

Upper Panel Upper Reinforced, RIGHT

$56.23 $41.24
3 61766-12320 61766-12320 / Panel Reinforced

Upper Panel Lower Reinforced, RIGHT

$42.81 $31.40
3 61767-12270 61767-12270 / Panel Reinforced

Upper Panel Lower Reinforced, LEFT

$42.81 $31.40
4 61736-12430 61736-12430 / Inner Panel

Inner Panel, LEFT

$66.86 $49.04
4 61735-12430 61735-12430 / Inner Panel

Inner Panel, RIGHT

$66.86 $49.04
5 61825-52060 61825-52060 / Inner Side Panel Shim

Inner Panel Pad, RIGHT

$2.16 $1.59
5 61825-52060 61825-52060 / Inner Side Panel Shim

Inner Panel Pad, LEFT

$2.16 $1.59
6 61824-02190 61824-02190 / Inner Hinge Pillar Plate

Inner Panel Plate, LEFT

$1.49 $1.10
6 61824-02190 61824-02190 / Inner Hinge Pillar Plate

Inner Panel Plate, RIGHT

$1.49 $1.10
7 61743-12090 61743-12090 / Upper Reinforced

Upper Reinforced, RIGHT

$75.68 $55.51
7 61744-12090 61744-12090 / Upper Reinforced

Upper Reinforced, LEFT

$75.68 $55.51
8 61738-12160 61738-12160 / Lower Reinforced

Lower Reinforced, LEFT

$40.31 $29.57
8 61737-12150 61737-12150 / Lower Reinforced

Lower Reinforced, RIGHT

$40.31 $29.57
9 68982-12060 68982-12060 / Retainer Plate

Retainer Plate, LEFT

$12.58 $9.24
9 68981-12070 68981-12070 / Retainer Plate

Retainer Plate, RIGHT

$12.58 $9.24
10 61774-12010 61774-12010 / Rear Frame

Rear Frame, LEFT

$33.96 $24.91
10 61773-12010 61773-12010 / Rear Frame

Rear Frame, RIGHT

$33.96 $24.91
11 61712-12390 61712-12390 / Lower Panel

Lower Panel, LEFT

$52.74 $38.67
11 61711-12360 61711-12360 / Lower Panel

Lower Panel, RIGHT

$52.74 $38.67
12 61632-12471 61632-12471 / Outer Wheelhouse

Outer Wheelhouse, LEFT

$171.91 $126.09
12 61631-12501 61631-12501 / Outer Wheelhouse

Outer Wheelhouse, RIGHT

$171.91 $126.09
13 61629-12040 61629-12040 / Outer Wheelhouse Reinforcement

Outer Wheelhouse Reinforcement, LEFT

$15.34 $11.25
13 61619-12080 61619-12080 / Outer Wheelhouse Reinforcement

Outer Wheelhouse Reinforcement, RIGHT

$15.34 $11.25
14 61608-12C40 61608-12C40 / Inner Wheelhouse

Inner Wheelhouse, LEFT

$360.76 $264.61
14 61607-12C60 61607-12C60 / Inner Wheelhouse

Inner Wheelhouse, RIGHT

$360.76 $264.61
15 65637-12040 65637-12040 / Wheelhouse Liner

Wheelhouse Liner, RIGHT

$80.65 $59.16
15 65638-12050 65638-12050 / Wheelhouse Liner

Wheelhouse Liner, LEFT

$80.65 $59.16
16 90467-06206-C0 90467-06206-C0 / Side Seal Clip

Wheelhouse Liner Clip, RIGHT

$1.18 $0.87
16 90467-06206-C0 90467-06206-C0 / Side Seal Clip

Wheelhouse Liner Clip, LEFT

$1.18 $0.87
