BODY/BUMPER & COMPONENTS - REAR for 2016 Scion iM

Select BUMPER & COMPONENTS - REAR Part

2016 Scion iM

Change vehicle

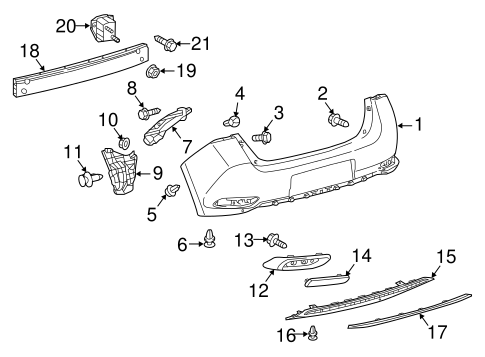

No. Part # Part # / Description List Price Price
1 52159-12950 52159-12950 / Bumper Cover

- -
2 90167-50063 90167-50063 / Fog Lamp Assembly Screw

Bumper Cover Screw

#1

$0.60 $0.45
3 90159-A0053 90159-A0053 / Fender Liner Screw

Bumper Cover Screw

#2

$0.86 $0.65
4 90189-06228 90189-06228 / Bumper Cover Grommet

$1.03 $0.77
5 90467-05170 90467-05170 / Lift Gate Trim Lower Clip

Bumper Cover Clip

$1.15 $0.86
6 52161-02020 52161-02020 / Bumper Cover Clip

Bumper Cover Retainer

$2.47 $1.85
7 52576-12190 52576-12190 / Upper Bracket

Upper Bracket, LEFT

$57.49 $43.12
7 52575-12190 52575-12190 / Upper Bracket

Upper Bracket, RIGHT

$57.49 $43.12
8 90159-A0034 90159-A0034 / Side Support Retainer Screw

Upper Bracket Screw, RIGHT

$0.83 $0.62
8 90159-A0034 90159-A0034 / Side Support Retainer Screw

Upper Bracket Screw, LEFT

$0.83 $0.62
9 52591-12290 52591-12290 / Side Support

Side Support, RIGHT

$73.93 $55.45
9 52592-12210 52592-12210 / Side Support

Side Support, LEFT

$73.93 $55.45
10 90467-06206-C0 90467-06206-C0 / Side Seal Clip

Side Support Clip, LEFT

$1.15 $0.86
10 90467-06206-C0 90467-06206-C0 / Side Seal Clip

Side Support Clip, RIGHT

$1.15 $0.86
11 52161-02020 52161-02020 / Bumper Cover Clip

Side Support Retainer, RIGHT

$2.47 $1.85
11 52161-02020 52161-02020 / Bumper Cover Clip

Side Support Retainer, LEFT

$2.47 $1.85
12 52681-12090 52681-12090 / Side Extension

Side Extension, RIGHT

$43.38 $32.54
12 52682-12090 52682-12090 / Side Extension

Side Extension, LEFT

$43.38 $32.54
13 90167-50063 90167-50063 / Fog Lamp Assembly Screw

Side Extension Bolt, RIGHT

$0.60 $0.45
13 90167-50063 90167-50063 / Fog Lamp Assembly Screw

Side Extension Bolt, LEFT

$0.60 $0.45
14 81910-12110 81910-12110 / Reflector

Reflector, RIGHT

$34.28 $25.71
14 81920-12110 81920-12110 / Reflector

Reflector, LEFT

$34.28 $25.71
15 52151-12360 52151-12360 / Lower Extension

$138.92 $104.19
16 52161-02020 52161-02020 / Bumper Cover Clip

Lower Extension Retainer

$2.47 $1.85
17 52751-12270 52751-12270 / Molding

$68.58 $51.44
18 52171-12260 52171-12260 / Impact Bar

$182.70 $137.03
19 90178-A0030 90178-A0030 / Impact Bar Nut

$1.32 $0.99
20 52015-12340 52015-12340 / Mount Bracket

Bumper Bracket, RIGHT

$66.89 $50.17
20 52016-12310 52016-12310 / Mount Bracket

Bumper Bracket, LEFT

$66.89 $50.17
21 90119-08958 90119-08958 / Reinforced Bracket Bolt

Bumper Bracket Bolt, RIGHT

$1.93 $1.45
21 90119-08958 90119-08958 / Reinforced Bracket Bolt

Bumper Bracket Bolt, LEFT

$1.93 $1.45
