HVAC/CONDENSER, COMPRESSOR & LINES for 2015 Toyota Yaris

Select CONDENSER, COMPRESSOR & LINES Part

2015 Toyota Yaris

Change vehicle

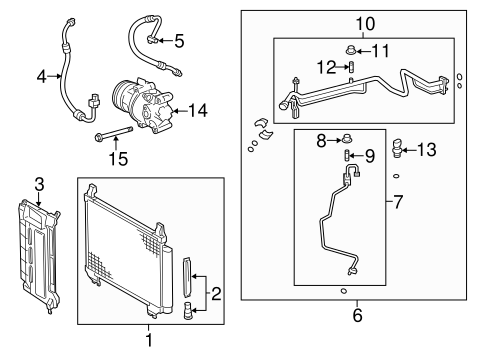

No. Part # Part # / Description List Price Price
1 88460-52130 88460-52130 / Condenser

$296.43 $217.42
2 88474-12010 88474-12010 / Dehydrator

$98.26 $72.08
3 88891-52100 88891-52100 / Air Baffle

$16.97 $12.44
4 88704-52250 88704-52250 / Suction Hose

Front Suction Hose

$130.18 $95.48
4 88704-52250 88704-52250 / Suction Hose

YARIS; FRANCE BUILT; JAPAN PART

$130.18 $95.48
5 88711-52380 88711-52380 / Discharge Hose

$106.16 $77.86
6 88710-52040 88710-52040 / Rear Suction Line

Tube Assembly

FROM 5/13

$342.56 $251.26
7 88716-52720 88716-52720 / Liquid Line

$65.98 $48.40
8 88375-02060 88375-02060 / Liquid Line Cap

$0.47 $0.34
9 88374-30010 88374-30010 / Valve

Liquid Line Valve

$1.97 $1.45
10 88710-52040 88710-52040 / Rear Suction Line

$342.56 $251.26
11 88375-02070 88375-02070 / Suction Hose Cap

Rear Suction Line Cap

$0.34 $0.26
12 88374-30010 88374-30010 / Valve

Rear Suction Line Valve

$1.97 $1.45
13 88719-33020 88719-33020 / Pressure Sensor

$223.88 $164.21
13 88719-33020 88719-33020 / Pressure Sensor

Pressure Switch

YARIS

$223.88 $164.21
14 88310-52720 88310-52720 / Compressor Assembly

FRANCE BUILT

$606.24 $444.65
14 88310-52720 88310-52720 / Compressor Assembly

Compressor

YARIS; FRANCE BUILT

$606.24 $444.65
15 90119-08C78 90119-08C78 / Compressor Assembly Mount Bolt

$1.64 $1.20
No. Part # Part # / Description List Price Price
layer_7 88474-12030 88474-12030 / Dehydrator

Drier

YARIS; FRANCE BUILT

$134.41 $98.59
layer_4 88515-0D310 88515-0D310 / Expansion Valve

YARIS; FRANCE BUILT

$101.97 $74.79
No. Part # Part # / Description List Price Price
N/A 88704-0D080 88704-0D080 / Suction Hose

YARIS; FRANCE BUILT; USA PART

- -
