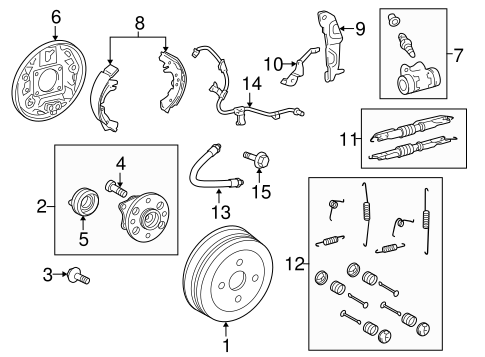

BRAKES/BRAKE COMPONENTS for 2015 Toyota Yaris

Select BRAKE COMPONENTS Part

2015 Toyota Yaris

Change vehicle

No. Part # Part # / Description List Price Price
1 42431-52070 42431-52070 / Drum

Drum, LEFT

DRUM BRAKES

$101.31 $74.31
1 42431-52070 42431-52070 / Drum

Drum, RIGHT

DRUM BRAKES

$101.31 $74.31
1 42431-52070 42431-52070 / Drum

YARIS

$101.31 $74.31
3 90105-W0164 90105-W0164 / Hub Assembly Mount Bolt

Hub Assembly Mount Bolt, RIGHT

DRUM BRAKES

$1.87 $1.37
6 47043-52100 47043-52100 / Backing Plate

Backing Plate, RIGHT

DRUM BRAKES

$58.64 $43.02
6 47044-52100 47044-52100 / Backing Plate

Backing Plate, LEFT

DRUM BRAKES

$58.64 $43.02
6 47044-52100 47044-52100 / Backing Plate

YARIS; W/O SE MODEL; LEFT

$58.64 $43.02
6 47043-52100 47043-52100 / Backing Plate

YARIS; W/O SE MODEL; RIGHT

$58.64 $43.02
7 47570-02020 47570-02020 / Wheel Cylinder

Wheel Cylinder, LEFT

DRUM BRAKES

$56.76 $41.64
7 47550-20211 47550-20211 / Wheel Cylinder

Wheel Cylinder, RIGHT

DRUM BRAKES

$51.78 $37.98
7 47550-20211 47550-20211 / Wheel Cylinder

YARIS; RIGHT

$51.78 $37.98
7 47570-02020 47570-02020 / Wheel Cylinder

YARIS; LEFT

$56.76 $41.64
8 04495-52170 04495-52170 / Brake Shoes

DRUM BRAKES

$57.17 $41.93
8 04495-52170 04495-52170 / Brake Shoes

Shoes

YARIS; FRANCE BUILT

$57.17 $41.93
10 47643-52102 47643-52102 / Adjust Lever

Adjust Lever, RIGHT

DRUM BRAKES

$4.74 $3.48
10 47644-52102 47644-52102 / Adjust Lever

Adjust Lever, LEFT

DRUM BRAKES

$4.74 $3.48
11 04943-12010 04943-12010 / Adjuster

DRUM BRAKES

$63.67 $46.70
12 04942-52050 04942-52050 / Hardware Kit

DRUM BRAKES

$47.41 $34.77
13 90947-W2037 90947-W2037 / Brake Hose

Brake Hose, LEFT

DRUM BRAKES, FRANCE BUILT

$46.69 $34.25
13 90947-W2037 90947-W2037 / Brake Hose

Flex Hose

YARIS; LEFT; FRANCE BUILT; W/O SE MODEL

$46.69 $34.25
14 89516-0D310 89516-0D310 / ABS Sensor Wire

ABS Sensor Wire, RIGHT

DRUM BRAKES, FRANCE BUILT

$35.23 $25.84
15 90119-A0213 90119-A0213 / ABS Sensor Wire Bolt

ABS Sensor Wire Bolt, LEFT

DRUM BRAKES

$0.86 $0.63
15 90119-A0213 90119-A0213 / ABS Sensor Wire Bolt

ABS Sensor Wire Bolt, RIGHT

DRUM BRAKES

$0.86 $0.63

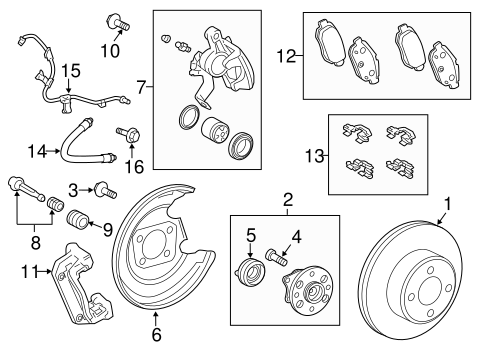

BRAKES/BRAKE COMPONENTS for 2015 Toyota Yaris #2
No. Part # Part # / Description List Price Price
1 43502-52030 43502-52030 / Hub

Wheel Hub, LEFT

$127.51 $93.53
1 43502-52030 43502-52030 / Hub

Wheel Hub, RIGHT

$127.51 $93.53
2 90942-02049 90942-02049 / Wheel Stud

Wheel Stud, RIGHT

$4.25 $3.12
2 90942-02049 90942-02049 / Wheel Stud

Wheel Stud, LEFT

$4.25 $3.12
3 90369-40009 90369-40009 / Bearing

Wheel Bearing, LEFT

$60.02 $44.02
3 90369-40009 90369-40009 / Bearing

Wheel Bearing, RIGHT

$60.02 $44.02
4 90521-80003 90521-80003 / Bearing Snap Ring

Wheel Bearing Snap Ring, LEFT

$6.41 $4.70
4 90521-80003 90521-80003 / Bearing Snap Ring

Wheel Bearing Snap Ring, RIGHT

$6.41 $4.70
5 43512-52120 43512-52120 / Brake Rotor

Brake Rotor, LEFT

W/O 4 WHEEL DISC

$72.84 $53.42
5 43512-52130 43512-52130 / Brake Rotor

Brake Rotor, RIGHT

W/4 WHEEL DISC

$72.84 $53.42
5 43512-52130 43512-52130 / Brake Rotor

Brake Rotor, LEFT

W/4 WHEEL DISC

$72.84 $53.42
5 43512-52120 43512-52120 / Brake Rotor

Brake Rotor, RIGHT

W/O 4 WHEEL DISC

$72.84 $53.42
5 43512-52120 43512-52120 / Brake Rotor

Rotor

YARIS; W/O SE MODEL

$72.84 $53.42
6 90080-17238 90080-17238 / Axle Nut

Axle Nut, LEFT

$9.40 $6.89
6 90080-17238 90080-17238 / Axle Nut

Axle Nut, RIGHT

$9.40 $6.89
7 47750-52191 47750-52191 / Caliper Assembly

Caliper Assembly, LEFT

W/O 4 WHEEL DISC

$349.76 $256.53
7 47730-52211 47730-52211 / Caliper Assembly

Caliper Assembly, RIGHT

W/4 WHEEL DISC

$349.76 $256.53
7 47750-52211 47750-52211 / Caliper Assembly

Caliper Assembly, LEFT

W/4 WHEEL DISC

$349.76 $256.53
7 47730-52191 47730-52191 / Caliper Assembly

Caliper Assembly, RIGHT

W/O 4 WHEEL DISC

$349.76 $256.53
7 47730-52191 47730-52191 / Caliper Assembly

Caliper

YARIS; RIGHT; W/O SE MODEL

$349.76 $256.53
7 47750-52191 47750-52191 / Caliper Assembly

Caliper

YARIS; LEFT; W/O SE MODEL

$349.76 $256.53
8 47721-52211 47721-52211 / Caliper Mount

Caliper Mount, RIGHT

W/4 WHEEL DISC

$102.57 $75.24
8 47721-52191 47721-52191 / Caliper Mount

Caliper Mount, RIGHT

W/O 4 WHEEL DISC

$102.92 $75.48
8 47722-52191 47722-52191 / Caliper Mount

Caliper Mount, LEFT

W/O 4 WHEEL DISC

$102.57 $75.24
8 47722-52211 47722-52211 / Caliper Mount

Caliper Mount, LEFT

W/4 WHEEL DISC

$102.57 $75.24
9 04465-52310 04465-52310 / Brake Pads

W/4 WHEEL DISC

$47.99 $35.25
9 04465-52260 04465-52260 / Pads

Brake Pads

W/O 4 WHEEL DISC

$77.00 $56.12
9 04465-52260 04465-52260 / Pads

Front Pads

YARIS; MARK PA563H

$77.00 $56.12
9 04465-52310 04465-52310 / Brake Pads

Front Pads

YARIS; MARK PV565H

$47.99 $35.25
10 47781-52030 47781-52030 / Splash Shield

Splash Shield, RIGHT

$25.86 $18.97
10 47782-52030 47782-52030 / Splash Shield

Splash Shield, LEFT

$25.86 $18.97
10 47781-52030 47781-52030 / Splash Shield

YARIS; RIGHT

$25.86 $18.97
10 47782-52030 47782-52030 / Splash Shield

YARIS; LEFT

$25.86 $18.97
11 90947-W2035 90947-W2035 / Flex Hose

Brake Hose, LEFT

FRANCE BUILT

$72.15 $52.91
11 90947-W2034 90947-W2034 / Flex Hose

Brake Hose, RIGHT

FRANCE BUILT

$72.15 $52.91
11 90947-W2034 90947-W2034 / Flex Hose

YARIS; RIGHT; FRANCE BUILT

$72.15 $52.91
11 90947-W2035 90947-W2035 / Flex Hose

YARIS; LEFT; FRANCE BUILT

$72.15 $52.91
12 89542-52090 89542-52090 / ABS Sensor Wire

ABS Sensor Wire, RIGHT

$245.43 $180.01
12 89543-52090 89543-52090 / ABS Sensor Wire

ABS Sensor Wire, LEFT

$245.43 $180.01
12 89543-52090 89543-52090 / ABS Sensor Wire

Front Speed Sensor

YARIS; LEFT

$245.43 $180.01
12 89542-52090 89542-52090 / ABS Sensor Wire

Front Speed Sensor

YARIS; RIGHT

$245.43 $180.01
No. Part # Part # / Description List Price Price
1 42431-52140 42431-52140 / Rotor

Rotor, LEFT

DISC BRAKES

$73.52 $53.92
1 42431-52140 42431-52140 / Rotor

Rotor, RIGHT

DISC BRAKES

$73.52 $53.92
1 42431-52140 42431-52140 / Rotor

YARIS

$73.52 $53.92
2 42450-0D111 42450-0D111 / Hub Assembly

Hub Assembly, LEFT

DISC BRAKES

$427.97 $313.89
2 42450-0D111 42450-0D111 / Hub Assembly

Hub Assembly, RIGHT

DISC BRAKES

$427.97 $313.89
3 90105-W0164 90105-W0164 / Hub Assembly Mount Bolt

Hub Assembly Mount Bolt, LEFT

DISC BRAKES

$1.87 $1.37
4 90942-02049 90942-02049 / Wheel Stud

Wheel Stud, LEFT

DISC BRAKES

$4.25 $3.12
4 90942-02049 90942-02049 / Wheel Stud

Wheel Stud, RIGHT

DISC BRAKES

$4.25 $3.12
6 47803-52030 47803-52030 / Splash Shield

Splash Shield, RIGHT

DISC BRAKES

$30.37 $22.28
6 47804-52030 47804-52030 / Splash Shield

Splash Shield, LEFT

DISC BRAKES

$30.37 $22.28
7 47850-52161 47850-52161 / Caliper

Caliper, LEFT

DISC BRAKES

$458.08 $335.98
7 47830-52161 47830-52161 / Caliper

Caliper, RIGHT

DISC BRAKES

$458.08 $335.98
7 47850-52161 47850-52161 / Caliper

YARIS; LEFT

$458.08 $335.98
7 47830-52161 47830-52161 / Caliper

YARIS; RIGHT

$458.08 $335.98
8 47835-12150 47835-12150 / Guide Pin

Caliper Slide, LEFT

DISC BRAKES

$10.00 $7.33
8 47835-12150 47835-12150 / Guide Pin

Caliper Slide, RIGHT

DISC BRAKES

$10.00 $7.33
9 47875-12150 47875-12150 / Caliper Dust Shield

Caliper Dust Shield, LEFT

DISC BRAKES

$5.37 $3.94
9 47875-12150 47875-12150 / Caliper Dust Shield

Caliper Dust Shield, RIGHT

DISC BRAKES

$5.37 $3.94
10 90015-AA102 90015-AA102 / Caliper Assembly Mount Bolt

Caliper Bolt, LEFT

DISC BRAKES

$1.24 $0.90
10 90015-AA102 90015-AA102 / Caliper Assembly Mount Bolt

Caliper Bolt, RIGHT

DISC BRAKES

$1.24 $0.90
12 04466-52170 04466-52170 / Brake Pads

DISC BRAKES

$57.09 $41.87
12 04466-52170 04466-52170 / Brake Pads

Rear Pads

YARIS

$57.09 $41.87
13 04948-12060 04948-12060 / Brake Pads Hardware Kit

DISC BRAKES

- -
14 90947-W2036 90947-W2036 / Brake Hose

Brake Hose, RIGHT

DISC BRAKES

$46.69 $34.25
14 90947-W2036 90947-W2036 / Brake Hose

Flex Hose

YARIS; RIGHT; FRANCE BUILT; W/O SE MODEL

$46.69 $34.25
15 89516-0D320 89516-0D320 / ABS Sensor Wire

ABS Sensor Wire, LEFT

DISC BRAKES

$35.23 $25.84
