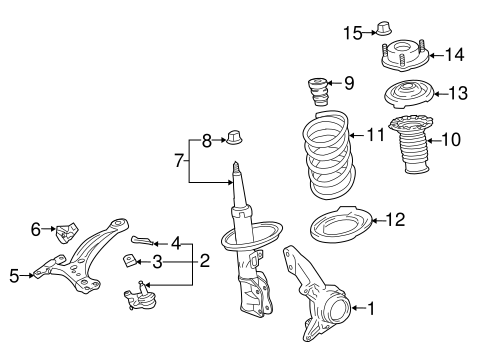

FRONT SUSPENSION/SUSPENSION COMPONENTS for 2015 Toyota Highlander

Select SUSPENSION COMPONENTS Part

2015 Toyota Highlander

Change vehicle

No. Part # Part # / Description List Price Price
1 43212-0E010 43212-0E010 / Knuckle

Knuckle, LEFT

$418.34 $313.76
1 43211-0E010 43211-0E010 / Knuckle

Knuckle, RIGHT

$418.34 $313.76
2 43330-09780 43330-09780 / Ball Joint

Lower Ball Joint, RIGHT

$65.71 $49.28
2 43340-09140 43340-09140 / Ball Joint

Lower Ball Joint, LEFT

$65.71 $49.28
3 90080-17214 90080-17214 / Lower Ball Joint Castle Nut

Lower Ball Joint Castle Nut, LEFT

$3.22 $2.42
3 90080-17214 90080-17214 / Lower Ball Joint Castle Nut

Lower Ball Joint Castle Nut, RIGHT

$3.22 $2.42
4 95381-03225 95381-03225 / Lower Ball Joint Cotter Pin

Lower Ball Joint Cotter Pin, LEFT

$1.03 $0.77
4 95381-03225 95381-03225 / Lower Ball Joint Cotter Pin

Lower Ball Joint Cotter Pin, RIGHT

$1.03 $0.77
5 48068-0E050 48068-0E050 / Control Arm

Lower Control Arm, RIGHT

$240.70 $180.53
5 48069-0E050 48069-0E050 / Control Arm

Lower Control Arm, LEFT

$240.70 $180.53
6 48657-06010 48657-06010 / Stopper

Lower Control Arm Stopper, LEFT

$10.11 $7.58
6 48657-06010 48657-06010 / Stopper

Lower Control Arm Stopper, RIGHT

$10.11 $7.58
7 48510-8Z103 48510-8Z103 / Strut

Strut, RIGHT

3.5 LITER, W/O HYBRID ENGINE

$153.78 $115.34
7 48520-8Z013 48520-8Z013 / Strut

Strut, LEFT

3.5 LITER, W/O HYBRID ENGINE

$153.78 $115.34
8 90080-17217 90080-17217 / Top Nut

Top Nut, LEFT

$3.22 $2.42
8 90080-17217 90080-17217 / Top Nut

Top Nut, RIGHT

$3.22 $2.42
9 48331-0E040 48331-0E040 / Strut Bumper

Bumper, RIGHT

$19.60 $14.70
9 48331-0E040 48331-0E040 / Strut Bumper

Bumper, LEFT

$19.60 $14.70
10 48157-0E040 48157-0E040 / Dust Cover

Dust Cover, LEFT

$28.82 $21.62
10 48157-0E040 48157-0E040 / Dust Cover

Dust Cover, RIGHT

$28.82 $21.62
11 48132-0E080 48132-0E080 / Coil Spring

Spring, LEFT

3.5 LITER, W/O HYBRID, FWD

$107.66 $80.75
11 48131-0E170 48131-0E170 / Coil Spring

Spring, RIGHT

3.5 LITER, W/O HYBRID, AWD

$107.66 $80.75
11 48131-0E190 48131-0E190 / Coil Spring

Spring, RIGHT

3.5 LITER, W/O HYBRID, FWD

$107.66 $80.75
11 48132-0E060 48132-0E060 / Coil Spring

Spring, LEFT

3.5 LITER, W/O HYBRID, AWD

$107.66 $80.75
12 48158-0E070 48158-0E070 / Lower Spring Insulator

Lower Seat, LEFT

$29.42 $22.07
12 48158-0E060 48158-0E060 / Lower Spring Insulator

Lower Seat, RIGHT

$29.42 $22.07
13 48619-42010 48619-42010 / Upper Insulator

Upper Seat, RIGHT

$24.97 $18.73
13 48619-42010 48619-42010 / Upper Insulator

Upper Seat, LEFT

$24.97 $18.73
14 48609-0E060 48609-0E060 / Strut Mount

Support, LEFT

$115.85 $86.89
14 48609-0E060 48609-0E060 / Strut Mount

Support, RIGHT

$115.85 $86.89
15 90178-A0060 90178-A0060 / Support Nut

Support Nut, RIGHT

#2

$1.32 $0.99
15 90080-17215 90080-17215 / Support Nut

Support Nut, RIGHT

#1

$3.22 $2.42
15 90178-A0060 90178-A0060 / Support Nut

Support Nut, LEFT

#2

$1.32 $0.99
15 90080-17215 90080-17215 / Support Nut

Support Nut, LEFT

#1

$3.22 $2.42
FRONT SUSPENSION/SUSPENSION COMPONENTS for 2015 Toyota Highlander #2
No. Part # Part # / Description List Price Price
1 51100-0E063 51100-0E063 / Engine Cradle

Cross-member

HIGHLANDER; FROM 2/14

$1,613.49 $1,210.12
2 43502-0E010 43502-0E010 / Hub Assembly

Front Hub

HIGHLANDER

$154.35 $115.76
3 90369-A0002 90369-A0002 / Bearing

Front Wheel Bearing

HIGHLANDER

$107.89 $80.92
4 43246-48011 43246-48011 / Dust Cover

Hub Seals

HIGHLANDER

$17.10 $12.83
5 43212-0E010 43212-0E010 / Knuckle

HIGHLANDER; LEFT

$418.34 $313.76
5 43211-0E010 43211-0E010 / Knuckle

HIGHLANDER; RIGHT

$418.34 $313.76
6 48510-8Z103 48510-8Z103 / Strut

HIGHLANDER; RIGHT; 3.5L; W/O HYBRID

$153.78 $115.34
6 48520-8Z013 48520-8Z013 / Strut

HIGHLANDER; LEFT; 3.5L; W/O HYBRID

$153.78 $115.34
7 48609-0E060 48609-0E060 / Strut Mount

HIGHLANDER

$115.85 $86.89
10 48158-0E060 48158-0E060 / Lower Spring Insulator

HIGHLANDER; RIGHT

$29.42 $22.07
10 48158-0E070 48158-0E070 / Lower Spring Insulator

HIGHLANDER; LEFT

$29.42 $22.07
11 48331-0E040 48331-0E040 / Strut Bumper

HIGHLANDER

$19.60 $14.70
12 48157-0E040 48157-0E040 / Dust Cover

Upper Spring Insulator

HIGHLANDER

$28.82 $21.62
13 43330-09780 43330-09780 / Ball Joint

Lower Ball Joint

HIGHLANDER; RIGHT

$65.71 $49.28
13 43340-09140 43340-09140 / Ball Joint

Lower Ball Joint

HIGHLANDER; LEFT

$65.71 $49.28
14 48069-0E050 48069-0E050 / Control Arm

Lower Control Arm

HIGHLANDER; LEFT

$240.70 $180.53
14 48068-0E050 48068-0E050 / Control Arm

Lower Control Arm

HIGHLANDER; RIGHT

$240.70 $180.53
16 48824-0E020 48824-0E020 / Stabilizer Bar Upper Bracket

Mounting Bracket

HIGHLANDER; UPPER

$28.13 $21.10
16 48827-08010 48827-08010 / Bracket

Mounting Bracket

HIGHLANDER; LOWER

$17.99 $13.49
17 48815-AE030 48815-AE030 / Stabilizer Bar Bushing

Bushings

HIGHLANDER

$15.40 $11.55
18 48820-06040 48820-06040 / Stabilizer Link

Link

HIGHLANDER

$81.08 $60.81
