BODY/BUMPER & COMPONENTS - REAR for 2014 Toyota RAV4

Select BUMPER & COMPONENTS - REAR Part

2014 Toyota RAV4

Change vehicle

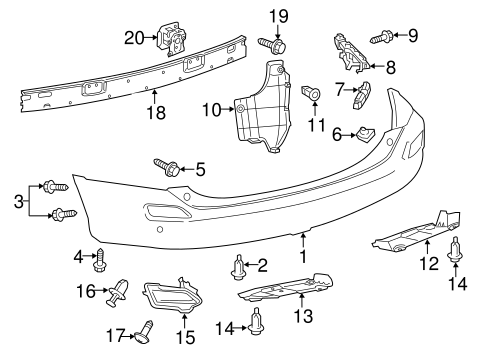

BODY/BUMPER & COMPONENTS - REAR for 2014 Toyota RAV4 #1
No. Part # Part # / Description List Price Price
1 52150-0R110 52150-0R110 / Bumper Cover

2013-2015, W/O REVERSE SENSORS, W/O REVERSE SENSORS

$254.56 $190.92
1 52150-0R120 52150-0R120 / Bumper Cover

2013-2015, W/REVERSE SENSORS, W/REVERSE SENSORS

$254.56 $190.92
2 52161-02020 52161-02020 / Bumper Cover Clip

2013-2015

$2.47 $1.85
3 75392-42030 75392-42030 / Bumper Cover Retainer

Bumper Cover Retainer, LEFT

2013-2015

$6.15 $4.61
3 75392-42030 75392-42030 / Bumper Cover Retainer

Bumper Cover Retainer, RIGHT

2013-2015

$6.15 $4.61
4 90159-60415 90159-60415 / Bumper Cover Screw

Bumper Cover Screw, LEFT

2013-2015

$1.06 $0.80
4 90159-60415 90159-60415 / Bumper Cover Screw

Bumper Cover Screw, RIGHT

2013-2015

$1.06 $0.80
5 90109-06375 90109-06375 / Bumper Cover Bolt

Bumper Cover Bolt, RIGHT

2013-2015

$1.06 $0.80
5 90109-06375 90109-06375 / Bumper Cover Bolt

Bumper Cover Bolt, LEFT

2013-2015

$1.06 $0.80
6 90183-05040 90183-05040 / Side Seal Nut

Bumper Cover Nut, LEFT

2013-2015

$1.06 $0.80
6 90183-05040 90183-05040 / Side Seal Nut

Bumper Cover Nut, RIGHT

2013-2015

$1.06 $0.80
7 52562-0R030 52562-0R030 / Upper Retainer

Upper Retainer, RIGHT

2013-2015

$33.85 $25.39
7 52563-0R030 52563-0R030 / Upper Retainer

Upper Retainer, LEFT

2013-2015

$33.85 $25.39
8 52155-0R030 52155-0R030 / Side Support

Side Support, RIGHT

2013-2015

$32.93 $24.70
8 52156-0R030 52156-0R030 / Side Support

Side Support, LEFT

2013-2015

$32.93 $24.70
9 90159-A0034 90159-A0034 / Side Support Retainer Screw

Side Support Screw, RIGHT

2013-2015

$0.83 $0.62
9 90159-A0034 90159-A0034 / Side Support Retainer Screw

Side Support Screw, LEFT

2013-2015

$0.83 $0.62
10 52592-0R030 52592-0R030 / Side Seal

Side Seal, LEFT

2013-2015

$36.06 $27.05
10 52591-0R030 52591-0R030 / Side Seal

Side Seal, RIGHT

2013-2015

$36.06 $27.05
11 90189-A0002 90189-A0002 / Fender Liner Grommet

Side Seal Grommet, LEFT

2013-2015

$1.12 $0.84
11 90189-A0002 90189-A0002 / Fender Liner Grommet

Side Seal Grommet, RIGHT

2013-2015

$1.12 $0.84
12 58723-0R010 58723-0R010 / Lower Cover

Lower Cover, RIGHT

2013-2015

$67.15 $50.36
13 58724-0R010 58724-0R010 / Lower Cover

Lower Cover, LEFT

2013-2015

$61.08 $45.81
14 52161-02020 52161-02020 / Bumper Cover Clip

Lower Cover Fastener, LEFT

2013-2015

$2.47 $1.85
14 52161-02020 52161-02020 / Bumper Cover Clip

Lower Cover Fastener, RIGHT

2013-2015

$2.47 $1.85
15 81490-0R010 81490-0R010 / Reflector

Reflector, LEFT

2013-2015

$52.15 $39.11
15 81480-0R020 81480-0R020 / Reflector

Reflector, RIGHT

2013-2015

$52.15 $39.11
16 90467-05170 90467-05170 / Lift Gate Trim Lower Clip

Reflector Clip, RIGHT

2013-2015

$1.15 $0.86
16 90467-05170 90467-05170 / Lift Gate Trim Lower Clip

Reflector Clip, LEFT

2013-2015

$1.15 $0.86
17 93567-A5014 93567-A5014 / Fog Lamp Assembly Screw

Reflector Screw, RIGHT

2013-2015

$0.98 $0.74
17 93567-A5014 93567-A5014 / Fog Lamp Assembly Screw

Reflector Screw, LEFT

2013-2015

$0.98 $0.74
18 52023-0R020 52023-0R020 / Impact Bar

2013-2015

$159.27 $119.45
19 90119-A0318 90119-A0318 / Reinforced Beam Bolt

Impact Bar Bolt, RIGHT

2013-2015

$1.38 $1.04
19 90119-A0318 90119-A0318 / Reinforced Beam Bolt

Impact Bar Bolt, LEFT

2013-2015

$1.38 $1.04
20 52016-0R020 52016-0R020 / Reinforced Bracket

Reinforced Bracket, LEFT

2013-2015

$67.61 $50.71
20 52015-0R020 52015-0R020 / Reinforced Bracket

Reinforced Bracket, RIGHT

2013-2015

$67.61 $50.71
No. Part # Part # / Description List Price Price
N/A 89341-0R060 89341-0R060 / Sensor Ultrasonic

Reverse Sensor

2013-2015

$228.57 $171.43
