FRONT SUSPENSION/SUSPENSION COMPONENTS for 2014 Toyota Land Cruiser

Select SUSPENSION COMPONENTS Part

2014 Toyota Land Cruiser

Change vehicle

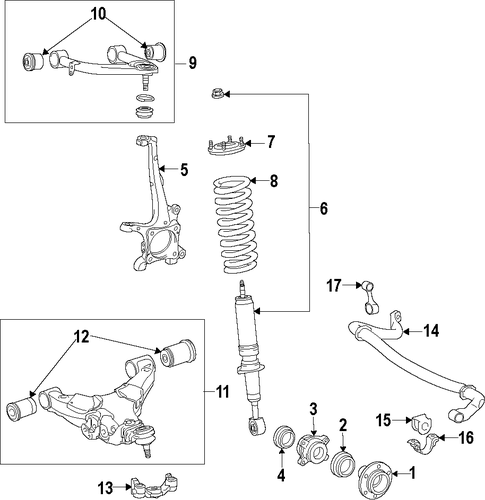

FRONT SUSPENSION/SUSPENSION COMPONENTS for 2014 Toyota Land Cruiser #1
No. Part # Part # / Description List Price Price
layer_9 48876-60021 48876-60021 / Cylinder

STABILIZER CONTROL CYLINDER; LAND CRUISER

$905.47 $664.12
layer_11 488A0-60010 488A0-60010 / Link Assembly

Control Arm

STABILIZER CONTROL ARM ASSY; LAND CRUISER

$901.94 $661.53
layer_14 48001-60020 48001-60020 / Adapter

STABILIZER CONTROL ADAPTER; LAND CRUISER

$120.96 $88.72
1 43502-60190 43502-60190 / Hub Assembly

Front Hub

LAND CRUISER

$218.20 $160.04
2 90312-87001 90312-87001 / Outer Seal

LAND CRUISER

$19.14 $14.03
3 43570-60031 43570-60031 / Bearing Assembly

Front Wheel Bearing

LAND CRUISER

$211.50 $155.12
4 90316-83001 90316-83001 / Inner Seal

LAND CRUISER

$45.45 $33.34
5 43211-60190 43211-60190 / Knuckle

LAND CRUISER; RIGHT

$644.41 $472.64
5 43212-60190 43212-60190 / Knuckle

LAND CRUISER; LEFT

$644.41 $472.64
6 48510-69395 48510-69395 / Shock Absorber

LAND CRUISER

$162.52 $119.21
7 48609-60070 48609-60070 / Shock Mount

LAND CRUISER

$99.04 $72.64
8 48131-60C81 48131-60C81 / Coil Spring

LAND CRUISER; LEFT

$164.49 $120.65
8 48131-60D21 48131-60D21 / Coil Spring

LAND CRUISER; RIGHT

$205.48 $150.71
9 48610-60060 48610-60060 / Upper Control Arm

LAND CRUISER; RIGHT

$390.36 $286.31
9 48630-60030 48630-60030 / Upper Control Arm

LAND CRUISER; LEFT

$390.36 $286.31
10 48632-60030 48632-60030 / Bushing

Bushings

LAND CRUISER

$45.28 $33.21
11 48068-60030 48068-60030 / Lower Control Arm

LAND CRUISER; RIGHT

$422.35 $309.78
11 48069-60030 48069-60030 / Lower Control Arm

LAND CRUISER; LEFT

$422.35 $309.78
12 48655-60040 48655-60040 / Lower Control Arm Rear Bushing

Bushings

LAND CRUISER; REAR

$123.43 $90.54
12 48654-60040 48654-60040 / Lower Control Arm Front Bushing

Bushings

LAND CRUISER; FRONT

$88.06 $64.59
13 48625-60020 48625-60020 / Control Arm Bracket

Attachment Kit

LAND CRUISER; RIGHT

$113.18 $83.01
13 48626-60020 48626-60020 / Control Arm Bracket

Attachment Kit

LAND CRUISER; LEFT

$113.18 $83.01
14 48804-60120 48804-60120 / Stabilizer Bar

LAND CRUISER

$198.25 $145.41
15 48815-60260 48815-60260 / Stabilizer Bar Bushing

Bushings

LAND CRUISER

$26.15 $19.18
16 48824-60180 48824-60180 / Stabilizer Bar Bracket

Bracket

LAND CRUISER

$30.49 $22.36
17 48820-60082 48820-60082 / Stabilizer Link

Link

LAND CRUISER; RIGHT

$105.76 $77.57
17 48810-60060 48810-60060 / Stabilizer Link

Link

LAND CRUISER; LEFT

$122.37 $89.76

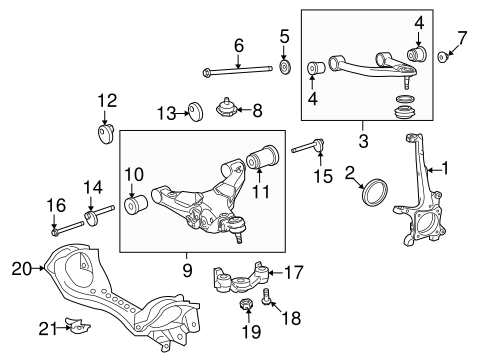

No. Part # Part # / Description List Price Price
1 43211-60190 43211-60190 / Knuckle

Knuckle, RIGHT

$644.41 $472.64
1 43212-60190 43212-60190 / Knuckle

Knuckle, LEFT

$644.41 $472.64
3 48610-60060 48610-60060 / Upper Control Arm

Upper Control Arm, RIGHT

$390.36 $286.31
3 48630-60030 48630-60030 / Upper Control Arm

Upper Control Arm, LEFT

$390.36 $286.31
4 48632-60030 48632-60030 / Bushing

Upper Control Arm Bushing, LEFT

$45.28 $33.21
4 48632-60030 48632-60030 / Bushing

Upper Control Arm Bushing, RIGHT

$45.28 $33.21
5 90948-02194 90948-02194 / Upper Control Arm Retainer

Upper Control Arm Retainer, LEFT

$20.23 $14.84
5 90948-02194 90948-02194 / Upper Control Arm Retainer

Upper Control Arm Retainer, RIGHT

$20.23 $14.84
6 90105-16086 90105-16086 / Upper Control Arm Bolt

Upper Control Arm Bolt, RIGHT

$14.22 $10.43
6 90105-16086 90105-16086 / Upper Control Arm Bolt

Upper Control Arm Bolt, LEFT

$14.22 $10.43
7 90178-A0084 90178-A0084 / Upper Control Arm Nut

Upper Control Arm Nut, RIGHT

$1.87 $1.37
7 90178-A0084 90178-A0084 / Upper Control Arm Nut

Upper Control Arm Nut, LEFT

$1.87 $1.37
8 48304-60140 48304-60140 / Spring Bumper

Spring Bumper, RIGHT

$21.58 $15.82
8 48304-60140 48304-60140 / Spring Bumper

Spring Bumper, LEFT

$21.58 $15.82
9 48069-60030 48069-60030 / Lower Control Arm

Lower Control Arm, LEFT

$422.35 $309.78
9 48068-60030 48068-60030 / Lower Control Arm

Lower Control Arm, RIGHT

$422.35 $309.78
10 48654-60040 48654-60040 / Lower Control Arm Front Bushing

Lower Control Arm Front Bushing, RIGHT

$88.06 $64.59
10 48654-60040 48654-60040 / Lower Control Arm Front Bushing

Lower Control Arm Front Bushing, LEFT

$88.06 $64.59
11 48655-60040 48655-60040 / Lower Control Arm Rear Bushing

Lower Control Arm Rear Bushing, LEFT

$123.43 $90.54
11 48655-60040 48655-60040 / Lower Control Arm Rear Bushing

Lower Control Arm Rear Bushing, RIGHT

$123.43 $90.54
12 48452-34011 48452-34011 / Adjust Cam

Adjust Cam, RIGHT

FRONT

$25.28 $18.54
12 48452-34011 48452-34011 / Adjust Cam

Adjust Cam, LEFT

FRONT

$25.28 $18.54
13 48198-34010 48198-34010 / Adjust Cam

Adjust Cam, LEFT

REAR

$13.99 $10.26
13 48198-34010 48198-34010 / Adjust Cam

Adjust Cam, RIGHT

REAR

$13.99 $10.26
14 48409-34041 48409-34041 / Adjust Bolt

Adjust Bolt, RIGHT

FRONT

$20.72 $15.19
14 48409-34041 48409-34041 / Adjust Bolt

Adjust Bolt, LEFT

FRONT

$20.72 $15.19
15 48190-34010 48190-34010 / Adjust Bolt

Adjust Bolt, LEFT

REAR

$27.84 $20.42
15 48190-34010 48190-34010 / Adjust Bolt

Adjust Bolt, RIGHT

REAR

$27.84 $20.42
16 90119-18006 90119-18006 / Adjust Bolt Bolt

Adjust Bolt Bolt, LEFT

$10.72 $7.86
16 90119-18006 90119-18006 / Adjust Bolt Bolt

Adjust Bolt Bolt, RIGHT

$10.72 $7.86
17 48625-60020 48625-60020 / Control Arm Bracket

Control Arm Bracket, RIGHT

$113.18 $83.01
17 48626-60020 48626-60020 / Control Arm Bracket

Control Arm Bracket, LEFT

$113.18 $83.01
18 90105-18011 90105-18011 / Control Arm Bracket Bolt

Control Arm Bracket Bolt, RIGHT

$6.92 $5.08
18 90105-18011 90105-18011 / Control Arm Bracket Bolt

Control Arm Bracket Bolt, LEFT

$6.92 $5.08
19 90171-18004 90171-18004 / Control Arm Bracket Nut

Control Arm Bracket Castle Nut, RIGHT

$1.84 $1.35
19 90171-18004 90171-18004 / Control Arm Bracket Nut

Control Arm Bracket Castle Nut, LEFT

$1.84 $1.35
20 51201-60180 51201-60180 / Suspension Cross-Member

$1,598.69 $1,172.58
21 51602-60010 51602-60010 / Stopper

Stopper, LEFT

$48.44 $35.53
21 51601-60010 51601-60010 / Stopper

Stopper, RIGHT

$48.44 $35.53
