ELECTRICAL/SENDERS for 2014 Toyota Highlander

Select SENDERS Part

2014 Toyota Highlander

Change vehicle

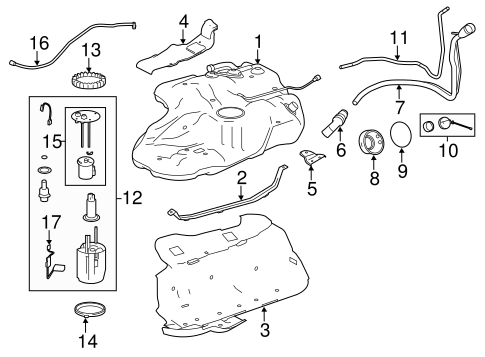

No. Part # Part # / Description List Price Price
1 77001-0E060 77001-0E060 / Fuel Tank

W/O HYBRID ENGINE

- -
2 77601-0E030 77601-0E030 / Fuel Tank Strap

Fuel Tank Strap, RIGHT

W/O HYBRID ENGINE

$85.22 $62.50
2 77602-0E030 77602-0E030 / Fuel Tank Strap

Fuel Tank Strap, LEFT

W/O HYBRID ENGINE

$141.48 $103.77
3 77606-0E040 77606-0E040 / Tank Shield

W/O HYBRID ENGINE

$157.74 $115.69
4 77114-0E050 77114-0E050 / Plate

W/O HYBRID ENGINE

$48.44 $35.53
5 77142-0E050 77142-0E050 / Bracket

W/O HYBRID ENGINE

- -
6 77213-0E020 77213-0E020 / Hose

W/O HYBRID ENGINE

$36.17 $26.54
7 77201-0E100 77201-0E100 / Filler Pipe

W/O HYBRID ENGINE

$206.90 $151.76
8 77291-0E050 77291-0E050 / Pipe Shield

W/O HYBRID ENGINE

$32.18 $23.61
9 77391-02040 77391-02040 / Pocket O-Ring

Pipe Shield Ring

W/O HYBRID ENGINE, INNER

$2.93 $2.15
9 77391-12060 77391-12060 / Filler Cap Outer Seal

Pipe Shield Ring

W/O HYBRID ENGINE, OUTER

$3.51 $2.57
10 77300-07030 77300-07030 / Filler Cap

W/O HYBRID ENGINE

$22.34 $16.38
11 77226-0E040 77226-0E040 / Breather Tube

W/O HYBRID ENGINE

$89.93 $65.97
12 77020-0E111 77020-0E111 / Fuel Pump Assembly

W/O HYBRID ENGINE, 3.5 LITER

$540.43 $396.38
12 77020-0E111 77020-0E111 / Fuel Pump Assembly

Fuel Pump

HIGHLANDER; 3.5L; FUEL PUMP ASSY; W/O HYBRID

$540.43 $396.38
13 77144-08010 77144-08010 / Retainer

Fuel Pump Assembly Retainer

W/O HYBRID ENGINE

$58.70 $43.05
14 77158-08010 77158-08010 / Fuel Pump Assembly Support

W/O HYBRID ENGINE

$32.50 $23.84
15 77024-0E091 77024-0E091 / Suction Tube

W/O HYBRID ENGINE, 3.5 LITER

$122.03 $89.50
16 77209-0E050 77209-0E050 / Tube

W/O HYBRID ENGINE

$27.27 $20.00
17 83320-0E030 83320-0E030 / Fuel Gauge Sending Unit

Fuel Sender Unit

W/O HYBRID ENGINE

$86.40 $63.37
17 83320-0E030 83320-0E030 / Fuel Gauge Sending Unit

HIGHLANDER; W/O HYBRID

$86.40 $63.37
No. Part # Part # / Description List Price Price
layer_19 83530-0E010 83530-0E010 / Oil Pressure Sending Unit

HIGHLANDER

$48.39 $35.49
