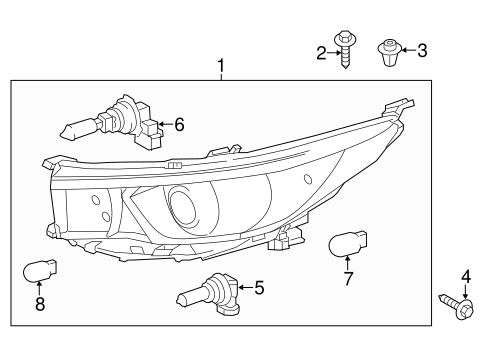

ELECTRICAL/HEADLAMP COMPONENTS for 2014 Toyota Highlander

Select HEADLAMP COMPONENTS Part

2014 Toyota Highlander

Change vehicle

No. Part # Part # / Description List Price Price
1 81110-0E180 81110-0E180 / Headlamp Assembly

Headlamp Assembly, RIGHT

W/O SMOKE ACCENT

$393.01 $288.26
1 81110-0E250 81110-0E250 / Headlamp Assembly

Headlamp Assembly, RIGHT

W/SMOKE ACCENT

$393.01 $288.26
1 81150-0E180 81150-0E180 / Headlamp Assembly

Headlamp Assembly, LEFT

W/O SMOKE ACCENT

$393.01 $288.26
1 81150-0E250 81150-0E250 / Headlamp Assembly

Headlamp Assembly, LEFT

W/SMOKE ACCENT

$393.01 $288.26
1 81150-0E180 81150-0E180 / Headlamp Assembly

Composite Assembly

HIGHLANDER; LEFT; LE, XLE

$393.01 $288.26
1 81110-0E180 81110-0E180 / Headlamp Assembly

Composite Assembly

HIGHLANDER; RIGHT; LE, XLE

$393.01 $288.26
2 90159-A0034 90159-A0034 / Side Support Retainer Screw

Headlamp Assembly Screw, LEFT

$0.86 $0.63
2 90159-A0034 90159-A0034 / Side Support Retainer Screw

Headlamp Assembly Screw, RIGHT

$0.86 $0.63
3 90189-05142 90189-05142 / Headlamp Assembly Grommet

Headlamp Assembly Grommet, LEFT

$1.15 $0.84
3 90189-05142 90189-05142 / Headlamp Assembly Grommet

Headlamp Assembly Grommet, RIGHT

$1.15 $0.84
4 90105-A0076 90105-A0076 / Headlamp Assembly Bolt

Headlamp Assembly Bolt, RIGHT

$0.86 $0.63
4 90105-A0076 90105-A0076 / Headlamp Assembly Bolt

Headlamp Assembly Bolt, LEFT

$0.86 $0.63
5 90981-13075 90981-13075 / Fog Lamp Bulb

Low Beam Bulb, RIGHT

$21.72 $15.93
5 90981-13075 90981-13075 / Fog Lamp Bulb

Low Beam Bulb, LEFT

$21.72 $15.93
5 90981-13075 90981-13075 / Fog Lamp Bulb

Headlamp Bulb

HIGHLANDER; 12V55W

$21.72 $15.93
6 90981-13046 90981-13046 / High Beam Bulb

High Beam Bulb, RIGHT

$23.99 $17.59
6 90981-13046 90981-13046 / High Beam Bulb

High Beam Bulb, LEFT

$23.99 $17.59
6 90981-13046 90981-13046 / High Beam Bulb

Headlamp Bulb

HIGHLANDER; 12V65W

$23.99 $17.59
7 90981-15024 90981-15024 / Bulb

Signal Bulb, RIGHT

$9.86 $7.22
7 90981-15024 90981-15024 / Bulb

Signal Bulb, LEFT

$9.86 $7.22
7 90981-15024 90981-15024 / Bulb

Exterior Bulbs

HIGHLANDER; FRONT TURN SIGNAL

$9.86 $7.22
8 90981-11069 90981-11069 / Marker Lamp Bulb

Marker Lamp Bulb, LEFT

$3.22 $2.35
8 90981-11069 90981-11069 / Marker Lamp Bulb

Marker Lamp Bulb, RIGHT

$3.22 $2.35

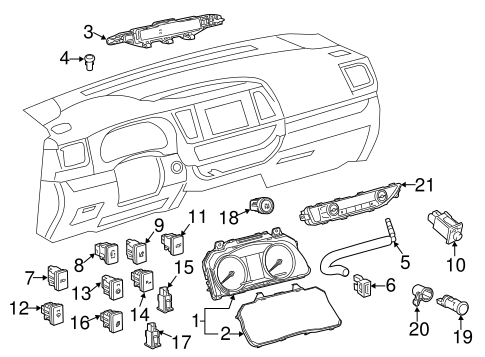

No. Part # Part # / Description List Price Price
1 83800-0E530 83800-0E530 / Speedo Cluster

3.5 LITER, W/O HYBRID, W/8 DISPLAY

- -
1 83800-0E540 83800-0E540 / Speedo Cluster

3.5 LITER, W/O HYBRID, W/O 8 DISPLAY

- -
1 83800-0E540 83800-0E540 / Speedo Cluster

Instrument Cluster

HIGHLANDER; 3.5L; LE, XLE; W/O 6 SPEAKER AUDIO SYS

- -
1 83800-0E530 83800-0E530 / Speedo Cluster

Instrument Cluster

HIGHLANDER; 3.5L; LE, XLE; W/6 SPEAKER AUDIO SYS

- -
2 83852-0E500 83852-0E500 / Cluster Lens

$56.60 $41.52
3 83910-0E070 83910-0E070 / Clock

HIGHLANDER; W/O HYBRID

$331.40 $243.06
4 89121-0E060 89121-0E060 / Sentinel Sensor

Light Sensor

$183.57 $134.64
4 89121-0E060 89121-0E060 / Sentinel Sensor

HIGHLANDER; FROM 6/14

$183.57 $134.64
5 88897-07010 88897-07010 / Aspirator

W/O CLIMATE CONTROL

$4.53 $3.32
5 87201-0E130 87201-0E130 / Aspirator

W/CLIMATE CONTROL

$16.49 $12.10
6 88625-06040 88625-06040 / Air Temp Sensor

Thermistor

W/CLIMATE CONTROL

- -
6 88625-06040 88625-06040 / Air Temp Sensor

In-Car Sensor

HIGHLANDER; FRONT

- -
7 84153-0E011 84153-0E011 / Control Switch

AUTO HIGH BEAM

$83.12 $60.96
8 84470-0R011 84470-0R011 / Switch

Control Switch

BLIND SPOT MONITOR

$94.07 $68.99
9 84978-0E011 84978-0E011 / Control Switch

LANE DEPARTURE

$83.12 $60.96
10 84930-0E030 84930-0E030 / Control Switch

Control Switch, RIGHT

POWER LIFT GATE

$72.20 $52.96
11 84930-0R011 84930-0R011 / Switch

Control Switch, LEFT

POWER LIFT GATE

$74.99 $55.00
11 84930-0R011 84930-0R011 / Switch

HIGHLANDER; FRONT

$74.99 $55.00
12 84871-0E041 84871-0E041 / Control Switch

WINDSHIELD DE-ICER

$84.53 $62.00
12 84871-0E041 84871-0E041 / Control Switch

Switch

HEATED MIRROR SWITCH; HIGHLANDER

$84.53 $62.00
13 84255-0E021 84255-0E021 / Control Switch

STEERING WHEEL HEAT

$94.07 $68.99
14 84490-0E011 84490-0E011 / Control Switch

REVERSE SENSOR

$74.62 $54.73
14 84490-0E011 84490-0E011 / Control Switch

Switch

HIGHLANDER

$74.62 $54.73
15 84746-0E030 84746-0E030 / Control Switch

TPMS SENSOR

$64.73 $47.48
15 84746-0E030 84746-0E030 / Control Switch

Switch

HIGHLANDER

$64.73 $47.48
16 84841-0E041 84841-0E041 / Control Switch

FUEL LID OPEN

$74.62 $54.73
16 84841-0E041 84841-0E041 / Control Switch

Switch

HIGHLANDER

$74.62 $54.73
17 84770-0E010 84770-0E010 / Control Switch

RADAR CRUISE CANCEL

$64.73 $47.48
18 89611-0R020 89611-0R020 / Power Switch

Start Button

W/O HYBRID ENGINE

$251.84 $184.71
18 89611-0R020 89611-0R020 / Power Switch

HIGHLANDER; W/O HYBRID

$251.84 $184.71
19 85530-06030 85530-06030 / Power Outlet

$40.68 $29.84
20 85535-0R030 85535-0R030 / Power Outlet Cover

$12.35 $9.06
21 55900-0E410 55900-0E410 / Dash Control Unit

Temp Control

W/O CLIMATE CONTROL

$746.29 $547.38
21 55900-0E400 55900-0E400 / Dash Control Unit

Temp Control

W/CLIMATE CONTROL

$746.29 $547.38
21 55900-0E400 55900-0E400 / Dash Control Unit

HIGHLANDER; W/ATC; LE; W/PWR. FOLDING MIRRORS

$746.29 $547.38
21 55900-0E410 55900-0E410 / Dash Control Unit

HIGHLANDER; W/O ATC; W/O PWR. FOLDING MIRRORS

$746.29 $547.38
