BODY/FRAME & COMPONENTS for 2014 Toyota FJ Cruiser

Select FRAME & COMPONENTS Part

2014 Toyota FJ Cruiser

Change vehicle

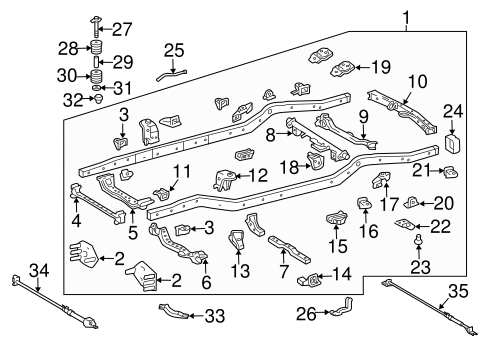

BODY/FRAME & COMPONENTS for 2014 Toyota FJ Cruiser #1
No. Part # Part # / Description List Price Price
1 51001-35A71 51001-35A71 / Frame Assembly

4WD

$5,901.04 $4,328.16
1 51001-35A81 51001-35A81 / Frame Assembly

2WD

$5,901.04 $4,328.16
2 51136-35070 51136-35070 / Frame Assembly Mount Plate

Frame Assembly Mount Plate, LEFT

$33.27 $24.40
2 51135-35060 51135-35060 / Frame Assembly Mount Plate

Frame Assembly Mount Plate, RIGHT

$33.27 $24.40
3 51701-60130 51701-60130 / Mount Bracket

Frame Assembly Support Bracket, RIGHT

$33.65 $24.68
3 51701-60130 51701-60130 / Mount Bracket

Frame Assembly Support Bracket, LEFT

$33.65 $24.68
4 51021-60041 51021-60041 / Cross-Member

#1

$396.13 $290.54
5 51201-60190 51201-60190 / Cross-Member

#2

$835.42 $612.75
6 51202-60300 51202-60300 / Cross-Member

#3

$906.01 $664.52
7 51203-60270 51203-60270 / Cross-Member

#4, 4WD

$234.55 $172.03
7 51230-35070 51230-35070 / Cross-Member

#4, 2WD

$692.13 $507.64
8 51205-35281 51205-35281 / Cross-Member

#5

$651.06 $477.52
9 51206-60061 51206-60061 / Cross-Member

#6

$537.34 $394.12
10 51209-35222 51209-35222 / Cross-Member

#7

$462.82 $339.45
11 51401-35440 51401-35440 / Mount Bracket

Mount Bracket, RIGHT

ENGINE MOUNTING

$80.65 $59.16
11 51402-60110 51402-60110 / Mount Bracket

Mount Bracket, LEFT

ENGINE MOUNTING

$85.94 $63.04
12 51501-60050 51501-60050 / Mount Bracket

Mount Bracket, RIGHT

SUSPENSION ARM

$615.42 $451.39
12 51502-60050 51502-60050 / Mount Bracket

Mount Bracket, LEFT

SUSPENSION ARM

$615.42 $451.39
13 51703-35180 51703-35180 / Mount Bracket

Mount Bracket, RIGHT

#2 CAB MOUNTING

$113.18 $83.01
13 51704-35160 51704-35160 / Mount Bracket

Mount Bracket, LEFT

#2 CAB MOUNTING

$113.18 $83.01
14 51026-60030 51026-60030 / Mount Bracket

Mount Bracket, LEFT

#3 CROSSMEMBER

$205.84 $150.98
14 51025-60030 51025-60030 / Mount Bracket

Mount Bracket, RIGHT

#3 CROSSMEMBER

$205.84 $150.98
15 5150D-60020 5150D-60020 / Mount Bracket

Mount Bracket, LEFT

CONTROL LINK SUPPORT

$62.61 $45.92
15 5150C-60030 5150C-60030 / Mount Bracket

Mount Bracket, RIGHT

CONTROL LINK SUPPORT

$62.61 $45.92
16 51708-35090 51708-35090 / Mount Bracket

Mount Bracket, LEFT

#4 CAB MOUNTING

$54.10 $39.69
16 51707-35090 51707-35090 / Mount Bracket

Mount Bracket, RIGHT

#4 CAB MOUNTING

$54.10 $39.69
17 51028-60020 51028-60020 / Mount Bracket

Mount Bracket, LEFT

#4 CROSSMEMBER

$91.60 $67.19
17 51027-60010 51027-60010 / Mount Bracket

Mount Bracket, RIGHT

#4 CROSSMEMBER

$91.60 $67.19
18 77512-35121 77512-35121 / Mount Bracket

FUEL TANK

$48.82 $35.81
19 51541-35031 51541-35031 / Mount Bracket

Mount Bracket, LEFT

REAR SPRING SUPPORT

$93.38 $68.49
19 51531-35031 51531-35031 / Mount Bracket

Mount Bracket, RIGHT

REAR SPRING SUPPORT

$88.06 $64.59
20 51593-35030 51593-35030 / Mount Bracket

Mount Bracket, RIGHT

REAR SPRING BUMPER

$24.48 $17.96
20 51594-35030 51594-35030 / Mount Bracket

Mount Bracket, LEFT

REAR SPRING BUMPER

$24.48 $17.96
21 51706-35060 51706-35060 / Mount Bracket

Mount Bracket, LEFT

REAR BODY MOUNTING

$87.00 $63.81
21 51709-35040 51709-35040 / Mount Bracket

Mount Bracket, RIGHT

REAR BODY MOUNTING

$115.30 $84.57
22 51095-60030 51095-60030 / Tie Down Hook

$103.98 $76.26
23 91642-81235 91642-81235 / Tie Down Hook Bolt

$2.56 $1.88
24 51391-35090 51391-35090 / End Cap

Gusset, RIGHT

$22.96 $16.84
24 51392-35080 51392-35080 / End Cap

Gusset, LEFT

$22.96 $16.84
25 17576-67050 17576-67050 / Bracket

EXHAUST PIPE

$20.06 $14.71
26 57683-35031 57683-35031 / Bracket

FUEL TANK MOUNTING

$30.92 $22.68
27 52217-35191 52217-35191 / Mount Bolt

Bracket Mount Bolt, RIGHT

#4 CAB MOUNTING

$13.79 $10.11
27 52217-35191 52217-35191 / Mount Bolt

Bracket Mount Bolt, LEFT

#4 CAB MOUNTING

$13.79 $10.11
27 52217-35180 52217-35180 / Mount Bolt

Bracket Mount Bolt, LEFT

SUPPORT BRACKET

$13.79 $10.11
27 52217-35180 52217-35180 / Mount Bolt

Bracket Mount Bolt, RIGHT

SUPPORT BRACKET

$13.79 $10.11
28 52205-35160 52205-35160 / Bracket Upper Bushing

Bracket Upper Bushing, LEFT

#4 CAB MOUNTING

$60.83 $44.62
28 52201-35100 52201-35100 / Bracket Upper Bushing

Bracket Upper Bushing, LEFT

SUPPORT BRACKET

$47.41 $34.77
28 52205-35160 52205-35160 / Bracket Upper Bushing

Bracket Upper Bushing, RIGHT

#4 CAB MOUNTING

$60.83 $44.62
28 52207-35050 52207-35050 / Bracket Upper Bushing

Bracket Upper Bushing, RIGHT

REAR BODY MOUNTING

$54.10 $39.69
28 52201-35100 52201-35100 / Bracket Upper Bushing

Bracket Upper Bushing, RIGHT

SUPPORT BRACKET

$47.41 $34.77
28 52203-35210 52203-35210 / Bracket Upper Bushing

Bracket Upper Bushing, RIGHT

#2 CAB MOUNTING

$60.83 $44.62
28 52207-35050 52207-35050 / Bracket Upper Bushing

Bracket Upper Bushing, LEFT

REAR BODY MOUNTING

$54.10 $39.69
28 52203-35210 52203-35210 / Bracket Upper Bushing

Bracket Upper Bushing, LEFT

#2 CAB MOUNTING

$60.83 $44.62
29 90440-18011 90440-18011 / Bracket Sleeve

Bracket Sleeve, LEFT

SUPPORT BRACKET

$23.79 $17.45
29 90440-18011 90440-18011 / Bracket Sleeve

Bracket Sleeve, RIGHT

SUPPORT BRACKET

$23.79 $17.45
29 90440-31002 90440-31002 / Mount Bolt Collar

Bracket Sleeve, RIGHT

#2 CAB MOUNTING

$40.23 $29.50
29 90440-31002 90440-31002 / Mount Bolt Collar

Bracket Sleeve, LEFT

#4 CAB MOUNTING

$40.23 $29.50
30 52204-35120 52204-35120 / Bracket Lower Bushing

Bracket Lower Bushing, LEFT

#2 CAB MOUNTING

$54.10 $39.69
30 52208-35050 52208-35050 / Bracket Lower Bushing

Bracket Lower Bushing, RIGHT

REAR BODY MOUNTING

$47.41 $34.77
30 52204-35120 52204-35120 / Bracket Lower Bushing

Bracket Lower Bushing, RIGHT

#2 CAB MOUNTING

$54.10 $39.69
30 52206-35040 52206-35040 / Bracket Lower Bushing

Bracket Lower Bushing, RIGHT

#4 CAB MOUNTING

$47.41 $34.77
30 52206-35040 52206-35040 / Bracket Lower Bushing

Bracket Lower Bushing, LEFT

#4 CAB MOUNTING

$47.41 $34.77
30 52208-35050 52208-35050 / Bracket Lower Bushing

Bracket Lower Bushing, LEFT

REAR BODY MOUNTING

$47.41 $34.77
30 52202-35090 52202-35090 / Bracket Lower Bushing

Bracket Lower Bushing, LEFT

SUPPORT BRACKET

$30.28 $22.22
30 52202-35090 52202-35090 / Bracket Lower Bushing

Bracket Lower Bushing, RIGHT

SUPPORT BRACKET

$30.28 $22.22
31 52216-60040 52216-60040 / Lower Mount Stopper

Bracket Washer, LEFT

$10.20 $7.48
31 52216-60040 52216-60040 / Lower Mount Stopper

Bracket Washer, RIGHT

$10.20 $7.48
32 90177-A0012 90177-A0012 / Top Nut

Bracket Nut, LEFT

$1.35 $0.99
32 90177-A0012 90177-A0012 / Top Nut

Bracket Nut, RIGHT

$1.35 $0.99
33 51226-35060 51226-35060 / Suspension Support

Lower Bracket, LEFT

FRONT SUSPENSION

$107.89 $79.13
33 51225-35040 51225-35040 / Suspension Support

Lower Bracket, RIGHT

FRONT SUSPENSION

$107.89 $79.13
34 51280-35010 51280-35010 / Damper

FRONT SUSPENSION

$954.98 $700.44
35 51280-35020 51280-35020 / Damper

REAR SUSPENSION

$1,039.85 $762.68
