BODY/PASSENGER SEAT COMPONENTS for 2014 Toyota Avalon

Select PASSENGER SEAT COMPONENTS Part

2014 Toyota Avalon

Change vehicle

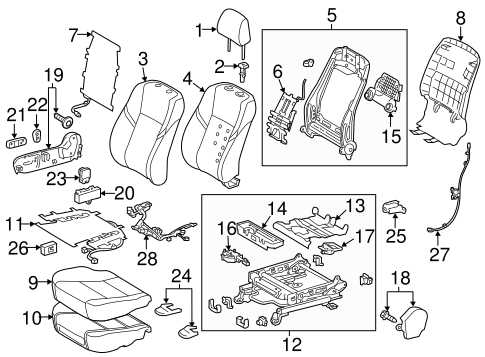

BODY/PASSENGER SEAT COMPONENTS for 2014 Toyota Avalon #1
No. Part # Part # / Description List Price Price
1 71910-07140-A5 71910-07140-A5 / Headrest

W/O CLIMATE CONTROL, ALMOND

$438.57 $321.68
1 71910-07140-B4 71910-07140-B4 / Headrest

W/O CLIMATE CONTROL, GRAY

$438.57 $321.68
1 71910-07140-C6 71910-07140-C6 / Headrest

W/O CLIMATE CONTROL, BLACK

$438.57 $321.68
2 71930-47020-B1 71930-47020-B1 / Headrest Guide

W/O CLIMATE CONTROL, LOCKING, GRAY

$15.20 $11.15
2 71930-47020-A7 71930-47020-A7 / Headrest Guide

W/O CLIMATE CONTROL, LOCKING, ALMOND

$15.14 $11.10
2 71931-47020-A7 71931-47020-A7 / Headrest Guide

W/O CLIMATE CONTROL, NON-LOCKING, ALMOND

$9.14 $6.70
2 71931-47020-B1 71931-47020-B1 / Headrest Guide

W/O CLIMATE CONTROL, NON-LOCKING, GRAY

$9.22 $6.76
2 71931-47020-C0 71931-47020-C0 / Headrest Guide

W/O CLIMATE CONTROL, NON-LOCKING, BLACK

$9.22 $6.76
3 71073-07301-A2 71073-07301-A2 / Seat Back Cover

W/O CLIMATE CONTROL, ALMOND

$975.95 $715.82
3 71073-07301-B2 71073-07301-B2 / Seat Back Cover

W/O CLIMATE CONTROL, GRAY

$975.95 $715.82
3 71073-07301-C2 71073-07301-C2 / Seat Back Cover

W/O CLIMATE CONTROL, BLACK

$975.95 $715.82
4 71551-07050 71551-07050 / Seat Back Pad

W/O CLIMATE CONTROL

$197.71 $145.01
5 71103-07020 71103-07020 / Seat Back Frame

W/O CLIMATE CONTROL

$541.14 $396.90
6 71630-06380 71630-06380 / Seat Back Frame Spring

Lumbar Support

W/O CLIMATE CONTROL

$97.63 $71.61
7 87530-06071 87530-06071 / Seat Back Heater

W/O CLIMATE CONTROL

$310.19 $227.52
8 71705-07071-A0 71705-07071-A0 / Seat Back Panel

W/O CLIMATE CONTROL, ALMOND

$176.62 $129.54
9 71071-07132-A3 71071-07132-A3 / Cushion Cover

W/O CLIMATE CONTROL, ALMOND

$920.38 $675.06
9 71071-07131-B3 71071-07131-B3 / Cushion Cover

W/O CLIMATE CONTROL, GRAY

$920.38 $675.06
9 71071-07131-C3 71071-07131-C3 / Cushion Cover

W/O CLIMATE CONTROL, BLACK

$920.38 $675.06
10 71511-07010 71511-07010 / Seat Cushion Pad

W/O CLIMATE CONTROL

$160.93 $118.04
11 87510-06091 87510-06091 / Seat Cushion Heater

W/O CLIMATE CONTROL

$310.19 $227.52
12 71110-07120 71110-07120 / Seat Adjuster

W/O CLIMATE CONTROL

$732.16 $537.01
13 71610-06380 71610-06380 / Spring Assembly

Support Spring

W/O CLIMATE CONTROL

$72.15 $52.91
14 71861-07040-C0 71861-07040-C0 / Inner Finish Panel

W/O CLIMATE CONTROL

$33.47 $24.55
15 71811-06190-C0 71811-06190-C0 / Outer Finish Panel

W/O CLIMATE CONTROL

$109.64 $80.42
16 84922-08010 84922-08010 / Switch

Adjust Switch

W/O CLIMATE CONTROL

$153.52 $112.59
17 84921-08040-C0 84921-08040-C0 / Slide Knob

Adjust Switch Knob

W/O CLIMATE CONTROL, FRONT

$15.63 $11.47
17 84921-08040-C0 84921-08040-C0 / Slide Knob

Adjuster Switch

AVALON, AVALON HYBRID; RIGHT

$15.63 $11.47
19 72123-07040-C0 72123-07040-C0 / Track End Cover

W/O CLIMATE CONTROL, FRONT, OUTER

$11.58 $8.49
19 72127-07030-C0 72127-07030-C0 / Track End Cover

W/O CLIMATE CONTROL, FRONT, INNER

$10.37 $7.61
20 72157-07030-C0 72157-07030-C0 / Track End Cover

W/O CLIMATE CONTROL, REAR, INNER

$13.79 $10.11
20 72137-07040-C0 72137-07040-C0 / Track End Cover

W/O CLIMATE CONTROL, REAR, OUTER

$15.92 $11.68
21 87501-06010 87501-06010 / Heater Control

W/O CLIMATE CONTROL

- -
22 82191-06520 82191-06520 / Harness

W/O CLIMATE CONTROL, UPPER

$22.07 $16.19
23 82191-07090 82191-07090 / Harness

W/O CLIMATE CONTROL, LOWER

$114.47 $83.96
BODY/PASSENGER SEAT COMPONENTS for 2014 Toyota Avalon #2
No. Part # Part # / Description List Price Price
1 71910-07160-C0 71910-07160-C0 / Headrest

W/CLIMATE CONTROL, BLACK

$438.57 $321.68
1 71910-07160-A0 71910-07160-A0 / Headrest

W/CLIMATE CONTROL, ALMOND

$438.57 $321.68
1 71910-07160-B0 71910-07160-B0 / Headrest

W/CLIMATE CONTROL, GRAY

$438.57 $321.68
2 71930-47020-C0 71930-47020-C0 / Headrest Guide

W/CLIMATE CONTROL, LOCKING, BLACK

$15.20 $11.15
3 71073-07311-B2 71073-07311-B2 / Seat Back Cover

W/CLIMATE CONTROL, GRAY

$975.95 $715.82
3 71073-07311-C2 71073-07311-C2 / Seat Back Cover

W/CLIMATE CONTROL, BLACK

$975.95 $715.82
3 71073-07311-A3 71073-07311-A3 / Seat Back Cover

W/CLIMATE CONTROL, ALMOND

$975.95 $715.82
4 71551-07060 71551-07060 / Seat Back Pad

W/CLIMATE CONTROL

$197.71 $145.01
5 71103-07010 71103-07010 / Seat Back Frame

W/CLIMATE CONTROL

$877.17 $643.37
7 87530-07021 87530-07021 / Seat Back Heater

W/CLIMATE CONTROL

$310.19 $227.52
8 71705-07071-C0 71705-07071-C0 / Seat Back Panel

W/CLIMATE CONTROL, BLACK

$176.62 $129.54
8 71705-07071-B0 71705-07071-B0 / Seat Back Panel

W/CLIMATE CONTROL, GRAY

$176.62 $129.54
9 71071-07142-B2 71071-07142-B2 / Cushion Cover

W/CLIMATE CONTROL, GRAY

$920.38 $675.06
9 71071-07142-A2 71071-07142-A2 / Cushion Cover

W/CLIMATE CONTROL, ALMOND

$920.38 $675.06
9 71071-07142-C2 71071-07142-C2 / Cushion Cover

W/CLIMATE CONTROL, BLACK

$920.38 $675.06
10 71511-07020 71511-07020 / Seat Cushion Pad

W/CLIMATE CONTROL

$197.71 $145.01
11 87510-07022 87510-07022 / Seat Cushion Heater

W/CLIMATE CONTROL

$310.19 $227.52
12 71110-07110 71110-07110 / Seat Adjuster

W/CLIMATE CONTROL

$1,025.71 $752.31
12 71110-07110 71110-07110 / Seat Adjuster

Frame

AVALON, AVALON HYBRID; RIGHT; LIMITED

$1,025.71 $752.31
13 71610-07010 71610-07010 / Support Spring

W/CLIMATE CONTROL

$54.10 $39.69
14 71703-07010 71703-07010 / Panel

W/CLIMATE CONTROL

$100.10 $73.42
15 85867-07010 85867-07010 / Blower Assembly

Blower

W/CLIMATE CONTROL, SEAT BACK

$148.55 $108.96
16 85862-07011 85862-07011 / Blower Motor

Blower

W/CLIMATE CONTROL, SEAT CUSHION

$232.73 $170.70
17 85866-07010 85866-07010 / Duct Assembly

Duct

W/CLIMATE CONTROL

$24.51 $17.97
18 71861-07030-C0 71861-07030-C0 / Inner Finish Panel

W/CLIMATE CONTROL

$44.22 $32.43
19 71811-07070-C0 71811-07070-C0 / Outer Finish Panel

W/CLIMATE CONTROL

$109.64 $80.42
20 84922-60190 84922-60190 / Adjust Switch

W/CLIMATE CONTROL

$177.13 $129.92
22 84921-08030-C0 84921-08030-C0 / Recline Knob

Adjust Switch Knob

W/CLIMATE CONTROL, REAR

$10.54 $7.73
23 84920-08010-C0 84920-08010-C0 / Switch

Lumbar Switch

W/CLIMATE CONTROL

$77.46 $56.82
24 72123-07030-C0 72123-07030-C0 / Track End Cover

W/CLIMATE CONTROL, FRONT, OUTER

$11.58 $8.49
25 72137-07030-C0 72137-07030-C0 / Track End Cover

W/CLIMATE CONTROL, REAR, OUTER

$15.06 $11.04
27 82191-07070 82191-07070 / Harness

W/CLIMATE CONTROL, UPPER

$66.20 $48.56
28 82191-07061 82191-07061 / Harness

W/CLIMATE CONTROL, LOWER

$246.21 $180.58
