BRAKES/FRONT BRAKES for 2013 Toyota Sienna

Select FRONT BRAKES Part

2013 Toyota Sienna

Change vehicle

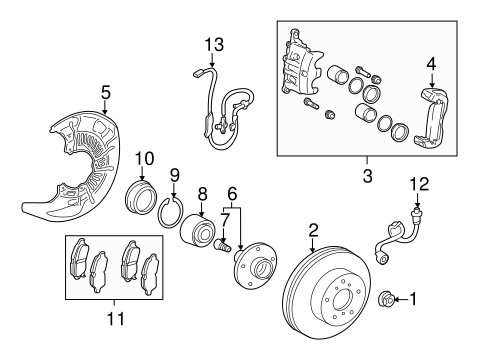

No. Part # Part # / Description List Price Price
1 90080-17238 90080-17238 / Axle Nut

Axle Nut, RIGHT

4WD

$8.19 $6.14
1 90080-17238 90080-17238 / Axle Nut

Axle Nut, LEFT

4WD

$8.19 $6.14
2 43512-0E030 43512-0E030 / Rotor

Rotor, LEFT

4WD

$79.56 $59.67
2 43512-0E030 43512-0E030 / Rotor

Rotor, RIGHT

4WD

$79.56 $59.67
2 43512-0E030 43512-0E030 / Rotor

SIENNA

$79.56 $59.67
3 47730-0E031 47730-0E031 / Caliper Assembly

Caliper, RIGHT

4WD

$420.90 $315.68
3 47750-0E031 47750-0E031 / Caliper Assembly

Caliper, LEFT

4WD

$420.90 $315.68
3 47730-0E031 47730-0E031 / Caliper Assembly

Caliper

SIENNA; RIGHT

$420.90 $315.68
4 47721-0E030 47721-0E030 / Caliper Mount

Carrier, RIGHT

4WD

$165.38 $124.04
4 47722-0E030 47722-0E030 / Caliper Mount

Carrier, LEFT

4WD

$165.38 $124.04
5 47704-0T010 47704-0T010 / Dust Shield

Splash Shield, LEFT

4WD

$33.27 $24.95
5 47703-0T010 47703-0T010 / Dust Shield

Splash Shield, RIGHT

4WD

$33.27 $24.95
5 47704-0T010 47704-0T010 / Dust Shield

SIENNA; LEFT

$33.27 $24.95
6 43502-08030 43502-08030 / Front Hub

Hub, LEFT

4WD

$154.69 $116.02
6 43502-08030 43502-08030 / Front Hub

Hub, RIGHT

4WD

$154.69 $116.02
7 90942-02049 90942-02049 / Wheel Stud

Wheel Stud, RIGHT

4WD

$4.17 $3.13
7 90942-02049 90942-02049 / Wheel Stud

Wheel Stud, LEFT

4WD

$4.17 $3.13
8 90369-A0002 90369-A0002 / Bearing

Bearing, LEFT

4WD

$107.89 $80.92
8 90369-A0002 90369-A0002 / Bearing

Bearing, RIGHT

4WD

$107.89 $80.92
9 90520-79002 90520-79002 / Bearing Snap Ring

Bearing Snap Ring, LEFT

4WD

$6.75 $5.06
9 90520-79002 90520-79002 / Bearing Snap Ring

Bearing Snap Ring, RIGHT

4WD

$6.75 $5.06
10 43246-48011 43246-48011 / Dust Cover

Dust Cover, LEFT

4WD

$17.10 $12.83
10 43246-48011 43246-48011 / Dust Cover

Dust Cover, RIGHT

4WD

$17.10 $12.83
11 04465-0E010 04465-0E010 / Brake Pads

4WD

$62.99 $47.24
12 90947-A2057 90947-A2057 / Flex Hose

Brake Hose, LEFT

4WD

$70.37 $52.78
12 90947-A2056 90947-A2056 / Flex Hose

Brake Hose, RIGHT

4WD

$70.37 $52.78
12 90947-A2057 90947-A2057 / Flex Hose

SIENNA; LEFT

$70.37 $52.78
13 89543-08040 89543-08040 / ABS Sensor Wire

ABS Sensor Wire, LEFT

4WD

$242.99 $182.24
13 89542-08040 89542-08040 / ABS Sensor Wire

ABS Sensor Wire, RIGHT

4WD

$242.99 $182.24
13 89543-08040 89543-08040 / ABS Sensor Wire

Front Speed Sensor

SIENNA; LEFT

$242.99 $182.24
No. Part # Part # / Description List Price Price
3 47750-0E031 47750-0E031 / Caliper Assembly

Caliper

SIENNA; LEFT

$420.90 $315.68
5 47703-0T010 47703-0T010 / Dust Shield

SIENNA; RIGHT

$33.27 $24.95
10 43246-48011 43246-48011 / Dust Cover

Bearing Dust Shield, RIGHT

2WD

$17.10 $12.83
10 43246-48011 43246-48011 / Dust Cover

Bearing Dust Shield, LEFT

2WD

$17.10 $12.83
11 04465-0E010 04465-0E010 / Brake Pads

Front Pads

SIENNA

$62.99 $47.24
12 90947-A2056 90947-A2056 / Flex Hose

SIENNA; RIGHT

$70.37 $52.78
13 89542-08040 89542-08040 / ABS Sensor Wire

Front Speed Sensor

SIENNA; RIGHT

$242.99 $182.24
No. Part # Part # / Description List Price Price
N/A 04478-0E030 04478-0E030 / Caliper Seal Kit

SIENNA

$60.95 $45.71
No. Part # Part # / Description List Price Price
N/A 47731-0E030 47731-0E030 / Caliper Piston

SIENNA

$35.37 $26.53
