FRONT SUSPENSION/STRUTS & COMPONENTS for 2013 Toyota RAV4

Select STRUTS & COMPONENTS Part

2013 Toyota RAV4

Change vehicle

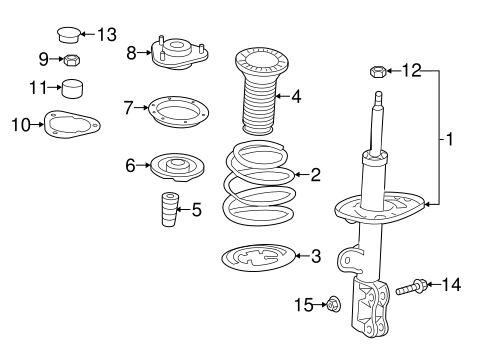

FRONT SUSPENSION/STRUTS & COMPONENTS for 2013 Toyota RAV4 #1
No. Part # Part # / Description List Price Price
1 48520-09889 48520-09889 / Strut

Strut, LEFT

CANADA BUILT

$144.18 $105.75
1 48510-09888 48510-09888 / Strut

Strut, RIGHT

CANADA BUILT

$144.18 $105.75
1 48510-80598 48510-80598 / Strut

Strut, RIGHT

JAPAN BUILT

$140.24 $102.86
1 48520-80312 48520-80312 / Strut

Strut, LEFT

JAPAN BUILT

$144.41 $105.92
2 48131-0R110 48131-0R110 / Coil Spring

Spring, RIGHT

CANADA BUILT

$87.44 $64.14
2 48131-0R110 48131-0R110 / Coil Spring

Spring, LEFT

CANADA BUILT

$87.44 $64.14
2 48131-42730 48131-42730 / Coil Spring

Spring, LEFT

JAPAN BUILT

$87.44 $64.14
2 48131-42730 48131-42730 / Coil Spring

Spring, RIGHT

JAPAN BUILT

$87.44 $64.14
3 48158-21010 48158-21010 / Lower Seat

Lower Seat, LEFT

JAPAN BUILT

$26.66 $19.56
3 48158-42010 48158-42010 / Lower Seat

Lower Seat, LEFT

CANADA BUILT

$18.16 $13.32
3 48158-42010 48158-42010 / Lower Seat

Lower Seat, RIGHT

CANADA BUILT

$18.16 $13.32
3 48158-21010 48158-21010 / Lower Seat

Lower Seat, RIGHT

JAPAN BUILT

$26.66 $19.56
4 48157-0R010 48157-0R010 / Dust Cover

Dust Cover, LEFT

CANADA BUILT

$29.45 $21.61
4 48157-0R010 48157-0R010 / Dust Cover

Dust Cover, RIGHT

CANADA BUILT

$29.45 $21.61
4 48157-58010 48157-58010 / Dust Shield

Dust Cover, RIGHT

JAPAN BUILT

$35.37 $25.94
4 48157-58010 48157-58010 / Dust Shield

Dust Cover, LEFT

JAPAN BUILT

$35.37 $25.94
5 48331-0R030 48331-0R030 / Strut Bumper

Bumper, LEFT

CANADA BUILT

$18.04 $13.24
5 48331-42120 48331-42120 / Bumper

Bumper, LEFT

JAPAN BUILT

$18.04 $13.24
5 48331-42120 48331-42120 / Bumper

Bumper, RIGHT

JAPAN BUILT

$18.04 $13.24
5 48331-0R030 48331-0R030 / Strut Bumper

Bumper, RIGHT

CANADA BUILT

$18.04 $13.24
6 48471-0R010 48471-0R010 / Spring Seat

Upper Seat, LEFT

$21.38 $15.68
6 48471-0R010 48471-0R010 / Spring Seat

Upper Seat, RIGHT

$21.38 $15.68
7 48619-28010 48619-28010 / Strut Bearing

Bearing, LEFT

$20.77 $15.24
7 48619-28010 48619-28010 / Strut Bearing

Bearing, RIGHT

$20.77 $15.24
8 48609-0R030 48609-0R030 / Strut Mount

Strut Mount, LEFT

$117.17 $85.94
8 48609-0R030 48609-0R030 / Strut Mount

Strut Mount, RIGHT

$117.17 $85.94
9 90178-10030 90178-10030 / Strut Mount Nut

Strut Mount Nut, LEFT

JAPAN BUILT

$1.32 $0.96
9 90178-A0090 90178-A0090 / Mount Nut

Strut Mount Nut, LEFT

CANADA BUILT

$1.32 $0.96
9 90178-A0090 90178-A0090 / Mount Nut

Strut Mount Nut, RIGHT

CANADA BUILT

$1.32 $0.96
9 90178-10030 90178-10030 / Strut Mount Nut

Strut Mount Nut, RIGHT

JAPAN BUILT

$1.32 $0.96
10 48687-0R010 48687-0R010 / Upper Plate

Upper Plate, LEFT

$6.09 $4.47
10 48687-0R010 48687-0R010 / Upper Plate

Upper Plate, RIGHT

$6.09 $4.47
11 90387-15033 90387-15033 / Collar

Collar, RIGHT

$5.09 $3.73
11 90387-15033 90387-15033 / Collar

Collar, LEFT

$5.09 $3.73
12 90177-14005 90177-14005 / Top Nut

Top Nut, RIGHT

$1.64 $1.20
12 90177-14005 90177-14005 / Top Nut

Top Nut, LEFT

$1.64 $1.20
13 48684-0R010 48684-0R010 / Cover

Cover, RIGHT

$22.07 $16.19
13 48684-0R010 48684-0R010 / Cover

Cover, LEFT

$22.07 $16.19
14 90080-10335 90080-10335 / Strut Mount Bolt

Mount Bolt, RIGHT

OD=17MM

$12.38 $9.09
14 90105-17009 90105-17009 / Knuckle Bolt

Mount Bolt, RIGHT

OD=15.9MM

$5.98 $4.38
14 90105-17011 90105-17011 / Knuckle Bolt

Mount Bolt, LEFT

OD=14MM

$5.06 $3.71
14 90105-17010 90105-17010 / Knuckle Bolt

Mount Bolt, LEFT

OD=15MM

$5.98 $4.38
14 90080-10335 90080-10335 / Strut Mount Bolt

Mount Bolt, LEFT

OD=17MM

$12.38 $9.09
14 90105-17009 90105-17009 / Knuckle Bolt

Mount Bolt, LEFT

OD=15.9MM

$5.98 $4.38
14 90105-17011 90105-17011 / Knuckle Bolt

Mount Bolt, RIGHT

OD=14MM

$5.06 $3.71
14 90105-17010 90105-17010 / Knuckle Bolt

Mount Bolt, RIGHT

OD=15MM

$5.98 $4.38
15 90178-17002 90178-17002 / Strut Nut

Mount Bolt Nut, LEFT

$2.27 $1.66
15 90178-17002 90178-17002 / Strut Nut

Mount Bolt Nut, RIGHT

$2.27 $1.66
