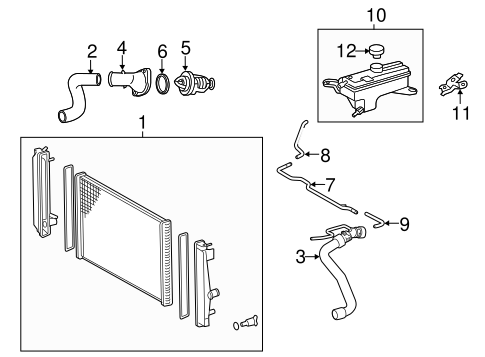

COOLING SYSTEM/RADIATOR & COMPONENTS for 2013 Toyota RAV4

Select RADIATOR & COMPONENTS Part

2013 Toyota RAV4

Change vehicle

No. Part # Part # / Description List Price Price
1 16400-0V030 16400-0V030 / Radiator Assembly

W/O HYBRID, CANADA BUILT

$349.71 $256.51
1 16400-28570 16400-28570 / Radiator Assembly

W/O HYBRID, JAPAN BUILT

$347.68 $255.00
2 16572-0V180 16572-0V180 / Lower Hose

W/O HYBRID, JAPAN BUILT

$19.48 $14.29
3 16057-0V011 16057-0V011 / Upper Hose

W/O HYBRID, CANADA BUILT

$59.07 $43.32
4 16321-0V010 16321-0V010 / Water Inlet

Thermostat Hsng

W/O HYBRID, CANADA BUILT

$26.43 $19.39
5 90916-A3003 90916-A3003 / Thermostat

W/O HYBRID, CANADA BUILT

$24.02 $17.62
6 16325-0T030 16325-0T030 / Thermostat Gasket

W/O HYBRID, JAPAN BUILT

$6.09 $4.47
7 16268-0V100 16268-0V100 / By-Pass Pipe

W/O HYBRID, JAPAN BUILT

$34.88 $25.58
8 16261-36050 16261-36050 / By-Pass Hose

W/O HYBRID, TO RESERVOIR

$6.82 $5.00
9 16282-36030 16282-36030 / By-Pass Hose

W/O HYBRID, TO RADIATOR

$6.82 $5.00
10 16470-0V010 16470-0V010 / Expansion Tank

Reservoir

W/O HYBRID, CANADA BUILT

$212.03 $155.51
10 16470-0V010 16470-0V010 / Expansion Tank

Reservoir

W/O HYBRID, JAPAN BUILT

$212.03 $155.51
11 16611-0V010 16611-0V010 / Reservoir Mount Bracket

W/O HYBRID, JAPAN BUILT

$17.56 $12.87
12 16475-51010 16475-51010 / Cap

Reservoir Cap

W/O HYBRID, CANADA BUILT

$10.32 $7.56
12 16475-28140 16475-28140 / Reservoir Cap

W/O HYBRID, JAPAN BUILT

$23.47 $17.21
COOLING SYSTEM/RADIATOR & COMPONENTS for 2013 Toyota RAV4 #2
No. Part # Part # / Description List Price Price
1 16400-0V030 16400-0V030 / Radiator Assembly

Radiator

RAV4; CANADA BUILT

$349.71 $256.51
1 16400-28570 16400-28570 / Radiator Assembly

Radiator

RAV4; JAPAN BUILT

$347.68 $255.00
4 16321-0V010 16321-0V010 / Water Inlet

RAV4

$26.43 $19.39
5 16325-0T030 16325-0T030 / Thermostat Gasket

RAV4

$6.09 $4.47
6 90916-A3003 90916-A3003 / Thermostat

RAV4

$24.02 $17.62
7 16470-0V010 16470-0V010 / Expansion Tank

RAV4; JAPAN BUILT

$212.03 $155.51
7 16470-0V010 16470-0V010 / Expansion Tank

RAV4; CANADA BUILT

$212.03 $155.51
8 16475-28140 16475-28140 / Reservoir Cap

Cap

EXPANSION TANK CAP; RAV4

$23.47 $17.21
10 16271-36010 16271-36010 / Gasket

RAV4

$5.77 $4.23
11 16361-0V330 16361-0V330 / Fan Blade

RAV4; LEFT

$104.59 $76.71
11 16361-0V340 16361-0V340 / Fan Blade

RAV4; RIGHT

$81.52 $59.79
12 16711-0V210 16711-0V210 / Fan Shroud

RAV4; CANADA BUILT

$121.83 $89.35
12 16711-36150 16711-36150 / Cooling Shroud

Fan Shroud

RAV4; JAPAN BUILT

$121.83 $89.35
13 16363-36100 16363-36100 / Fan Motor

RAV4; LEFT

$187.54 $137.56
13 16363-36110 16363-36110 / Fan Motor

RAV4; RIGHT

$178.37 $130.82
