ELECTRICAL/SENDERS for 2013 Toyota Avalon

Select SENDERS Part

2013 Toyota Avalon

Change vehicle

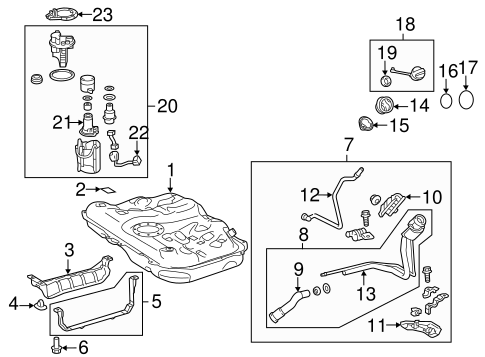

No. Part # Part # / Description List Price Price
1 77001-06190 77001-06190 / Fuel Tank

- -
2 77651-20090 77651-20090 / Fuel Tank Cushion

$5.11 $3.83
3 77641-06010 77641-06010 / Tank Shield

$74.99 $56.24
4 77299-06070 77299-06070 / Protector Clamp

Tank Shield Clip

$1.93 $1.45
5 77602-06080 77602-06080 / Mount Strap

Tank Strap, LEFT

$83.93 $62.95
5 77601-06080 77601-06080 / Mount Strap

Tank Strap, RIGHT

$75.71 $56.78
6 90119-A0267 90119-A0267 / Mount Strap Bolt

Tank Strap Bolt, LEFT

$1.49 $1.12
6 90119-A0267 90119-A0267 / Mount Strap Bolt

Tank Strap Bolt, RIGHT

$1.49 $1.12
7 77210-07090 77210-07090 / Filler Assembly

W/HYBRID

$277.50 $208.13
8 77201-07090 77201-07090 / Filler Pipe

W/HYBRID

$231.78 $173.84
9 77213-06060 77213-06060 / Filler Hose

$30.54 $22.91
10 77277-06050 77277-06050 / Pipe Shield

UPPER

$35.43 $26.57
11 77278-06050 77278-06050 / Filler Neck Protector

Pipe Shield

LOWER

$30.14 $22.61
12 77226-06130 77226-06130 / Breather Tube

W/HYBRID

$52.49 $39.37
13 77225-07030 77225-07030 / Vent Tube

$36.06 $27.05
14 77291-07020 77291-07020 / Filler Pocket

$20.46 $15.35
15 77277-33100 77277-33100 / Filler Pocket Grommet

$28.24 $21.18
16 77391-02040 77391-02040 / Pocket O-Ring

Filler Pocket Ring

INNER

$2.90 $2.18
17 77391-07010 77391-07010 / Filler Pocket Ring

OUTER

$3.36 $2.52
18 77300-07020 77300-07020 / Fuel Cap

W/HYBRID

$22.24 $16.68
19 77316-06090 77316-06090 / Fuel Cap Gasket

W/HYBRID

$14.74 $11.06
20 77020-06306 77020-06306 / Fuel Pump Assembly

W/HYBRID

$484.57 $363.43
21 23220-0V150 23220-0V150 / Fuel Pump

W/HYBRID

$347.43 $260.57
22 83320-06121 83320-06121 / Fuel Gauge Sending Unit

Level Sensor

$76.43 $57.32
22 83320-06121 83320-06121 / Fuel Gauge Sending Unit

AVALON, AVALON HYBRID

$76.43 $57.32
23 77168-33070 77168-33070 / Lock Plate

$25.69 $19.27
No. Part # Part # / Description List Price Price
N/A 83530-0E010 83530-0E010 / Oil Pressure Sending Unit

AVALON, AVALON HYBRID

$47.78 $35.84
