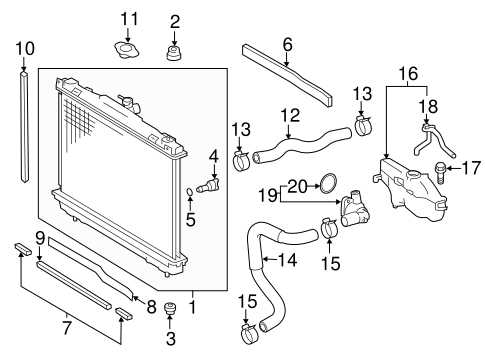

COOLING SYSTEM/RADIATOR & COMPONENTS for 2013 Toyota Avalon

Select RADIATOR & COMPONENTS Part

2013 Toyota Avalon

Change vehicle

No. Part # Part # / Description List Price Price
1 16400-0V120 16400-0V120 / Radiator Assembly

2.5 LITER

$329.00 $246.75
2 16523-AD010 16523-AD010 / Radiator Assembly Upper Insulator

2.5 LITER

$5.49 $4.12
3 16535-0V010 16535-0V010 / Lower Support

Radiator Assembly Lower Insulator

2.5 LITER

$19.85 $14.89
4 16417-21280 16417-21280 / Drain Plug

2.5 LITER

$5.29 $3.97
5 16492-21050 16492-21050 / Drain Plug O-Ring

Drain Plug Seal

2.5 LITER

$3.00 $2.25
6 16561-0V080 16561-0V080 / Seal

Upper Seal

2.5 LITER

$11.61 $8.71
7 16562-0P040 16562-0P040 / Lower Seal

2.5 LITER, #1

$19.42 $14.57
8 16562-0P060 16562-0P060 / Lower Seal

2.5 LITER, #2

$19.45 $14.59
9 16562-0V070 16562-0V070 / Lower Seal

2.5 LITER, #3

$4.74 $3.56
10 16563-0V070 16563-0V070 / Seal

Side Seal, LEFT

2.5 LITER

$4.74 $3.56
10 16563-0V070 16563-0V070 / Seal

Side Seal, RIGHT

2.5 LITER

$4.74 $3.56
11 16401-31520 16401-31520 / Radiator Cap

2.5 LITER

$17.27 $12.95
12 16571-0V080 16571-0V080 / Upper Hose

2.5 LITER

$19.51 $14.63
13 96136-44301 96136-44301 / Hose Clamp

Upper Hose Clamp

2.5 LITER

$10.34 $7.76
14 16572-0V070 16572-0V070 / Lower Hose

2.5 LITER

$29.99 $22.49
15 96136-44301 96136-44301 / Hose Clamp

Lower Hose Clamp

2.5 LITER

$10.34 $7.76
16 16470-0V020 16470-0V020 / Expansion Tank

Reservoir

2.5 LITER

$80.64 $60.48
17 90080-11699 90080-11699 / Center Belt Assembly Upper Bolt

Reservoir Bolt

2.5 LITER

$1.35 $1.01
18 16405-0V060 16405-0V060 / Reservoir Cap

2.5 LITER

$11.65 $8.74
19 16031-36010 16031-36010 / Water Inlet

Thermostat Unit

2.5 LITER

$42.78 $32.09
20 16325-36010 16325-36010 / Thermostat Gasket

Thermostat Unit Seal

2.5 LITER

$4.80 $3.60
COOLING SYSTEM/RADIATOR & COMPONENTS for 2013 Toyota Avalon #2
No. Part # Part # / Description List Price Price
1 16400-0V120 16400-0V120 / Radiator Assembly

Radiator

AVALON HYBRID

$329.00 $246.75
4 16470-0V020 16470-0V020 / Expansion Tank

AVALON HYBRID

$80.64 $60.48
5 16405-0V060 16405-0V060 / Reservoir Cap

Cap

EXPANSION TANK CAP; AVALON HYBRID

$11.65 $8.74
6 16031-36010 16031-36010 / Water Inlet

AVALON HYBRID

$42.78 $32.09
7 16325-36010 16325-36010 / Thermostat Gasket

AVALON HYBRID

$4.80 $3.60
9 16271-36020 16271-36020 / Gasket

AVALON HYBRID

$5.72 $4.29
10 16361-0V310 16361-0V310 / Fan Blade

AVALON HYBRID; LEFT

$106.68 $80.01
10 16361-0V320 16361-0V320 / Fan Blade

AVALON HYBRID; RIGHT

$134.21 $100.66
11 16711-0V110 16711-0V110 / Cooling Shroud

Fan Shroud

AVALON HYBRID

$105.88 $79.41
12 16363-0V370 16363-0V370 / Fan Motor

AVALON HYBRID; RIGHT

$178.43 $133.82
12 16363-0A150 16363-0A150 / Fan Motor

AVALON HYBRID; LEFT

$207.50 $155.63
