BODY/STRUCTURAL COMPONENTS & RAILS for 2013 Scion xB

Select STRUCTURAL COMPONENTS & RAILS Part

2013 Scion xB

Change vehicle

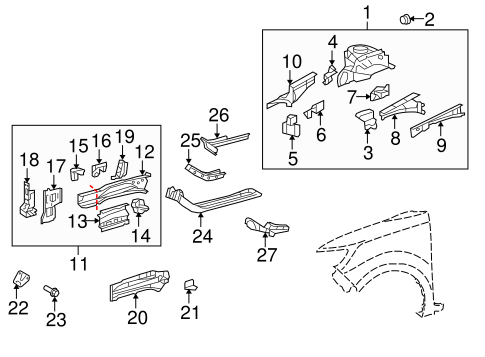

BODY/STRUCTURAL COMPONENTS & RAILS for 2013 Scion xB #1
No. Part # Part # / Description List Price Price
1 53701-12A30 53701-12A30 / Apron Assembly

Apron Assembly, RIGHT

- -
1 53702-12A40 53702-12A40 / Apron Assembly

Apron Assembly, LEFT

- -
2 82817-1A810 82817-1A810 / Release Cable Grommet

Apron Assembly Protector, RIGHT

$3.85 $2.82
2 82817-1A810 82817-1A810 / Release Cable Grommet

Apron Assembly Protector, LEFT

$3.85 $2.82
3 53706-12050 53706-12050 / Mount Brace

Mount Brace, LEFT

$35.34 $25.93
3 53705-12030 53705-12030 / Mount Brace

Mount Brace, RIGHT

$36.09 $26.47
4 53725-12040 53725-12040 / Upper Extension

Mount Brace Reinforcement, RIGHT

$31.17 $22.86
4 53726-12040 53726-12040 / Upper Extension

Mount Brace Reinforcement, LEFT

$31.17 $22.86
5 53814-12100 53814-12100 / Front Brace

Front Brace, LEFT

$33.59 $24.63
5 53813-12150 53813-12150 / Front Brace

Front Brace, RIGHT

$32.41 $23.77
6 53736-12070 53736-12070 / Front Brace Plate

Front Brace Plate, LEFT

FRONT

$12.90 $9.47
6 53718-12060 53718-12060 / Front Brace Plate

Front Brace Plate, RIGHT

FRONT

$8.27 $6.06
7 53735-12070 53735-12070 / Front Brace Plate

Front Brace Plate, LEFT

REAR

$15.43 $11.32
7 53717-12070 53717-12070 / Front Brace Plate

Front Brace Plate, RIGHT

REAR

$31.17 $22.86
8 53731-12170 53731-12170 / Upper Rail

Upper Rail, RIGHT

$84.53 $62.00
8 53732-12150 53732-12150 / Upper Rail

Upper Rail, LEFT

$84.53 $62.00
9 53733-12070 53733-12070 / Upper Reinforced

Apron Reinforced, RIGHT

$50.22 $36.83
9 53734-12070 53734-12070 / Upper Reinforced

Apron Reinforced, LEFT

$50.22 $36.83
10 53711-12270 53711-12270 / Front Panel

Front Panel, RIGHT

$83.52 $61.26
10 53712-12221 53712-12221 / Front Panel

Front Panel, LEFT

$83.96 $61.57
11 57027-12010 57027-12010 / Inner Rail

Rail Assembly, RIGHT

$570.94 $418.77
11 57028-12020 57028-12020 / Inner Rail

Rail Assembly, LEFT

$570.94 $418.77
12 57112-12190 57112-12190 / Side Member Rail

Inner Rail, LEFT

$226.32 $165.99
12 57111-12230 57111-12230 / Side Member Rail

Inner Rail, RIGHT

$226.32 $165.99
13 57017-0R010 57017-0R010 / Reinforcement

Inner Rail Reinforced Plate, LEFT

$63.67 $46.70
13 57016-0R010 57016-0R010 / Inner Rail Reinforcement

Inner Rail Reinforced Plate, RIGHT

$68.27 $50.07
14 57105-12160 57105-12160 / Bracket

Inner Rail Bracket, RIGHT

SUSPENSION MOUNT

$63.67 $46.70
14 57106-12150 57106-12150 / Inner Rail Bracket

Inner Rail Bracket, LEFT

SUSPENSION MOUNT

$63.67 $46.70
15 51401-12020 51401-12020 / Inner Rail Bracket

Inner Rail Bracket, LEFT

ENGINE MOUNTING, #1

$42.09 $30.88
16 51402-12020 51402-12020 / Inner Rail Bracket

Inner Rail Bracket, LEFT

ENGINE MOUNTING, #2

$43.85 $32.16
17 57113-12220 57113-12220 / Front Extension

Front Extension, RIGHT

$78.18 $57.34
17 57114-12191 57114-12191 / Front Extension

Front Extension, LEFT

$77.12 $56.56
18 57031-12010 57031-12010 / Front Plate

Front Extension Reinforcement, RIGHT

$148.92 $109.23
18 57032-12010 57032-12010 / Front Plate

Front Extension Reinforcement, LEFT

$155.61 $114.13
19 57188-12030 57188-12030 / Gusset

Gusset, RIGHT

$37.15 $27.24
19 57189-12010 57189-12010 / Gusset

Gusset, LEFT

$41.37 $30.34
20 57026-12020 57026-12020 / Outer Rail

Outer Rail, LEFT

$163.95 $120.24
20 57025-0R010 57025-0R010 / Outer Rail

Outer Rail, RIGHT

$148.86 $109.19
21 51682-12080 51682-12080 / Outer Rail Support Plate

Outer Rail Support Plate, LEFT

BRAKE HOSE

$15.43 $11.32
21 51681-12080 51681-12080 / Outer Rail Support Plate

Outer Rail Support Plate, RIGHT

BRAKE HOSE

$15.43 $11.32
22 51963-12250 51963-12250 / Tow Hook Bracket

Hook, RIGHT

$18.85 $13.82
22 51964-12040 51964-12040 / Tow Hook Bracket

Hook, LEFT

$18.85 $13.82
23 91553-L1025 91553-L1025 / Tow Hook Bracket Bolt

Hook Bolt, RIGHT

$1.32 $0.96
23 91553-L1025 91553-L1025 / Tow Hook Bracket Bolt

Hook Bolt, LEFT

$1.32 $0.96
24 57191-12070 57191-12070 / Center Rail

Rail Extension, RIGHT

$249.71 $183.16
24 57192-12060 57192-12060 / Center Rail

Rail Extension, LEFT

$251.84 $184.71
25 57034-12010 57034-12010 / Center Reinforced

Rail Extension Reinforced Plate, LEFT

$106.11 $77.82
25 57033-12010 57033-12010 / Center Reinforced

Rail Extension Reinforced Plate, RIGHT

$106.11 $77.82
26 57107-12120 57107-12120 / Front Reinforced

Rail Extension Plate, RIGHT

$112.83 $82.75
26 57108-12140 57108-12140 / Front Reinforced

Rail Extension Plate, LEFT

$113.18 $83.01
27 57198-12040 57198-12040 / Torque Box

Torque Box, LEFT

$96.57 $70.83
27 57197-12040 57197-12040 / Torque Box

Torque Box, RIGHT

$96.57 $70.83
