BODY/FRONT SEAT COMPONENTS for 2013 Scion xB

Select FRONT SEAT COMPONENTS Part

2013 Scion xB

Change vehicle

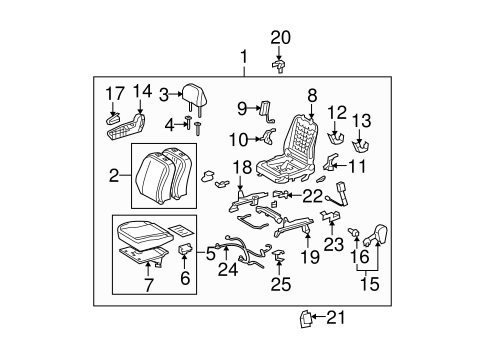

No. Part # Part # / Description List Price Price
1 71200-1AD60-B0 71200-1AD60-B0 / Seat Assembly

DRIVER SEAT

$2,421.02 $1,815.77
2 71552-12720 71552-12720 / Seat Back Pad

DRIVER SEAT

$152.14 $114.11
3 71910-12E90-B3 71910-12E90-B3 / Headrest

DRIVER SEAT

$432.13 $324.10
4 71931-47010-B2 71931-47010-B2 / Headrest Guide

DRIVER SEAT, NON LOCKING

$9.22 $6.92
5 71512-12520 71512-12520 / Seat Cushion

DRIVER SEAT

$195.35 $146.51
6 71120-12370 71120-12370 / Frame Assembly

DRIVER SEAT

- -
11 71875-42050-B0 71875-42050-B0 / Adjust Cover

Recline Cover, RIGHT

DRIVER SEAT, OUTER

$5.83 $4.37
12 71876-42050-B0 71876-42050-B0 / Adjust Cover

Recline Cover, LEFT

DRIVER SEAT, OUTER

$5.83 $4.37
14 71876-AA060 71876-AA060 / Recline Cover

Recline Cover, LEFT

DRIVER SEAT, INNER

$12.93 $9.70
15 71862-12330-B0 71862-12330-B0 / Cushion Shield

Cushion Shield, RIGHT

DRIVER SEAT

$48.93 $36.70
16 71812-12430-B0 71812-12430-B0 / Cushion Shield

Cushion Shield, LEFT

DRIVER SEAT

$92.49 $69.37
17 71769-33020 71769-33020 / Seat Back Panel Retainer Clip

Cushion Shield Clip, RIGHT

DRIVER SEAT

$1.12 $0.84
18 72526-42020-B0 72526-42020-B0 / Recline Handle

DRIVER SEAT

$15.86 $11.90
19 72495-0R010-B0 72495-0R010-B0 / Adjust Handle

DRIVER SEAT

$32.35 $24.26
20 72462-42010-B0 72462-42010-B0 / Adjust Handle Cover

DRIVER SEAT

$7.50 $5.63
21 72140-12730 72140-12730 / Seat Track

Seat Track, RIGHT

DRIVER SEAT

$202.88 $152.16
22 72120-12230 72120-12230 / Seat Track

Seat Track, LEFT

DRIVER SEAT

$202.88 $152.16
23 72158-12160-B0 72158-12160-B0 / Track End Cover

Track End Cover, RIGHT

DRIVER SEAT, FRONT

$25.23 $18.92
24 72138-12170-B0 72138-12170-B0 / Track End Cover

Track End Cover, LEFT

DRIVER SEAT, FRONT

$27.73 $20.80
25 71873-0R010 71873-0R010 / Track End Cover

Track End Cover, RIGHT

DRIVER SEAT, REAR

$13.91 $10.43
26 71874-0R010 71874-0R010 / Track End Cover

Track End Cover, LEFT

DRIVER SEAT, REAR

$13.91 $10.43

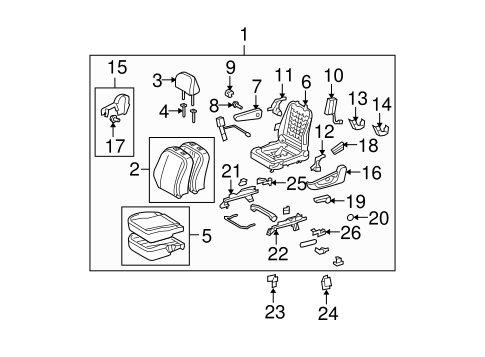

No. Part # Part # / Description List Price Price
1 71100-1AP00-B0 71100-1AP00-B0 / Seat Assembly

PASSENGER SEAT

$2,498.48 $1,873.86
2 71551-12E00 71551-12E00 / Seat Back Pad

PASSENGER SEAT

$152.14 $114.11
4 71930-44020-B0 71930-44020-B0 / Headrest Guide

PASSENGER SEAT, LOCKING

$15.08 $11.31
5 71001-1EV20-B1 71001-1EV20-B1 / Seat Cushion

PASSENGER SEAT

$699.86 $524.90
8 71110-12430 71110-12430 / Frame Assembly

PASSENGER SEAT

$610.71 $458.03
12 71875-58060 71875-58060 / Adjust Cover

Recline Cover, RIGHT

PASSENGER SEAT, INNER

$9.52 $7.14
14 71811-12490-B0 71811-12490-B0 / Cushion Shield

Cushion Shield, RIGHT

PASSENGER SEAT

$101.43 $76.07
15 71861-12360-B0 71861-12360-B0 / Cushion Shield

Cushion Shield, LEFT

PASSENGER SEAT

$48.93 $36.70
16 71769-33020 71769-33020 / Seat Back Panel Retainer Clip

Cushion Shield Clip, LEFT

PASSENGER SEAT

$1.12 $0.84
17 72525-42010-B0 72525-42010-B0 / Recline Handle

PASSENGER SEAT

$16.95 $12.71
18 72110-12260 72110-12260 / Seat Track

Seat Track, RIGHT

PASSENGER SEAT

$202.88 $152.16
19 72130-12860 72130-12860 / Seat Track

Seat Track, LEFT

PASSENGER SEAT

$202.88 $152.16
20 72137-12200-B0 72137-12200-B0 / Track End Cover

Track End Cover, RIGHT

PASSENGER SEAT, FRONT

$28.47 $21.35
21 72157-12180-B0 72157-12180-B0 / Track End Cover

Track End Cover, LEFT

PASSENGER SEAT, FRONT

$25.23 $18.92
24 82191-12070 82191-12070 / Wire Harness

PASSENGER SEAT, OCCUPANT SENSOR

$65.54 $49.16
25 82666-33400 82666-33400 / Wire Harness Holder

PASSENGER SEAT

$49.42 $37.07
No. Part # Part # / Description List Price Price
N/A 71072-12S70-B3 71072-12S70-B3 / Seat Cover

DRIVER SEAT

$245.43 $184.07
N/A 71074-12S70-B0 71074-12S70-B0 / Seat Back Cover

DRIVER SEAT

$354.84 $266.13
No. Part # Part # / Description List Price Price
N/A 71073-12W00-B0 71073-12W00-B0 / Seat Back Cover

PASSENGER SEAT

$354.84 $266.13
