ELECTRICAL/POWERTRAIN CONTROL for 2013 Scion FR-S

Select POWERTRAIN CONTROL Part

2013 Scion FR-S

Change vehicle

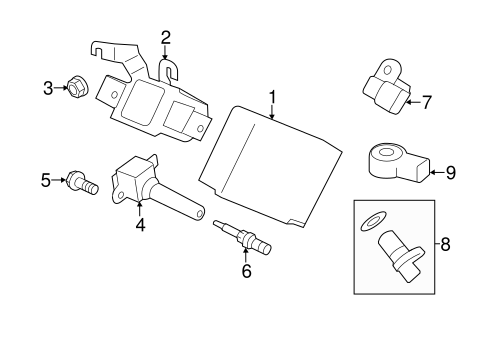

No. Part # Part # / Description List Price Price
1 SU003-04673 SU003-04673 / ECM

AUTO TRANS, FROM 1/13

$675.14 $506.36
1 SU003-04674 SU003-04674 / ECM

MANUAL TRANS, FROM 1/13

$675.14 $506.36
1 SU003-04567 SU003-04567 / ECM

FR-S; AUTO TRANS; LS

$675.14 $506.36
1 SU003-04568 SU003-04568 / ECM

FR-S; MANUAL TRANS; LS

$675.14 $506.36
2 SU003-00423 SU003-00423 / Bracket

$28.65 $21.49
3 SU003-02879 SU003-02879 / Bracket Nut

$1.67 $1.25
4 SU003-04713 SU003-04713 / Ignition Coil

$121.05 $90.79
5 SU003-02140 SU003-02140 / Ignition Coil Bolt

$0.92 $0.69
6 SU003-04931 SU003-04931 / Spark Plug

$18.99 $14.24
7 SU003-00412 SU003-00412 / Crankshaft Position Sensor

Crankshaft Sensor

$125.75 $94.31
7 SU003-00412 SU003-00412 / Crankshaft Position Sensor

FR-S

$125.75 $94.31
8 SU003-00413 SU003-00413 / Camshaft Position Sensor

Camshaft Sensor

TYPE 2

$125.75 $94.31
8 SU003-00414 SU003-00414 / Camshaft Position Sensor

Camshaft Sensor

TYPE 1

$125.75 $94.31
8 SU003-00414 SU003-00414 / Camshaft Position Sensor

FR-S; FRONT; LEFT

$125.75 $94.31
8 SU003-00413 SU003-00413 / Camshaft Position Sensor

FR-S; FRONT; RIGHT

$125.75 $94.31
9 SU003-00415 SU003-00415 / Knock Sensor

FR-S

$80.47 $60.35

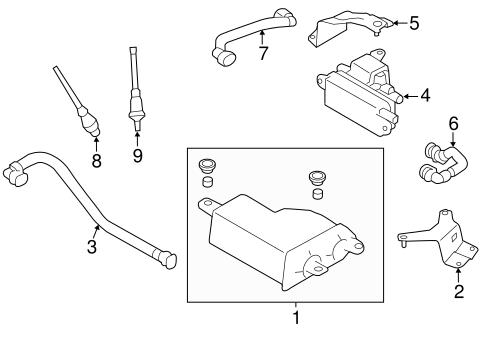

No. Part # Part # / Description List Price Price
1 SU003-04502 SU003-04502 / Vapor Canister

FROM 07/12

$272.73 $204.55
1 SU003-01027 SU003-01027 / Vapor Canister

TO 07/12

$226.25 $169.69
2 SU003-04503 SU003-04503 / Vapor Canister Bracket

FROM 07/12

$17.07 $12.80
2 SU003-01064 SU003-01064 / Vapor Canister Bracket

TO 07/12

$17.07 $12.80
3 SU003-01086 SU003-01086 / Canister Hose

$52.66 $39.50
4 SU003-01108 SU003-01108 / Check Valve

$173.45 $130.09
4 SU003-01108 SU003-01108 / Check Valve

Vacuum Switch

FR-S

$173.45 $130.09
5 SU003-01069 SU003-01069 / Check Valve Bracket

UPPER

$17.07 $12.80
5 SU003-01056 SU003-01056 / Check Valve Bracket

LOWER

$17.07 $12.80
6 SU003-01087 SU003-01087 / Tube

$37.17 $27.88
7 SU003-01083 SU003-01083 / Drain Tube

$39.20 $29.40
8 SU003-00425 SU003-00425 / Oxygen Sensor

Ft Oxygen Sensor

$196.46 $147.35
8 SU003-00425 SU003-00425 / Oxygen Sensor

FR-S; UPPER

$196.46 $147.35
9 SU003-00428 SU003-00428 / Oxygen Sensor

Rear Oxygen Sensor

$170.80 $128.10
9 SU003-00428 SU003-00428 / Oxygen Sensor

FR-S; LOWER

$170.80 $128.10

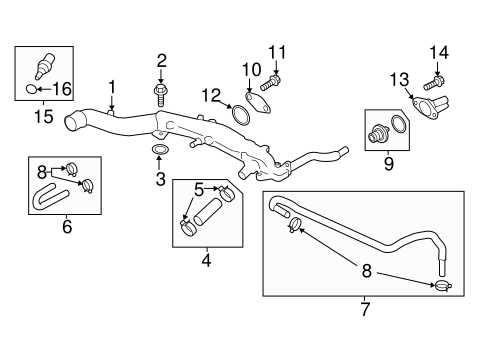

No. Part # Part # / Description List Price Price
1 SU003-00295 SU003-00295 / Water Pipe

AUTO TRANS

$159.28 $119.46
1 SU003-00296 SU003-00296 / Water Pipe

MANUAL TRANS

$159.28 $119.46
2 SU003-00023 SU003-00023 / Thermostat Hsng Bolt

Water Pipe Bolt

$0.92 $0.69
3 SU003-02189 SU003-02189 / Water Pipe O-Ring

$3.42 $2.57
4 SU003-00404 SU003-00404 / By-Pass Hose

Front Hose

$12.77 $9.58
5 SU003-02173 SU003-02173 / Front Hose Clamp

$3.42 $2.57
6 SU003-00405 SU003-00405 / Rear Hose

Rear Hose, RIGHT

$12.77 $9.58
7 SU003-00406 SU003-00406 / Rear Hose

Rear Hose, LEFT

$37.67 $28.25
8 SU003-00079 SU003-00079 / Rear Hose Clamp

Rear Hose Clamp, LEFT

$1.12 $0.84
8 SU003-00079 SU003-00079 / Rear Hose Clamp

Rear Hose Clamp, RIGHT

$1.12 $0.84
9 SU003-00408 SU003-00408 / Thermostat

UPPER, AUTO TRANS ONLY

$39.07 $29.30
10 SU003-04082 SU003-04082 / Thermostat Housing

Cover

MANUAL TRANS ONLY

$9.08 $6.81
11 SU003-03453 SU003-03453 / Cover Bolt

$0.46 $0.35
12 SU003-04125 SU003-04125 / Cover O-Ring

$2.30 $1.73
13 SU003-00114 SU003-00114 / Thermostat Hsng

UPPER, AUTO TRANS ONLY

$21.66 $16.25
14 SU003-00023 SU003-00023 / Thermostat Hsng Bolt

$0.92 $0.69
15 SU003-00420 SU003-00420 / Temp Sensor

$24.12 $18.09
15 SU003-00420 SU003-00420 / Temp Sensor

Coolant Temp Sensor

FR-S

$24.12 $18.09
16 SU003-02157 SU003-02157 / Temp Sensor O-Ring

$1.12 $0.84
No. Part # Part # / Description List Price Price
N/A SU003-00440 SU003-00440 / ECM

FR-S; AUTO TRANS; BASE

- -
No. Part # Part # / Description List Price Price
N/A SU003-00444 SU003-00444 / ECM

FR-S; MANUAL TRANS; BASE

- -
