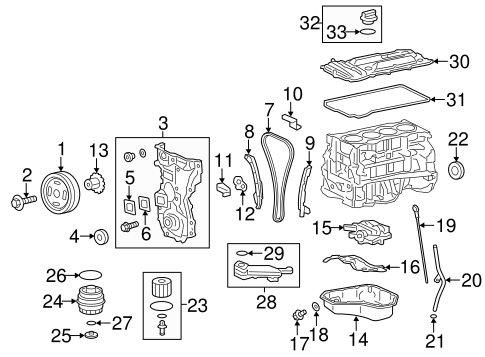

ENGINE/ENGINE PARTS for 2012 Toyota Sienna

Select ENGINE PARTS Part

2012 Toyota Sienna

Change vehicle

No. Part # Part # / Description List Price Price
1 13470-0V020 13470-0V020 / Crankshaft Pulley

2.7 LITER

$280.64 $205.84
2 90119-A0265 90119-A0265 / Crankshaft Pulley Bolt

2.7 LITER

$7.82 $5.73
3 11310-0V020 11310-0V020 / Timing Cover

2.7 LITER

$406.76 $298.34
4 90311-A0015 90311-A0015 / Front Cover Seal

Crankshaft Seal

2.7 LITER

$8.05 $5.90
5 11324-0V010 11324-0V010 / Cover Plate

2.7 LITER

$9.80 $7.19
6 11328-0V010 11328-0V010 / Cover Plate Gasket

2.7 LITER

$11.75 $8.61
7 13506-0V010 13506-0V010 / Timing Chain

2.7 LITER

$217.46 $159.50
8 13559-0V010 13559-0V010 / Chain Guide

Guide, RIGHT

2.7 LITER

$36.43 $26.72
9 13561-0V010 13561-0V010 / Chain Guide

Guide, LEFT

2.7 LITER

$75.02 $55.02
10 13566-0V011 13566-0V011 / Upper Guide

2.7 LITER

$7.07 $5.19
11 13540-0V030 13540-0V030 / Tensioner

2.7 LITER

$32.78 $24.05
12 13552-0V010 13552-0V010 / Tensioner Gasket

2.7 LITER

$3.99 $2.93
13 13521-0V010 13521-0V010 / Crankshaft Gear

Sprocket

2.7 LITER

$17.44 $12.80
14 12101-0V010 12101-0V010 / Oil Pan

2.7 LITER

$154.09 $113.02
15 13620-0V021 13620-0V021 / Balance Shaft Assembly

Balancer

2.7 LITER

$760.46 $557.76
16 12121-0V010 12121-0V010 / Oil Pan Baffle

Baffle Plate

2.7 LITER

$25.77 $18.90
17 90341-12012 90341-12012 / Drain Plug

Baffle Plate Drain Plug

2.7 LITER

$5.03 $3.68
18 90430-12031 90430-12031 / Drain Plug Gasket

Baffle Plate Gasket

2.7 LITER

$1.13 $0.83
19 15301-0V020 15301-0V020 / Dipstick

2.7 LITER

$16.03 $11.76
20 11452-0V010 11452-0V010 / Tube

2.7 LITER

$19.14 $14.03
21 96741-19010 96741-19010 / Oil Tube O-Ring

Tube Seal

2.7 LITER

$3.36 $2.46
22 90311-A0020 90311-A0020 / Rear Main Seal

Rear Seal

2.7 LITER

$28.90 $21.20
23 04152-YZZA1 04152-YZZA1 / Oil Filter

Filter Element

2.7 LITER

$5.41 $3.95
23 04152-YZZA1 04152-YZZA1 / Oil Filter

SIENNA

$5.41 $3.95
24 15620-36020 15620-36020 / Oil Filter Hsng

Filter Housing

2.7 LITER

$47.05 $34.50
25 15643-31050 15643-31050 / Drain Plug

Filter Housing Plug

2.7 LITER

$4.45 $3.27
26 90301-79006 90301-79006 / Oil Filter Hsng Gasket

Filter Housing Gasket

2.7 LITER

$5.00 $3.67
27 96723-35028 96723-35028 / Oil Filter Hsng O-Ring

Filter Housing O-Ring

2.7 LITER

$3.88 $2.84
28 15104-0V050 15104-0V050 / Oil Pick-Up

Strainer

2.7 LITER

$31.43 $23.06
29 15147-36010 15147-36010 / Strainer Gasket

2.7 LITER

$4.94 $3.62
30 11201-36010 11201-36010 / Valve Cover

2.7 LITER

$435.04 $319.08
31 11213-36020 11213-36020 / Valve Cover Gasket

2.7 LITER

$17.94 $13.15
32 12180-0P021 12180-0P021 / Filler Cap

2.7 LITER

$11.75 $8.61
33 90080-43025 90080-43025 / Filler Cap O-Ring

Filler Cap Gasket

2.7 LITER

$5.86 $4.29
