REAR SUSPENSION/REAR SUSPENSION for 2012 Toyota Matrix

Select REAR SUSPENSION Part

2012 Toyota Matrix

Change vehicle

REAR SUSPENSION/REAR SUSPENSION for 2012 Toyota Matrix #1
No. Part # Part # / Description List Price Price
layer_5 48812-02240 48812-02240 / Stabilizer Bar

MATRIX; W/O XRS

$95.65 $70.15
1 48530-02560 48530-02560 / Shock Absorber

MATRIX; W/O XRS

$79.56 $58.35
2 48341-AB010 48341-AB010 / Bumper

MATRIX; W/O XRS

$22.30 $16.35
3 48401-02040 48401-02040 / Upper Bracket

MATRIX; W/O XRS

$34.94 $25.62
4 48231-02700 48231-02700 / Coil Spring

MATRIX; W/O XRS

$79.12 $58.04
5 48257-02040 48257-02040 / Insulator

Spring Insulator

MATRIX; W/O XRS

$14.37 $10.54
6 42450-02170 42450-02170 / Hub & Bearing

MATRIX; 1.8L

$488.10 $358.01
7 42101-02200 42101-02200 / Cross-Member

MATRIX

$1,552.67 $1,138.81

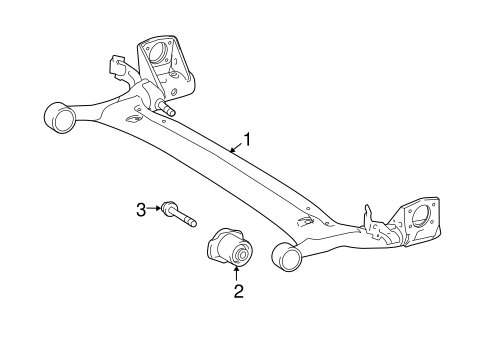

No. Part # Part # / Description List Price Price
1 42101-02200 42101-02200 / Cross-Member

Axle Beam

2WD, W/O INDEPENDENT SUSPENSION

$1,552.67 $1,138.81
2 48725-02250 48725-02250 / Axle Beam Bushing

Axle Beam Bushing, LEFT

2WD, W/O INDEPENDENT SUSPENSION

$90.19 $66.15
2 48725-02250 48725-02250 / Axle Beam Bushing

Axle Beam Bushing, RIGHT

2WD, W/O INDEPENDENT SUSPENSION

$90.19 $66.15
3 90119-A0013 90119-A0013 / Axle Beam Mount Bolt

Axle Beam Mount Bolt, LEFT

2WD, W/O INDEPENDENT SUSPENSION

$6.29 $4.61
3 90119-A0013 90119-A0013 / Axle Beam Mount Bolt

Axle Beam Mount Bolt, RIGHT

2WD, W/O INDEPENDENT SUSPENSION

$6.29 $4.61

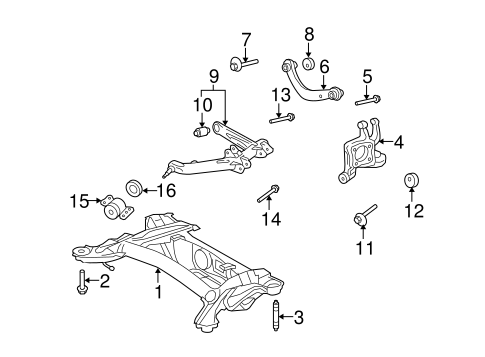

No. Part # Part # / Description List Price Price
1 51206-12152 51206-12152 / Cross-Member

Suspension Cross-member

4WD

$1,278.61 $937.80
2 90119-A0242 90119-A0242 / Suspension Cross-Member Bolt

Suspension Cross-member Bolt, LEFT

4WD

$5.03 $3.68
2 90119-A0242 90119-A0242 / Suspension Cross-Member Bolt

Suspension Cross-member Bolt, RIGHT

4WD

$5.03 $3.68
3 90116-A0019 90116-A0019 / Suspension Cross-Member Stud

Suspension Cross-member Stud, LEFT

4WD

$5.95 $4.37
3 90116-A0019 90116-A0019 / Suspension Cross-Member Stud

Suspension Cross-member Stud, RIGHT

4WD

$5.95 $4.37
4 42305-02120 42305-02120 / Knuckle

Knuckle, LEFT

4WD

$281.55 $206.51
4 42304-02120 42304-02120 / Knuckle

Knuckle, RIGHT

4WD

$281.55 $206.51
5 90080-11512 90080-11512 / Knuckle Bolt

Knuckle Bolt, RIGHT

4WD

$3.96 $2.90
5 90080-11512 90080-11512 / Knuckle Bolt

Knuckle Bolt, LEFT

4WD

$3.96 $2.90
6 48770-20020 48770-20020 / Upper Control Arm

Upper Control Arm, RIGHT

4WD

$200.81 $147.29
6 48770-20020 48770-20020 / Upper Control Arm

Upper Control Arm, LEFT

4WD

$200.81 $147.29
7 48190-32010 48190-32010 / Control Arm Adjust Bolt

Upper Control Arm Adjust Bolt, RIGHT

4WD

$10.52 $7.71
7 48190-32010 48190-32010 / Control Arm Adjust Bolt

Upper Control Arm Adjust Bolt, LEFT

4WD

$10.52 $7.71
8 48198-32040 48198-32040 / Control Arm Adjust Cam

Upper Control Arm Adjust Cam, RIGHT

4WD

$16.21 $11.88
8 48198-32040 48198-32040 / Control Arm Adjust Cam

Upper Control Arm Adjust Cam, LEFT

4WD

$16.21 $11.88
9 48710-12280 48710-12280 / Lower Control Arm

Lower Control Arm, RIGHT

4WD

$267.04 $195.86
9 48720-12110 48720-12110 / Lower Control Arm

Lower Control Arm, LEFT

4WD

$267.04 $195.86
10 48725-32250 48725-32250 / Lower Control Arm Bushing

Lower Control Arm Bushing, LEFT

4WD

$40.68 $29.84
10 48725-32250 48725-32250 / Lower Control Arm Bushing

Lower Control Arm Bushing, RIGHT

4WD

$40.68 $29.84
11 48409-32040 48409-32040 / Lower Control Arm Adjust Bolt

Lower Control Arm Adjust Bolt, LEFT

4WD

$15.63 $11.47
11 48409-32040 48409-32040 / Lower Control Arm Adjust Bolt

Lower Control Arm Adjust Bolt, RIGHT

4WD

$15.63 $11.47
12 48452-32040 48452-32040 / Lower Control Arm Adjust Cam

Lower Control Arm Adjust Cam, RIGHT

4WD

$10.77 $7.91
12 48452-32040 48452-32040 / Lower Control Arm Adjust Cam

Lower Control Arm Adjust Cam, LEFT

4WD

$10.77 $7.91
13 90080-11511 90080-11511 / Lower Control Arm Bolt

Lower Control Arm Bolt, LEFT

4WD, #1

$3.96 $2.90
13 90080-11511 90080-11511 / Lower Control Arm Bolt

Lower Control Arm Bolt, RIGHT

4WD, #1

$3.96 $2.90
14 90105-A0201 90105-A0201 / Lower Control Arm Bolt

Lower Control Arm Bolt, LEFT

4WD, #2

$5.03 $3.68
14 90105-A0201 90105-A0201 / Lower Control Arm Bolt

Lower Control Arm Bolt, RIGHT

4WD, #2

$5.03 $3.68
15 48070-02010 48070-02010 / Support Bracket

Support Bracket, LEFT

4WD

$100.10 $73.42
15 48060-02010 48060-02010 / Support Bracket

Support Bracket, RIGHT

4WD

$100.10 $73.42
16 48752-02010 48752-02010 / Support Bracket Stopper

Support Bracket Stopper, LEFT

4WD

$20.97 $15.38
16 48752-02010 48752-02010 / Support Bracket Stopper

Support Bracket Stopper, RIGHT

4WD

$20.97 $15.38
