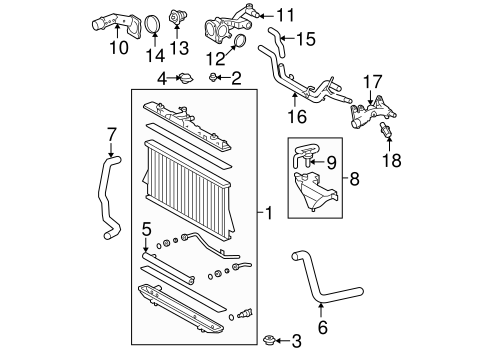

COOLING SYSTEM/RADIATOR & COMPONENTS for 2012 Toyota Highlander

Select RADIATOR & COMPONENTS Part

2012 Toyota Highlander

Change vehicle

No. Part # Part # / Description List Price Price
1 16041-0P240 16041-0P240 / Radiator Assembly

3.5 LITER, US BUILT, W/O TOWING PACKAGE

$397.37 $291.46
1 16041-0P251 16041-0P251 / Radiator Assembly

3.5 LITER, US BUILT, W/TOWING PACKAGE

$406.39 $298.07
2 16523-AD010 16523-AD010 / Radiator Assembly Upper Insulator

Radiator Assembly Upper Insulator, LEFT

3.5 LITER, US BUILT

$5.55 $4.06
2 16523-AD010 16523-AD010 / Radiator Assembly Upper Insulator

Radiator Assembly Upper Insulator, RIGHT

3.5 LITER, US BUILT

$5.55 $4.06
3 16535-0A090 16535-0A090 / Radiator Assembly Lower Insulator

Radiator Assembly Lower Insulator, LEFT

3.5 LITER, US BUILT

$9.37 $6.87
3 16535-0A090 16535-0A090 / Radiator Assembly Lower Insulator

Radiator Assembly Lower Insulator, RIGHT

3.5 LITER, US BUILT

$9.37 $6.87
4 16401-31480 16401-31480 / Radiator Cap

3.5 LITER, US BUILT

$16.61 $12.19
6 16571-0P210 16571-0P210 / Upper Hose

3.5 LITER, US BUILT

$26.32 $19.31
7 16572-0P220 16572-0P220 / Lower Hose

3.5 LITER, US BUILT

$26.32 $19.31
8 16470-0P060 16470-0P060 / Expansion Tank

Reservoir

3.5 LITER, US BUILT

$81.36 $59.67
9 16405-0P060 16405-0P060 / Reservoir Cap

3.5 LITER, US BUILT

$16.46 $12.08
10 16321-0P010 16321-0P010 / Water Inlet

3.5 LITER, US BUILT

$35.34 $25.93
11 16323-0P030 16323-0P030 / Thermostat Housing

Thermostat Hsng

3.5 LITER, US BUILT

$76.40 $56.03
12 16325-0P020 16325-0P020 / Thermostat Hsng Seal

Thermostat Hsng Gasket

3.5 LITER, US BUILT

$2.13 $1.56
13 90916-A3002 90916-A3002 / Thermostat

3.5 LITER, US BUILT

$23.99 $17.59
14 16325-62010 16325-62010 / Thermostat Gasket

Thermostat Seal

3.5 LITER, US BUILT

$6.44 $4.72
15 16261-0P030 16261-0P030 / By-Pass Hose

3.5 LITER, US BUILT

$10.58 $7.76
16 16322-0P010 16322-0P010 / Inlet Pipe

3.5 LITER, US BUILT, W/O TOWING PACKAGE

$81.71 $59.94
16 16322-0P020 16322-0P020 / Inlet Pipe

3.5 LITER, US BUILT, W/TOWING PACKAGE

$90.74 $66.55
17 16331-31140 16331-31140 / Water Outlet

3.5 LITER, US BUILT, W/O TOWING PACKAGE

$66.14 $48.51
17 16331-31150 16331-31150 / Water Outlet

3.5 LITER, US BUILT, W/TOWING PACKAGE

$97.43 $71.47
18 89422-33030 89422-33030 / Temp Sensor

3.5 LITER, US BUILT

$72.15 $52.91
18 89422-33030 89422-33030 / Temp Sensor

Coolant Temp Sensor

HIGHLANDER

$72.15 $52.91

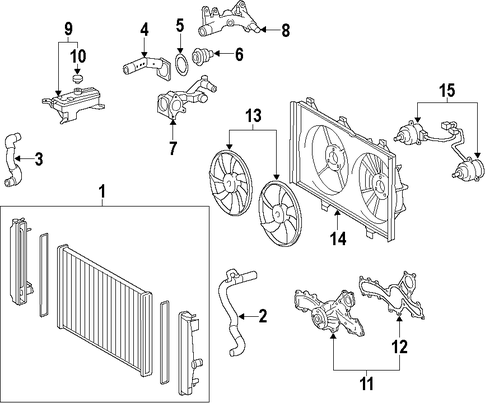

COOLING SYSTEM/RADIATOR & COMPONENTS for 2012 Toyota Highlander #2
No. Part # Part # / Description List Price Price
1 16041-0P240 16041-0P240 / Radiator Assembly

Radiator

HIGHLANDER; W/O TOWING PACKAGE

$397.37 $291.46
1 16041-0P251 16041-0P251 / Radiator Assembly

Radiator

HIGHLANDER; W/TOWING PACKAGE

$406.39 $298.07
4 16321-0P010 16321-0P010 / Water Inlet

HIGHLANDER; ENG. #6XX-84XX, AXX-LXX

$35.34 $25.93
4 16321-31030 16321-31030 / Water Inlet

HIGHLANDER; ENG. #0XXXX-9XXXX

$37.50 $27.50
5 16325-62010 16325-62010 / Thermostat Gasket

HIGHLANDER

$6.44 $4.72
6 90916-A3002 90916-A3002 / Thermostat

HIGHLANDER

$23.99 $17.59
7 16323-31040 16323-31040 / Thermostat Housing

HIGHLANDER; ENG. #0XXXX-9XXXX

$71.46 $52.41
7 16323-0P030 16323-0P030 / Thermostat Housing

HIGHLANDER; ENG. #6XX-84XX, AXX-LXX

$76.40 $56.03
8 16331-31140 16331-31140 / Water Outlet

HIGHLANDER; W/O TOW PACKAGE

$66.14 $48.51
8 16331-31150 16331-31150 / Water Outlet

HIGHLANDER; W/TOW PACKAGE

$97.43 $71.47
9 16470-0P060 16470-0P060 / Expansion Tank

HIGHLANDER

$81.36 $59.67
10 16405-0P060 16405-0P060 / Reservoir Cap

Cap

EXPANSION TANK CAP; HIGHLANDER

$16.46 $12.08
11 16100-09442 16100-09442 / Water Pump

HIGHLANDER

$178.42 $130.87
12 16271-0P010 16271-0P010 / Gasket

HIGHLANDER

$8.75 $6.42
13 16361-0P180 16361-0P180 / Fan Blade

HIGHLANDER; RIGHT; W/TOWING PACKAGE

$93.74 $68.76
13 16361-0P210 16361-0P210 / Fan Blade

HIGHLANDER; RIGHT; W/O TOWING PACKAGE

$90.17 $66.14
13 16361-0P220 16361-0P220 / Fan Blade

HIGHLANDER; LEFT; W/O TOWING PACKAGE

$66.58 $48.84
13 16361-0P170 16361-0P170 / Fan Blade

HIGHLANDER; LEFT; W/TOWING PACKAGE

$68.99 $50.61
14 16711-0P180 16711-0P180 / Fan Shroud

HIGHLANDER; W/O TOW PACKAGE

$106.86 $78.37
14 16711-0P190 16711-0P190 / Fan Shroud

HIGHLANDER; W/TOW PACKAGE

$106.86 $78.37
15 16363-0P220 16363-0P220 / Fan Motor

HIGHLANDER; LEFT; W/O TOWING PACKAGE

$205.38 $150.63
15 16363-0P240 16363-0P240 / Fan Motor

HIGHLANDER; LEFT; W/TOWING PACKAGE

$178.37 $130.82
15 16363-0P190 16363-0P190 / Fan Motor

HIGHLANDER; RIGHT; W/TOWING PACKAGE

$284.61 $208.75
15 16363-0P230 16363-0P230 / Fan Motor

HIGHLANDER; RIGHT; W/O TOWING PACKAGE

$205.38 $150.63
