ELECTRICAL/BULBS - CHASSIS for 2012 Toyota Corolla

Select BULBS - CHASSIS Part

2012 Toyota Corolla

Change vehicle

No. Part # Part # / Description List Price Price
1 81270-12521 81270-12521 / License Lamp

License Lamp, RIGHT

$30.34 $22.25
1 81270-12521 81270-12521 / License Lamp

License Lamp, LEFT

$30.34 $22.25
2 81271-12521 81271-12521 / Lens

Lens, LEFT

$14.14 $10.37
2 81271-12521 81271-12521 / Lens

Lens, RIGHT

$14.14 $10.37
4 81275-12520 81275-12520 / Socket

Socket, LEFT

$19.60 $14.37
4 81275-12520 81275-12520 / Socket

Socket, RIGHT

$19.60 $14.37
5 00234-00192 00234-00192 / Bulb

License Lmp Bulb, RIGHT

$1.04 $0.77
5 00234-00192 00234-00192 / Bulb

License Lmp Bulb, LEFT

$1.04 $0.77
5 00234-00192 00234-00192 / Bulb

License Lamp Bulb

COROLLA

$1.04 $0.77
No. Part # Part # / Description List Price Price
1 81220-0D042 81220-0D042 / Fog Lamp Assembly

Fog Lamp Assembly, LEFT

JAPAN BUILT

$177.45 $130.15
1 81210-0D042 81210-0D042 / Fog Lamp Assembly

Fog Lamp Assembly, RIGHT

JAPAN BUILT

$177.45 $130.15
1 81210-06071 81210-06071 / Fog Lamp Assembly

Fog Lamp Assembly, RIGHT

US BUILT

$177.45 $117.35
1 81220-06071 81220-06071 / Fog Lamp Assembly

Fog Lamp Assembly, LEFT

US BUILT

$177.45 $117.35
1 81210-06071 81210-06071 / Fog Lamp Assembly

COROLLA; RIGHT

$177.45 $117.35
1 81220-06071 81220-06071 / Fog Lamp Assembly

COROLLA; LEFT

$177.45 $117.35
2 93567-A5014 93567-A5014 / Fog Lamp Assembly Screw

Fog Lamp Assembly Screw, RIGHT

$0.98 $0.72
2 93567-A5014 93567-A5014 / Fog Lamp Assembly Screw

Fog Lamp Assembly Screw, LEFT

$0.98 $0.72
3 90981-13081 90981-13081 / Fog Lamp Bulb

Fog Lamp Bulb, RIGHT

JAPAN BUILT, OSRAM

$23.91 $17.53
3 90981-13081 90981-13081 / Fog Lamp Bulb

Fog Lamp Bulb, LEFT

JAPAN BUILT, OSRAM

$23.91 $17.53
3 90981-13075 90981-13075 / Fog Lamp Bulb

Fog Lamp Bulb, LEFT

JAPAN BUILT, PHILIPS

$21.72 $15.93
3 90981-13075 90981-13075 / Fog Lamp Bulb

Fog Lamp Bulb, RIGHT

JAPAN BUILT, PHILIPS

$21.72 $15.93
3 90981-AD006 90981-AD006 / Fog Lamp Bulb

Fog Lamp Bulb, LEFT

US BUILT

$23.91 $17.53
3 90981-AD006 90981-AD006 / Fog Lamp Bulb

Fog Lamp Bulb, RIGHT

US BUILT

$23.91 $17.53
3 90981-AD006 90981-AD006 / Fog Lamp Bulb

COROLLA

$23.91 $17.53
No. Part # Part # / Description List Price Price
1 81130-12F10 81130-12F10 / Lens & Housing

Lens & Housing, RIGHT

JAPAN BUILT, 2011-13

$187.67 $137.65
1 81170-12F10 81170-12F10 / Lens & Housing

Lens & Housing, LEFT

JAPAN BUILT, 2011-13

$187.67 $137.65
2 90109-06382 90109-06382 / Combo Lamp Assembly Bolt

Lens & Housing Bolt, LEFT

JAPAN BUILT, 2011-13

$0.86 $0.63
2 90109-06382 90109-06382 / Combo Lamp Assembly Bolt

Lens & Housing Bolt, RIGHT

JAPAN BUILT, 2011-13

$0.86 $0.63
3 90159-50388 90159-50388 / Headlamp Assembly Screw

Lens & Housing Screw, RIGHT

JAPAN BUILT, 2011-13

$0.86 $0.63
3 90159-50388 90159-50388 / Headlamp Assembly Screw

Lens & Housing Screw, LEFT

JAPAN BUILT, 2011-13

$0.86 $0.63
4 90189-05142 90189-05142 / Headlamp Assembly Grommet

Lens & Housing Grommet, RIGHT

JAPAN BUILT, 2011-13

$1.15 $0.84
4 90189-05142 90189-05142 / Headlamp Assembly Grommet

Lens & Housing Grommet, LEFT

JAPAN BUILT, 2011-13

$1.15 $0.84
5 90179-06127 90179-06127 / Bumper Cover U-Nut

Lens & Housing Nut, LEFT

JAPAN BUILT, 2011-13

$1.09 $0.81
5 90179-06127 90179-06127 / Bumper Cover U-Nut

Lens & Housing Nut, RIGHT

JAPAN BUILT, 2011-13

$1.09 $0.81
6 90981-13047 90981-13047 / Fog Lamp Bulb

Low Beam Bulb, LEFT

JAPAN BUILT, 2011-13

$23.99 $17.59
6 90981-13047 90981-13047 / Fog Lamp Bulb

Headlamp Bulb

COROLLA; LOW BEAM

$23.99 $17.59
7 90981-13046 90981-13046 / High Beam Bulb

High Beam Bulb, RIGHT

JAPAN BUILT, 2011-13

$23.99 $17.59
7 90981-13046 90981-13046 / High Beam Bulb

High Beam Bulb, LEFT

JAPAN BUILT, 2011-13

$23.99 $17.59
7 90981-13046 90981-13046 / High Beam Bulb

Headlamp Bulb

COROLLA; HIGH BEAM

$23.99 $17.59
9 00234-00192 00234-00192 / Bulb

Marker Lamp Bulb, LEFT

JAPAN BUILT, 2011-13

$1.04 $0.77
11 90075-60077 90075-60077 / Marker Lamp Bulb Socket

Socket, RIGHT

JAPAN BUILT, 2011-13, MARKER LAMP

$11.03 $8.09
15 81197-12110 81197-12110 / Repair Bracket

Repair Bracket, RIGHT

JAPAN BUILT, 2011-13, LOWER

$22.70 $16.65
15 81198-12120 81198-12120 / Repair Bracket

Repair Bracket, LEFT

JAPAN BUILT, 2011-13, LOWER

$22.70 $16.65
No. Part # Part # / Description List Price Price
1 81581-12170 81581-12170 / Backup Lamp Assembly

Backup Lamp Assembly, RIGHT

JAPAN BUILT, 2011-13

$62.15 $45.58
1 81591-12140 81591-12140 / Backup Lamp Assembly

Backup Lamp Assembly, LEFT

JAPAN BUILT, 2011-13

$62.15 $45.58
2 90080-17189 90080-17189 / Tail Lamp Assembly Nut

Backup Lamp Assembly Nut, RIGHT

JAPAN BUILT, 2011-13

$1.95 $1.43
2 90080-17189 90080-17189 / Tail Lamp Assembly Nut

Backup Lamp Assembly Nut, LEFT

JAPAN BUILT, 2011-13

$1.95 $1.43
3 81594-12140 81594-12140 / Backup Lamp Assembly Gasket

Backup Lamp Assembly Gasket, LEFT

JAPAN BUILT, 2011-13

$15.60 $11.44
3 81584-12170 81584-12170 / Backup Lamp Assembly Gasket

Backup Lamp Assembly Gasket, RIGHT

JAPAN BUILT, 2011-13

$15.60 $11.44
4 90075-99005 90075-99005 / Socket & Wire

Socket, LEFT

JAPAN BUILT, 2011-13

$8.68 $6.37
4 90075-99005 90075-99005 / Socket & Wire

Socket, RIGHT

JAPAN BUILT, 2011-13

$8.68 $6.37
5 90981-11059 90981-11059 / Bulb

Backup Lamp Bulb, RIGHT

JAPAN BUILT, 2011-13

$4.77 $3.50
5 90981-11059 90981-11059 / Bulb

Backup Lamp Bulb, LEFT

JAPAN BUILT, 2011-13

$4.77 $3.50
5 90981-11059 90981-11059 / Bulb

Back-Up Lamp Bulb

COROLLA

$4.77 $3.50

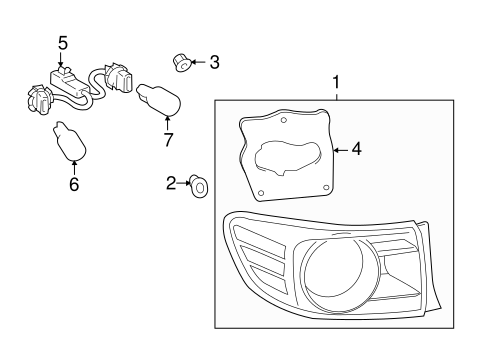

No. Part # Part # / Description List Price Price
1 81551-12C10 81551-12C10 / Combo Lamp Assembly

Combo Lamp Assembly, RIGHT

JAPAN BUILT, 2011-13

$111.77 $81.97
1 81561-12C10 81561-12C10 / Combo Lamp Assembly

Combo Lamp Assembly, LEFT

JAPAN BUILT, 2011-13

$111.77 $81.97
2 81496-0E020 81496-0E020 / Tail Lamp Assembly Guide

Combo Lamp Assembly Guide, LEFT

JAPAN BUILT, 2011-13

$1.18 $0.87
2 81496-0E020 81496-0E020 / Tail Lamp Assembly Guide

Combo Lamp Assembly Guide, RIGHT

JAPAN BUILT, 2011-13

$1.18 $0.87
3 90080-17189 90080-17189 / Tail Lamp Assembly Nut

Combo Lamp Assembly Nut, RIGHT

JAPAN BUILT, 2011-13

$1.95 $1.43
3 90080-17189 90080-17189 / Tail Lamp Assembly Nut

Combo Lamp Assembly Nut, LEFT

JAPAN BUILT, 2011-13

$1.95 $1.43
4 81554-12A30 81554-12A30 / Combo Lamp Assembly Gasket

Combo Lamp Assembly Gasket, LEFT

JAPAN BUILT, 2011-13

$21.03 $15.42
4 81554-12A30 81554-12A30 / Combo Lamp Assembly Gasket

Combo Lamp Assembly Gasket, RIGHT

JAPAN BUILT, 2011-13

$21.03 $15.42
5 81555-12A30 81555-12A30 / Socket & Wire

Socket & Wire, RIGHT

JAPAN BUILT, 2011-13

$26.32 $19.30
5 81555-12A30 81555-12A30 / Socket & Wire

Socket & Wire, LEFT

JAPAN BUILT, 2011-13

$26.32 $19.30
6 90981-13044 90981-13044 / Bulb

Stop Lamp Bulb, LEFT

JAPAN BUILT, 2011-13

$5.23 $3.83
6 90981-13044 90981-13044 / Bulb

Stoplamp Bulb

COROLLA

$5.23 $3.83
7 90981-15021 90981-15021 / Bulb

Signal Lamp Bulb, RIGHT

JAPAN BUILT, 2011-13

$4.80 $3.51
7 90981-15021 90981-15021 / Bulb

Turn Signal Bulb

COROLLA; REAR

$4.80 $3.51
No. Part # Part # / Description List Price Price
1 81150-02B50 81150-02B50 / Composite Assembly

Headlamp Assembly, LEFT

US BUILT, 2011-13, BASE, LE

$227.79 $167.08
1 81110-02B50 81110-02B50 / Headlamp Assembly

Headlamp Assembly, RIGHT

US BUILT, 2011-13, BASE, LE

$227.79 $167.08
1 81110-02B50 81110-02B50 / Headlamp Assembly

Composite Assembly

COROLLA; CE, LE, BASE; RIGHT

$227.79 $167.08
1 81150-02B50 81150-02B50 / Composite Assembly

COROLLA; CE, LE, BASE; LEFT

$227.79 $167.08
2 90159-50388 90159-50388 / Headlamp Assembly Screw

Headlamp Assembly Screw, RIGHT

US BUILT, 2011-13

$0.86 $0.63
2 90159-50388 90159-50388 / Headlamp Assembly Screw

Headlamp Assembly Screw, LEFT

US BUILT, 2011-13

$0.86 $0.63
3 90189-05142 90189-05142 / Headlamp Assembly Grommet

Headlamp Assembly Grommet, RIGHT

US BUILT, 2011-13

$1.15 $0.84
3 90189-05142 90189-05142 / Headlamp Assembly Grommet

Headlamp Assembly Grommet, LEFT

US BUILT, 2011-13

$1.15 $0.84
4 90179-06127 90179-06127 / Bumper Cover U-Nut

Headlamp Assembly Nut, LEFT

US BUILT, 2011-13

$1.09 $0.81
4 90179-06127 90179-06127 / Bumper Cover U-Nut

Headlamp Assembly Nut, RIGHT

US BUILT, 2011-13

$1.09 $0.81
6 90981-13047 90981-13047 / Fog Lamp Bulb

Low Beam Bulb, RIGHT

US BUILT, 2011-13

$23.99 $17.59
8 90981-AF004 90981-AF004 / Signal Bulb

Signal Lamp Bulb, LEFT

US BUILT, 2011-13

$8.30 $6.09
8 90981-AF004 90981-AF004 / Signal Bulb

Signal Lamp Bulb, RIGHT

US BUILT, 2011-13

$8.30 $6.09
8 90981-AF004 90981-AF004 / Signal Bulb

Turn Signal Bulb

COROLLA; FRONT

$8.30 $6.09
9 00234-00192 00234-00192 / Bulb

Marker Lamp Bulb, RIGHT

US BUILT, 2011-13

$1.04 $0.77
10 90075-60060 90075-60060 / Signal Bulb Socket

Socket, LEFT

US BUILT, 2011-13, SIGNAL LAMP

$9.91 $7.27
10 90075-60060 90075-60060 / Signal Bulb Socket

Socket, RIGHT

US BUILT, 2011-13, SIGNAL LAMP

$9.91 $7.27
11 90075-60077 90075-60077 / Marker Lamp Bulb Socket

Socket, LEFT

US BUILT, 2011-13, MARKER LAMP

$11.03 $8.09
12 90069-81008 90069-81008 / Low Beam Bulb Cover

Cover, LEFT

US BUILT, 2011-13

$11.67 $8.55
12 90069-81008 90069-81008 / Low Beam Bulb Cover

Cover, RIGHT

US BUILT, 2011-13

$11.67 $8.55
13 81118-02B50 81118-02B50 / Headlamp Bracket

Headlamp Bracket, RIGHT

US BUILT, 2011-13

$8.10 $5.94
13 81158-02B50 81158-02B50 / Headlamp Bracket

Headlamp Bracket, LEFT

US BUILT, 2011-13

$8.10 $5.94
14 81194-12110 81194-12110 / Repair Bracket

Repair Bracket, LEFT

US BUILT, 2011-13, UPPER, OUTER

$10.14 $7.44
14 81193-12120 81193-12120 / Repair Bracket

Repair Bracket, RIGHT

US BUILT, 2011-13, UPPER, OUTER

$10.14 $7.44
15 81195-12170 81195-12170 / Repair Bracket

Repair Bracket, RIGHT

US BUILT, 2011-13, UPPER, INNER

$18.07 $13.26
15 81196-12170 81196-12170 / Repair Bracket

Repair Bracket, LEFT

US BUILT, 2011-13, UPPER, INNER

$18.07 $13.26
