ELECTRICAL/SENDERS for 2012 Toyota Avalon

Select SENDERS Part

2012 Toyota Avalon

Change vehicle

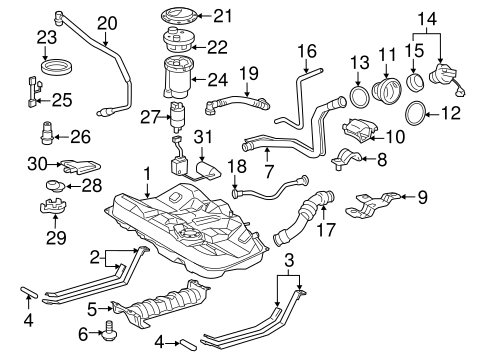

No. Part # Part # / Description List Price Price
1 77001-06112 77001-06112 / Fuel Tank

- -
2 77601-07010 77601-07010 / Mount Strap

Tank Strap, RIGHT

$56.09 $42.07
3 77602-07010 77602-07010 / Mount Strap

Tank Strap, LEFT

$56.09 $42.07
4 90250-08019 90250-08019 / Mount Strap Pin

Tank Strap Pin, RIGHT

$5.75 $4.31
4 90250-08019 90250-08019 / Mount Strap Pin

Tank Strap Pin, LEFT

$5.75 $4.31
5 77631-06060 77631-06060 / Tank Shield

Protector

$65.37 $49.03
6 90080-11169 90080-11169 / Heat Shield Bolt

Protector Bolt

$0.63 $0.47
7 77201-07070 77201-07070 / Filler Pipe

$185.35 $139.01
8 77217-07010 77217-07010 / Filler Pipe Support

Filler Pipe Upper Support

$10.92 $8.19
9 77216-07010 77216-07010 / Filler Pipe Support

Filler Pipe Lower Support

$18.07 $13.55
10 77278-07030 77278-07030 / Filler Neck Protector

Filler Pipe Protector

$22.24 $16.68
11 77291-AC030 77291-AC030 / Shield

$28.96 $21.72
12 77391-20030 77391-20030 / Pocket O-Ring

Shield Retainer Ring

OUTER

$3.42 $2.57
13 77391-02040 77391-02040 / Pocket O-Ring

Shield Retainer Ring

INNER

$2.90 $2.18
14 77300-06040 77300-06040 / Filler Cap

$20.96 $15.72
15 77316-06070 77316-06070 / Filler Cap Gasket

$17.93 $13.45
16 77226-07010 77226-07010 / Breather Tube

$43.56 $32.67
17 77213-06040 77213-06040 / Connector Hose

Filler Hose

$42.15 $31.61
18 77203-06020 77203-06020 / Suction Tube

$37.15 $27.86
19 77404-06050 77404-06050 / Vent Hose

$15.98 $11.99
20 77209-06030 77209-06030 / Suction Tube

Pressure Line

$35.57 $26.68
21 77168-33050 77168-33050 / Suction Tube Plate

Upper Plate

$25.54 $19.16
22 77024-06020 77024-06020 / Suction Valve

Lower Plate

$37.50 $28.13
23 77169-33020 77169-33020 / Fuel Pump Gasket

Lower Plate Gasket

$15.23 $11.42
24 23300-0A020 23300-0A020 / Fuel Filter

AVALON

$37.79 $28.34
25 77785-06020 77785-06020 / Fuel Pump Harness

Harness

$7.04 $5.28
26 23280-20060 23280-20060 / Fuel Pressure Regulator

Pressure Reg

$149.29 $111.97
26 23280-20060 23280-20060 / Fuel Pressure Regulator

AVALON

$149.29 $111.97
27 23221-0A040 23221-0A040 / Fuel Pump

$342.86 $257.15
28 23249-0A020 23249-0A020 / Fuel Pump Cushion

$16.00 $12.00
29 77175-06020 77175-06020 / Fuel Filter Support

Fuel Pump Support

$10.00 $7.50
30 23217-0C010 23217-0C010 / Fuel Filter

Strainer

$14.14 $10.61
31 83320-07010 83320-07010 / Fuel Gauge Sending Unit

Sending Unit

$77.15 $57.86
31 83320-07010 83320-07010 / Fuel Gauge Sending Unit

AVALON

$77.15 $57.86
No. Part # Part # / Description List Price Price
N/A 83530-0E010 83530-0E010 / Oil Pressure Sending Unit

AVALON; DENSO

$47.78 $35.84
