ELECTRICAL/BULBS - CHASSIS for 2012 Toyota Avalon

Select BULBS - CHASSIS Part

2012 Toyota Avalon

Change vehicle

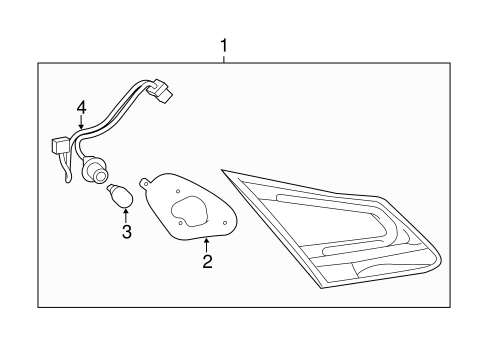

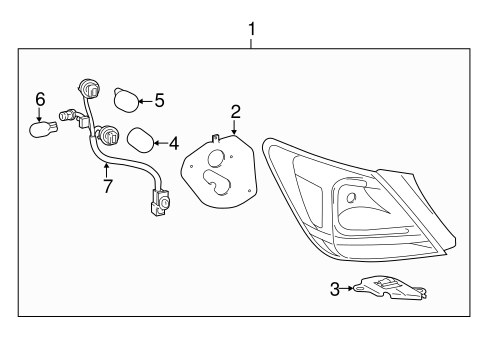

No. Part # Part # / Description List Price Price
1 81550-07060 81550-07060 / Combo Lamp Assembly

Combo Lamp Assembly, RIGHT

$197.99 $148.49
1 81560-07060 81560-07060 / Combo Lamp Assembly

Combo Lamp Assembly, LEFT

$197.99 $148.49
2 81552-07060 81552-07060 / Combo Lamp Assembly Gasket

Combo Lamp Assembly Gasket, RIGHT

$15.46 $11.60
2 81552-07060 81552-07060 / Combo Lamp Assembly Gasket

Combo Lamp Assembly Gasket, LEFT

$15.46 $11.60
3 52562-0T010 52562-0T010 / Combo Lamp Assembly Retainer Bracket

Combo Lamp Assembly Retainer Bracket, RIGHT

$8.91 $6.68
3 52563-0T010 52563-0T010 / Combo Lamp Assembly Retainer Bracket

Combo Lamp Assembly Retainer Bracket, LEFT

$8.91 $6.68
4 90981-15011 90981-15011 / Bulb

Signal Lamp Bulb, LEFT

$6.61 $4.96
4 90981-15011 90981-15011 / Bulb

Signal Lamp Bulb, RIGHT

$6.61 $4.96
4 90981-15011 90981-15011 / Bulb

Exterior Bulbs

AVALON; REAR COMBINATION/BACK-UP; REAR TURN SIGNAL

$6.61 $4.96
5 90981-13043 90981-13043 / Bulb

Stop Lamp Bulb, LEFT

$5.06 $3.80
5 90981-13043 90981-13043 / Bulb

Stop Lamp Bulb, RIGHT

$5.06 $3.80
5 90981-13043 90981-13043 / Bulb

Exterior Bulbs

AVALON; REAR COMBINATION/BACK-UP; STOP LAMP

$5.06 $3.80
6 00234-00192 00234-00192 / Bulb

Marker Lamp Bulb, RIGHT

$1.04 $0.78
6 00234-00192 00234-00192 / Bulb

Marker Lamp Bulb, LEFT

$1.04 $0.78
7 81555-07060 81555-07060 / Socket & Wire

Socket & Wire, RIGHT

$15.60 $11.70
7 81555-07060 81555-07060 / Socket & Wire

Socket & Wire, LEFT

$15.60 $11.70
No. Part # Part # / Description List Price Price
1 81150-07110 81150-07110 / Composite Headlamp

Headlamp Assembly, LEFT

W/O HID

$402.83 $302.12
1 81110-07110 81110-07110 / Composite Headlamp

Headlamp Assembly, RIGHT

W/O HID

$402.83 $302.12
1 81150-07110 81150-07110 / Composite Headlamp

AVALON; LEFT; W/O HID; W/O SPORT PKG

$402.83 $302.12
1 81110-07110 81110-07110 / Composite Headlamp

AVALON; RIGHT; W/O HID; W/O SPORT PKG

$402.83 $302.12
2 90109-A0003 90109-A0003 / Bumper Cover Upper Bolt

Headlamp Assembly Bolt, LEFT

W/O HID, INNER

$0.83 $0.62
2 90109-A0003 90109-A0003 / Bumper Cover Upper Bolt

Headlamp Assembly Bolt, RIGHT

W/O HID, INNER

$0.83 $0.62
3 90105-A0076 90105-A0076 / Headlamp Assembly Bolt

Headlamp Assembly Bolt, RIGHT

W/O HID, OUTER

$0.83 $0.62
3 90105-A0076 90105-A0076 / Headlamp Assembly Bolt

Headlamp Assembly Bolt, LEFT

W/O HID, OUTER

$0.83 $0.62
4 90159-A0034 90159-A0034 / Side Support Retainer Screw

Headlamp Assembly Screw, RIGHT

W/O HID

$0.83 $0.62
4 90159-A0034 90159-A0034 / Side Support Retainer Screw

Headlamp Assembly Screw, LEFT

W/O HID

$0.83 $0.62
5 90189-05142 90189-05142 / Headlamp Assembly Grommet

Headlamp Assembly Grommet, LEFT

W/O HID

$1.12 $0.84
5 90189-05142 90189-05142 / Headlamp Assembly Grommet

Headlamp Assembly Grommet, RIGHT

W/O HID

$1.12 $0.84
6 90981-AD008 90981-AD008 / Low Beam Bulb

Low Beam Bulb, RIGHT

W/O HID

$23.65 $17.74
6 90981-AD008 90981-AD008 / Low Beam Bulb

Low Beam Bulb, LEFT

W/O HID

$23.65 $17.74
6 90981-AD008 90981-AD008 / Low Beam Bulb

Headlamp Bulb

AVALON; LOW BEAM; W/O HID

$23.65 $17.74
7 90981-13046 90981-13046 / High Beam Bulb

High Beam Bulb, LEFT

W/O HID

$23.73 $17.80
7 90981-13046 90981-13046 / High Beam Bulb

Headlamp Bulb

AVALON; HIGH BEAM

$23.73 $17.80
9 00234-00192 00234-00192 / Bulb

Park Lamp Bulb, LEFT

W/O HID

$1.04 $0.78
9 00234-00192 00234-00192 / Bulb

Exterior Bulbs

AVALON; LICENSE PLATE LAMP

$1.04 $0.78
10 81515-AE010 81515-AE010 / Socket

Socket, LEFT

W/O HID, SIGNAL LAMP BULB

$17.79 $13.34
10 81515-AE010 81515-AE010 / Socket

Socket, RIGHT

W/O HID, SIGNAL LAMP BULB

$17.79 $13.34
11 81138-22680 81138-22680 / Marker Lamp Bulb Socket

Socket, LEFT

W/O HID, PARK LAMP BULB

$15.31 $11.48
No. Part # Part # / Description List Price Price
1 81145-07100 81145-07100 / Composite Headlamp

Lens & Housing, RIGHT

W/HID

$453.59 $340.19
1 81185-07100 81185-07100 / Composite Headlamp

Lens & Housing, LEFT

W/HID

$453.59 $340.19
1 81185-07100 81185-07100 / Composite Headlamp

AVALON; LEFT; W/HID

$453.59 $340.19
1 81145-07100 81145-07100 / Composite Headlamp

AVALON; RIGHT; W/HID

$453.59 $340.19
2 90109-A0003 90109-A0003 / Bumper Cover Upper Bolt

Lens & Housing Bolt, RIGHT

W/HID, INNER

$0.83 $0.62
2 90109-A0003 90109-A0003 / Bumper Cover Upper Bolt

Lens & Housing Bolt, LEFT

W/HID, INNER

$0.83 $0.62
3 90105-A0076 90105-A0076 / Headlamp Assembly Bolt

Lens & Housing Bolt, LEFT

W/HID, OUTER

$0.83 $0.62
3 90105-A0076 90105-A0076 / Headlamp Assembly Bolt

Lens & Housing Bolt, RIGHT

W/HID, OUTER

$0.83 $0.62
4 90159-A0034 90159-A0034 / Side Support Retainer Screw

Lens & Housing Screw, RIGHT

W/HID

$0.83 $0.62
4 90159-A0034 90159-A0034 / Side Support Retainer Screw

Lens & Housing Screw, LEFT

W/HID

$0.83 $0.62
5 90189-05142 90189-05142 / Headlamp Assembly Grommet

Lens & Housing Grommet, LEFT

W/HID

$1.12 $0.84
5 90189-05142 90189-05142 / Headlamp Assembly Grommet

Lens & Housing Grommet, RIGHT

W/HID

$1.12 $0.84
6 90981-20027 90981-20027 / Hid Bulb

Hid Bulb, LEFT

W/HID

$175.00 $131.25
6 90981-20027 90981-20027 / Hid Bulb

Hid Bulb, RIGHT

W/HID

$175.00 $131.25
6 90981-20027 90981-20027 / Hid Bulb

Headlamp Bulb

AVALON; LOW BEAM; W/HID

$175.00 $131.25
7 90981-13046 90981-13046 / High Beam Bulb

High Beam Bulb, RIGHT

W/HID

$23.73 $17.80
8 81139-AE020 81139-AE020 / High Beam Bulb Protector

Rear Cover, LEFT

W/HID

$10.46 $7.85
8 81139-AE020 81139-AE020 / High Beam Bulb Protector

Rear Cover, RIGHT

W/HID

$10.46 $7.85
9 90981-AF005 90981-AF005 / Signal Lamp Bulb

Signal Lamp Bulb, LEFT

W/HID

$8.22 $6.17
9 90981-AF005 90981-AF005 / Signal Lamp Bulb

Signal Lamp Bulb, RIGHT

W/HID

$8.22 $6.17
9 90981-AF005 90981-AF005 / Signal Lamp Bulb

Exterior Bulbs

AVALON; FRONT TURN SIGNAL

$8.22 $6.17
10 00234-00192 00234-00192 / Bulb

Park Lamp Bulb, RIGHT

W/HID

$1.04 $0.78
12 81138-22680 81138-22680 / Marker Lamp Bulb Socket

Socket, RIGHT

W/HID, PARK LAMP BULB

$15.31 $11.48
13 85967-08020 85967-08020 / Control Module

Control Module, LEFT

W/HID

$199.75 $149.81
13 85967-08020 85967-08020 / Control Module

Control Module, RIGHT

W/HID

$199.75 $149.81
14 90075-23002 90075-23002 / Computer O-Ring

Control Module Packing, LEFT

W/HID

$4.08 $3.06
14 90075-23002 90075-23002 / Computer O-Ring

Control Module Packing, RIGHT

W/HID

$4.08 $3.06
No. Part # Part # / Description List Price Price
N/A 99132-11060 99132-11060 / Exterior Bulbs

AVALON; FRONT PARK LAMP

$1.47 $1.10
