COOLING SYSTEM/RADIATOR & COMPONENTS for 2012 Toyota Avalon

Select RADIATOR & COMPONENTS Part

2012 Toyota Avalon

Change vehicle

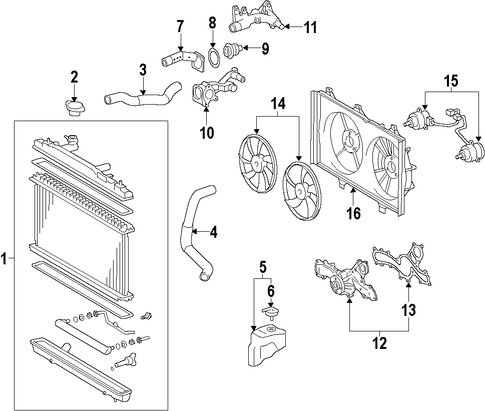

COOLING SYSTEM/RADIATOR & COMPONENTS for 2012 Toyota Avalon #1
No. Part # Part # / Description List Price Price
N/A 89257-30060 89257-30060 / Control Module

AVALON

$348.58 $261.44
1 16400-AD010 16400-AD010 / Radiator Assembly

Radiator

AVALON

$377.48 $283.11
5 16470-AD010 16470-AD010 / Reservoir Assembly

Expansion Tank

AVALON

$58.65 $43.99
6 16471-AA010 16471-AA010 / Reservoir Cap

Cap

EXPANSION TANK CAP; AVALON

$6.12 $4.59
7 16321-0P010 16321-0P010 / Water Inlet

AVALON

$34.97 $26.23
8 16325-62010 16325-62010 / Thermostat Gasket

Gasket

AVALON

$6.35 $4.76
9 90916-A3002 90916-A3002 / Thermostat

AVALON

$24.02 $18.02
10 16323-31040 16323-31040 / Thermostat Housing

AVALON; JAPAN PART

$70.71 $53.03
10 16323-0P030 16323-0P030 / Thermostat Housing

AVALON; USA PART

$75.71 $56.78
11 16331-31140 16331-31140 / Water Outlet

AVALON

$65.37 $49.03
12 16100-09442 16100-09442 / Pump Assembly Water

Water Pump

AVALON

$178.76 $134.07
13 16271-0P010 16271-0P010 / Gasket

AVALON

$8.65 $6.49
14 16361-AD010 16361-AD010 / Fan Blade

AVALON; LEFT

$57.97 $43.48
14 16361-AD020 16361-AD020 / Fan Blade

AVALON; RIGHT

$57.97 $43.48
15 16363-0P030 16363-0P030 / Fan Motor

AVALON; RIGHT

$205.52 $154.14
15 16363-0A120 16363-0A120 / Fan Motor

AVALON; LEFT

$205.52 $154.14
16 16711-AD010 16711-AD010 / Fan Shroud

AVALON

$78.76 $59.07

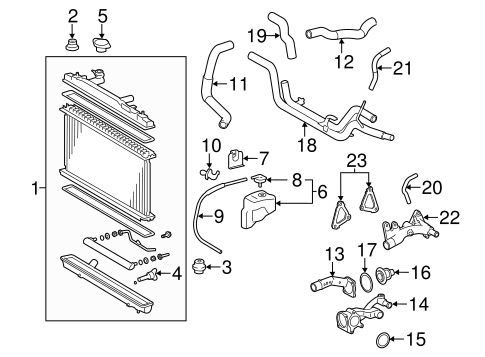

No. Part # Part # / Description List Price Price
1 16400-AD010 16400-AD010 / Radiator Assembly

$377.48 $283.11
2 16523-AD010 16523-AD010 / Radiator Assembly Upper Insulator

Radiator Assembly Upper Insulator, RIGHT

$5.49 $4.12
2 16523-AD010 16523-AD010 / Radiator Assembly Upper Insulator

Radiator Assembly Upper Insulator, LEFT

$5.49 $4.12
3 16535-0A050 16535-0A050 / Radiator Assembly Lower Insulator

Radiator Assembly Lower Insulator, LEFT

$36.43 $27.32
3 16535-0A050 16535-0A050 / Radiator Assembly Lower Insulator

Radiator Assembly Lower Insulator, RIGHT

$36.43 $27.32
4 16417-21280 16417-21280 / Drain Plug

$5.29 $3.97
5 16401-31480 16401-31480 / Radiator Cap

$16.44 $12.33
6 16470-AD010 16470-AD010 / Reservoir Assembly

$58.65 $43.99
7 16611-0A010 16611-0A010 / Reservoir Assembly Bracket

$14.28 $10.71
8 16471-AA010 16471-AA010 / Reservoir Cap

$6.12 $4.59
9 16472-AD010 16472-AD010 / Overflow Hose

$17.21 $12.91
10 90469-12014 90469-12014 / Overflow Hose Clamp

$2.96 $2.22
11 16572-0P070 16572-0P070 / Lower Hose

$25.56 $19.17
12 16571-0P070 16571-0P070 / Upper Hose

$6.00 $4.50
13 16321-0P010 16321-0P010 / Water Inlet

$34.97 $26.23
14 16323-0P030 16323-0P030 / Thermostat Housing

Housing

$75.71 $56.78
15 16325-0P020 16325-0P020 / Thermostat Hsng Seal

Housing Gasket

$2.07 $1.55
16 90916-A3002 90916-A3002 / Thermostat

$24.02 $18.02
17 16325-62010 16325-62010 / Thermostat Gasket

$6.35 $4.76
18 16322-0P010 16322-0P010 / Inlet Pipe

$80.71 $60.53
19 16261-0P030 16261-0P030 / By-Pass Hose

#1

$10.49 $7.87
20 16264-0P031 16264-0P031 / By-Pass Hose

#2

$6.77 $5.08
21 16267-0P020 16267-0P020 / By-Pass Hose

#3

$6.77 $5.08
22 16331-31140 16331-31140 / Water Outlet

$65.37 $49.03
23 16341-AD010 16341-AD010 / Water Outlet Gasket

$7.82 $5.87
