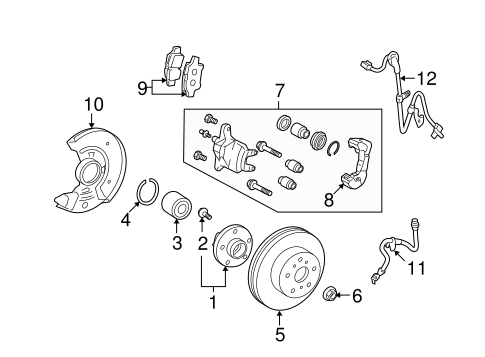

BRAKES/FRONT BRAKES for 2012 Scion xD

Select FRONT BRAKES Part

2012 Scion xD

Change vehicle

No. Part # Part # / Description List Price Price
1 43502-52040 43502-52040 / Front Hub

Hub, RIGHT

$146.42 $107.40
1 43502-52040 43502-52040 / Front Hub

Hub, LEFT

$146.42 $107.40
2 90942-02049 90942-02049 / Wheel Stud

Wheel Stud, LEFT

$4.25 $3.12
2 90942-02049 90942-02049 / Wheel Stud

Wheel Stud, RIGHT

$4.25 $3.12
3 90369-40009 90369-40009 / Bearing

Bearing, LEFT

$60.02 $44.02
3 90369-40009 90369-40009 / Bearing

Bearing, RIGHT

$60.02 $44.02
4 90521-80003 90521-80003 / Bearing Snap Ring

Bearing Snap Ring, RIGHT

$6.41 $4.70
4 90521-80003 90521-80003 / Bearing Snap Ring

Bearing Snap Ring, LEFT

$6.41 $4.70
5 43512-12710 43512-12710 / Rotor

Rotor, RIGHT

$72.84 $53.42
5 43512-12710 43512-12710 / Rotor

Rotor, LEFT

$72.84 $53.42
5 43512-12710 43512-12710 / Rotor

XD

$72.84 $53.42
6 90080-17238 90080-17238 / Axle Nut

Axle Nut, LEFT

$9.40 $6.89
6 90080-17238 90080-17238 / Axle Nut

Axle Nut, RIGHT

$9.40 $6.89
7 47750-12A10 47750-12A10 / Caliper

Caliper, LEFT

$370.07 $271.44
7 47730-12A10 47730-12A10 / Caliper

Caliper, RIGHT

$370.07 $271.44
7 47730-12A10 47730-12A10 / Caliper

XD; RIGHT

$370.07 $271.44
7 47750-12A10 47750-12A10 / Caliper

XD; LEFT

$370.07 $271.44
8 47721-12A10 47721-12A10 / Carrier

Caliper Mount, RIGHT

$128.03 $93.90
8 47722-12A10 47722-12A10 / Carrier

Caliper Mount, LEFT

$128.03 $93.90
9 04465-02220 04465-02220 / Brake Pads

$99.00 $72.47
9 04465-02220 04465-02220 / Brake Pads

Pads

XD

$99.00 $72.47
10 47781-52040 47781-52040 / Backing Plate

Splash Shield, RIGHT

$25.86 $18.97
10 47782-52040 47782-52040 / Backing Plate

Splash Shield, LEFT

$25.86 $18.97
10 47782-52040 47782-52040 / Backing Plate

XD; LEFT

$25.86 $18.97
10 47781-52040 47781-52040 / Backing Plate

XD; RIGHT

$25.86 $18.97
11 90947-02G34 90947-02G34 / Flex Hose

Brake Hose, RIGHT

$76.40 $56.03
11 90947-02G35 90947-02G35 / Flex Hose

Brake Hose, LEFT

$76.40 $56.03
11 90947-02G34 90947-02G34 / Flex Hose

XD; RIGHT

$76.40 $56.03
11 90947-02G35 90947-02G35 / Flex Hose

XD; LEFT

$76.40 $56.03
12 89543-52120 89543-52120 / ABS Sensor Wire

ABS Sensor, LEFT

$245.43 $180.01
12 89542-52120 89542-52120 / ABS Sensor Wire

ABS Sensor, RIGHT

$245.43 $180.01
12 89543-52120 89543-52120 / ABS Sensor Wire

Front Speed Sensor

XD; LEFT

$245.43 $180.01
12 89542-52120 89542-52120 / ABS Sensor Wire

Front Speed Sensor

XD; RIGHT

$245.43 $180.01
No. Part # Part # / Description List Price Price
layer_9 04947-42050 04947-42050 / Brake Pads Hardware Kit

$28.94 $21.23
N/A 47731-12A10 47731-12A10 / Caliper Piston

XD

$30.66 $22.48
No. Part # Part # / Description List Price Price
N/A 04478-12060 04478-12060 / Overhaul Kit

XD

$42.78 $31.38
