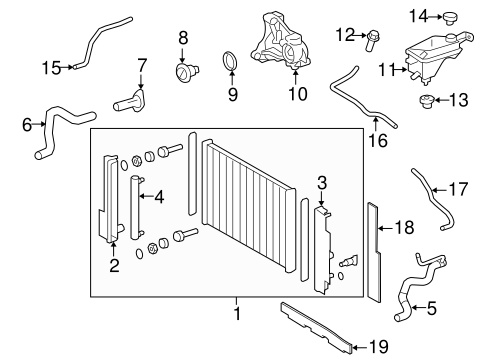

COOLING SYSTEM/RADIATOR & COMPONENTS for 2012 Scion xB

Select RADIATOR & COMPONENTS Part

2012 Scion xB

Change vehicle

No. Part # Part # / Description List Price Price
1 16400-28661 16400-28661 / Radiator Assembly

AUTO TRANS

$378.00 $277.25
1 16400-28651 16400-28651 / Radiator Assembly

MANUAL TRANS

$339.59 $249.08
2 16441-28660 16441-28660 / Tank

UPPER, AUTO TRANS

$149.61 $109.73
2 16441-28650 16441-28650 / Tank

UPPER, MANUAL TRANS

$149.61 $109.73
3 16461-28660 16461-28660 / Tank

LOWER

$133.35 $97.81
4 16491-28660 16491-28660 / Trans Cooler

$367.83 $269.79
5 16571-28320 16571-28320 / Upper Hose

AUTO TRANS

$34.21 $25.10
5 16571-28290 16571-28290 / Upper Hose

MANUAL TRANS

$31.80 $23.33
6 16572-28240 16572-28240 / Lower Hose

$23.10 $16.95
7 16321-0H011 16321-0H011 / Thermostat Hsng

Water Inlet Pipe

$27.99 $20.52
8 90916-03136 90916-03136 / Thermostat

$23.99 $17.59
9 16325-0T030 16325-0T030 / Thermostat Gasket

$6.09 $4.47
10 16323-0H011 16323-0H011 / Thermostat Housing

Thermostat Hsng

$142.89 $104.80
11 16480-22080 16480-22080 / Reservoir

$206.60 $151.52
12 90119-A0245 90119-A0245 / Lower Quarter Trim Screw

Reservoir Mount Bolt

$0.92 $0.67
13 90480-18010 90480-18010 / Reservoir Tank Grommet

Reservoir Grommet

$3.33 $2.44
14 16475-51010 16475-51010 / Cap

Reservoir Cap

$10.32 $7.56
15 16261-28110 16261-28110 / By-Pass Hose

RESERVOIR, UPPER

$19.66 $14.42
16 16264-21090 16264-21090 / By-Pass Hose

RESERVOIR, LOWER

$21.14 $15.51
17 16267-28110 16267-28110 / By-Pass Hose

LOWER TANK

$15.37 $11.27
18 16561-28050 16561-28050 / Radiator Seal

Radiator Seal, LEFT

SIDE

$10.52 $7.71
18 16561-28060 16561-28060 / Radiator Seal

Radiator Seal, RIGHT

SIDE

$13.42 $9.85
19 16561-28070 16561-28070 / Radiator Seal

LOWER

$6.44 $4.72

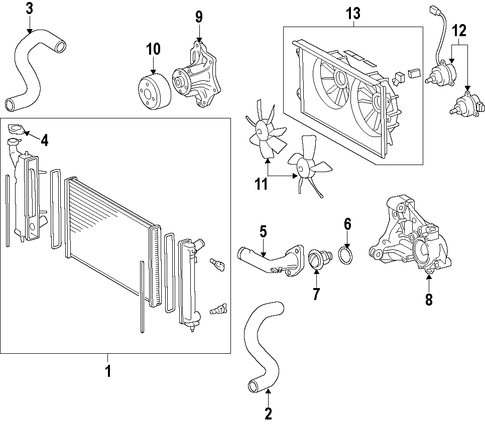

COOLING SYSTEM/RADIATOR & COMPONENTS for 2012 Scion xB #2
No. Part # Part # / Description List Price Price
1 16400-28651 16400-28651 / Radiator Assembly

Radiator

XB; MANUAL TRANS

$339.59 $249.08
1 16400-28661 16400-28661 / Radiator Assembly

Radiator

XB; AUTO TRANS

$378.00 $277.25
5 16321-0H060 16321-0H060 / Water Inlet

XB

- -
6 16325-0T030 16325-0T030 / Thermostat Gasket

Gasket

XB; JAPAN PART

$6.09 $4.47
7 90916-03136 90916-03136 / Thermostat

XB; USA PART

$23.99 $17.59
8 16323-0H011 16323-0H011 / Thermostat Housing

XB

$142.89 $104.80
11 16361-28360 16361-28360 / Fan Blade

XB; RIGHT; FROM 03/08

$105.11 $77.09
11 16361-28350 16361-28350 / Fan Blade

XB; LEFT; FROM 03/08

$81.26 $59.61
12 16363-28390 16363-28390 / Fan Motor

XB; LEFT

$218.55 $160.30
12 16363-28400 16363-28400 / Fan Motor

XB; RIGHT

$218.55 $160.30
13 16711-28400 16711-28400 / Fan Shroud

XB

$106.86 $78.37
