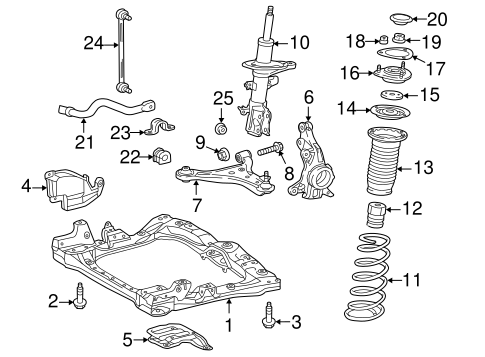

FRONT SUSPENSION/STABILIZER BAR & COMPONENTS for 2012 Scion iQ

Select STABILIZER BAR & COMPONENTS Part

2012 Scion iQ

Change vehicle

No. Part # Part # / Description List Price Price
1 51100-74022 51100-74022 / Engine Cradle

$1,449.00 $1,086.75
2 90119-12389 90119-12389 / Suspension Cross-Member Bolt

Engine Cradle Front Bolt

$2.21 $1.66
3 91674-K1460 91674-K1460 / Engine Cradle Rear Bolt

$4.83 $3.62
4 51443-74011 51443-74011 / Engine Cover

Engine Cover, RIGHT

$27.73 $20.80
5 51442-74010 51442-74010 / Engine Cover

Engine Cover, LEFT

$27.76 $20.82
6 43211-74020 43211-74020 / Knuckle

Knuckle, RIGHT

$225.69 $169.27
6 43212-74020 43212-74020 / Knuckle

Knuckle, LEFT

$225.69 $169.27
7 48068-79018 48068-79018 / Lower Control Arm

Lower Control Arm, RIGHT

$298.80 $224.10
7 48069-79018 48069-79018 / Lower Control Arm

Lower Control Arm, LEFT

$298.80 $224.10
8 90119-14150 90119-14150 / Lower Control Arm Mount Bolt

Lower Control Arm Mount Bolt, LEFT

$5.75 $4.31
8 90119-14150 90119-14150 / Lower Control Arm Mount Bolt

Lower Control Arm Mount Bolt, RIGHT

$5.75 $4.31
9 90080-17223 90080-17223 / Ft Lateral Arm Nut

Lower Control Arm Nut, LEFT

$1.64 $1.23
9 90080-17223 90080-17223 / Ft Lateral Arm Nut

Lower Control Arm Nut, RIGHT

$1.64 $1.23
10 48520-74081 48520-74081 / Strut

Strut, LEFT

$141.63 $106.22
10 48510-74081 48510-74081 / Strut

Strut, RIGHT

$141.63 $106.22
11 48131-74080 48131-74080 / Coil Spring

Spring, RIGHT

OEM

$73.99 $55.49
11 48131-74080 48131-74080 / Coil Spring

Spring, LEFT

OEM

$73.99 $55.49
12 48331-74010 48331-74010 / Strut Bumper

Bumper, RIGHT

$12.76 $9.57
12 48331-74010 48331-74010 / Strut Bumper

Bumper, LEFT

$12.76 $9.57
13 48157-52030 48157-52030 / Insulator

Insulator, LEFT

$19.42 $14.57
13 48157-52030 48157-52030 / Insulator

Insulator, RIGHT

$19.42 $14.57
14 48471-74010 48471-74010 / Spring Seat

Seat, RIGHT

$29.51 $22.13
14 48471-74010 48471-74010 / Spring Seat

Seat, LEFT

$29.51 $22.13
15 48619-74010 48619-74010 / Strut Bearing

Bearing, LEFT

$5.89 $4.42
15 48619-74010 48619-74010 / Strut Bearing

Bearing, RIGHT

$5.89 $4.42
16 48609-74020 48609-74020 / Strut Mount

Strut Mount, RIGHT

$77.12 $57.84
16 48609-74020 48609-74020 / Strut Mount

Strut Mount, LEFT

$77.12 $57.84
17 48687-74010 48687-74010 / Strut Mount Plate

Strut Mount Plate, RIGHT

$4.60 $3.45
17 48687-74010 48687-74010 / Strut Mount Plate

Strut Mount Plate, LEFT

$4.60 $3.45
18 90178-08010 90178-08010 / Strut Mount Nut

Strut Mount Nut, RIGHT

$1.32 $0.99
18 90178-08010 90178-08010 / Strut Mount Nut

Strut Mount Nut, LEFT

$1.32 $0.99
19 90178-14019 90178-14019 / Top Nut

Top Nut, RIGHT

$1.81 $1.36
19 90178-14019 90178-14019 / Top Nut

Top Nut, LEFT

$1.81 $1.36
20 48684-74010 48684-74010 / Cap

Dust Cover, LEFT

$14.51 $10.88
20 48684-74010 48684-74010 / Cap

Dust Cover, RIGHT

$14.51 $10.88
21 48811-74020 48811-74020 / Stabilizer Bar

$108.92 $81.69
22 48815-74030 48815-74030 / Stabilizer Bar Bushing

$11.41 $8.56
23 48824-74010 48824-74010 / Stabilizer Bar Bracket

$18.91 $14.18
24 48820-74010 48820-74010 / Stabilizer Link

Stabilizer Link, LEFT

$80.71 $60.53
24 48820-74010 48820-74010 / Stabilizer Link

Stabilizer Link, RIGHT

$80.71 $60.53
25 90080-17224 90080-17224 / Stabilizer Link Nut

Stabilizer Link Nut, LEFT

$2.64 $1.98
25 90080-17224 90080-17224 / Stabilizer Link Nut

Stabilizer Link Nut, RIGHT

$2.64 $1.98
