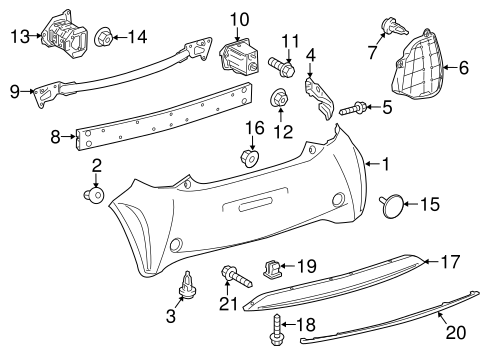

BODY/BUMPER & COMPONENTS - REAR for 2012 Scion iQ

Select BUMPER & COMPONENTS - REAR Part

2012 Scion iQ

Change vehicle

No. Part # Part # / Description List Price Price
1 52159-74901 52159-74901 / Bumper Cover

- -
2 52461-52020 52461-52020 / Bumper Cover Cushion

$14.85 $11.14
3 52161-02020 52161-02020 / Bumper Cover Clip

$2.47 $1.85
4 52575-74012 52575-74012 / Side Retainer

Side Retainer, RIGHT

$44.65 $33.49
4 52576-74012 52576-74012 / Side Retainer

Side Retainer, LEFT

$44.65 $33.49
5 90159-A0034 90159-A0034 / Side Support Retainer Screw

Side Retainer Screw

$0.83 $0.62
6 52591-74010 52591-74010 / Side Seal

Side Seal, RIGHT

$54.65 $40.99
6 52592-74010 52592-74010 / Side Seal

Side Seal, LEFT

$54.65 $40.99
7 52161-02020 52161-02020 / Bumper Cover Clip

Side Seal Clip, RIGHT

$2.47 $1.85
7 52161-02020 52161-02020 / Bumper Cover Clip

Side Seal Clip, LEFT

$2.47 $1.85
8 52105-74020 52105-74020 / Impact Bar

$177.42 $133.07
9 52043-74020 52043-74020 / Reinforce Bar

$69.70 $52.28
10 52023-74030 52023-74030 / Reinforced Bracket

Reinforced Bracket, RIGHT

$65.82 $49.37
10 52024-74020 52024-74020 / Reinforced Bracket

Reinforced Bracket, LEFT

$65.82 $49.37
11 90119-08C64 90119-08C64 / Mount Arm Bolt

Reinforced Bracket Bolt, RIGHT

$1.15 $0.86
11 90119-08C64 90119-08C64 / Mount Arm Bolt

Reinforced Bracket Bolt, LEFT

$1.15 $0.86
12 90176-08057 90176-08057 / Impact Bar Nut

Reinforced Bracket Nut, RIGHT

$1.18 $0.89
12 90176-08057 90176-08057 / Impact Bar Nut

Reinforced Bracket Nut, LEFT

$1.18 $0.89
13 52016-74010 52016-74010 / Arm

Arm, LEFT

$67.23 $50.42
13 52015-74030 52015-74030 / Arm

Arm, RIGHT

$67.23 $50.42
14 90176-08057 90176-08057 / Impact Bar Nut

Arm Nut, LEFT

$1.18 $0.89
14 90176-08057 90176-08057 / Impact Bar Nut

Arm Nut, RIGHT

$1.18 $0.89
15 81910-12100 81910-12100 / Reflector

Reflector, RIGHT

$22.53 $16.90
15 81910-12100 81910-12100 / Reflector

Reflector, LEFT

$22.53 $16.90
16 90080-17189 90080-17189 / Combo Lamp Assembly Nut

Reflector Nut, LEFT

$1.93 $1.45
16 90080-17189 90080-17189 / Combo Lamp Assembly Nut

Reflector Nut, RIGHT

$1.93 $1.45
17 52453-74010 52453-74010 / Guard

$105.71 $79.28
18 90159-60603 90159-60603 / Mud Guard Screw

Guard Screw

$0.95 $0.71
19 90189-05144 90189-05144 / Guard Fastener

$1.03 $0.77
20 52751-74010 52751-74010 / Molding

$40.71 $30.53
21 90080-16031 90080-16031 / Grille Screw

Molding Screw

$1.03 $0.77
No. Part # Part # / Description List Price Price
N/A 52461-74020 52461-74020 / Bumper Cover Pad

$9.83 $7.37
