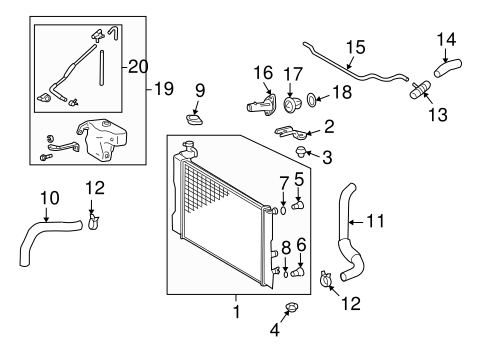

COOLING SYSTEM/RADIATOR & COMPONENTS for 2011 Toyota Matrix

Select RADIATOR & COMPONENTS Part

2011 Toyota Matrix

Change vehicle

No. Part # Part # / Description List Price Price
1 16410-0H251 16410-0H251 / Radiator Assembly

2.4 LITER, MANUAL TRANS

$338.28 $253.71
1 16410-0H261 16410-0H261 / Radiator Assembly

2.4 LITER, AUTO TRANS

$378.52 $283.89
2 16533-0T020 16533-0T020 / Radiator Assembly Upper Bracket

Radiator Assembly Upper Bracket, LEFT

2.4 LITER

$28.67 $21.50
2 16533-0T020 16533-0T020 / Radiator Assembly Upper Bracket

Radiator Assembly Upper Bracket, RIGHT

2.4 LITER

$28.67 $21.50
3 16523-0T020 16523-0T020 / Radiator Assembly Upper Insulator

Radiator Assembly Upper Insulator, LEFT

2.4 LITER

$6.75 $5.06
3 16523-0T020 16523-0T020 / Radiator Assembly Upper Insulator

Radiator Assembly Upper Insulator, RIGHT

2.4 LITER

$6.75 $5.06
4 16535-0H100 16535-0H100 / Radiator Assembly Lower Bracket

Radiator Assembly Lower Bracket, LEFT

2.4 LITER

$12.73 $9.55
4 16535-0H100 16535-0H100 / Radiator Assembly Lower Bracket

Radiator Assembly Lower Bracket, RIGHT

2.4 LITER

$12.73 $9.55
5 16417-28530 16417-28530 / Drain Plug

2.4 LITER, UPPER

$8.13 $6.10
6 16417-21280 16417-21280 / Drain Plug

2.4 LITER, LOWER

$5.29 $3.97
7 16418-20290 16418-20290 / Drain Plug Upper Seal

Drain Plug Seal

2.4 LITER, UPPER

$2.50 $1.88
8 16492-21050 16492-21050 / Drain Plug O-Ring

Drain Plug Seal

2.4 LITER, LOWER

$3.00 $2.25
9 16401-20353 16401-20353 / Cap

Radiator Cap

2.4 LITER

$14.82 $11.12
10 16572-0H150 16572-0H150 / Radiator Hose

Lower Hose, RIGHT

2.4 LITER

$19.58 $14.69
11 16573-0H020 16573-0H020 / Lower Hose

Lower Hose, LEFT

2.4 LITER

$13.43 $10.07
12 96136-44301 96136-44301 / Hose Clamp

Lower Hose Clamp

2.4 LITER

$10.34 $7.76
13 16577-0H010 16577-0H010 / Connector Pipe

2.4 LITER

$15.08 $11.31
14 16571-0H180 16571-0H180 / Upper Hose

2.4 LITER

$9.25 $6.94
15 16261-0H100 16261-0H100 / By-Pass Hose

2.4 LITER

$15.19 $11.39
16 16321-0H011 16321-0H011 / Thermostat Hsng

Water Inlet

2.4 LITER

$27.67 $20.75
17 90916-03136 90916-03136 / Thermostat

2.4 LITER

$24.02 $18.02
18 16325-0T030 16325-0T030 / Thermostat Gasket

Thermostat Seal

2.4 LITER

$6.01 $4.51
19 16470-0T040 16470-0T040 / Reservoir Tank

Reservoir Assembly

2.4 LITER

$80.64 $60.48
20 16405-0T020 16405-0T020 / Reservoir Cap

Cap Assembly

2.4 LITER

$23.17 $17.38
COOLING SYSTEM/RADIATOR & COMPONENTS for 2011 Toyota Matrix #2
No. Part # Part # / Description List Price Price
1 16410-0H251 16410-0H251 / Radiator Assembly

Radiator

MATRIX; MANUAL TRANS

$338.28 $253.71
1 16410-0H261 16410-0H261 / Radiator Assembly

Radiator

MATRIX; AUTO TRANS

$378.52 $283.89
2 16572-0H150 16572-0H150 / Radiator Hose

Upper Hose

MATRIX

$19.58 $14.69
3 16573-0H020 16573-0H020 / Lower Hose

MATRIX

$13.43 $10.07
4 16321-0H011 16321-0H011 / Thermostat Hsng

Water Inlet

MATRIX

$27.67 $20.75
5 90916-03136 90916-03136 / Thermostat

MATRIX

$24.02 $18.02
6 16325-0T030 16325-0T030 / Thermostat Gasket

MATRIX

$6.01 $4.51
7 16470-0T040 16470-0T040 / Reservoir Tank

Reservoir

MATRIX

$80.64 $60.48
8 16405-0T020 16405-0T020 / Reservoir Cap

MATRIX

$23.17 $17.38
10 16361-0H250 16361-0H250 / Fan Blade

MATRIX; LEFT

$57.97 $43.48
10 16361-0H260 16361-0H260 / Fan Blade

MATRIX; RIGHT

$80.48 $60.36
11 16712-0H010 16712-0H010 / Fan Shroud

MATRIX; LOWER

$36.06 $27.05
11 16711-0H180 16711-0H180 / Fan Shroud

MATRIX; UPPER

$93.84 $70.38
13 16363-0H200 16363-0H200 / Fan Motor

MATRIX; LEFT

$187.54 $140.66
13 16363-0H210 16363-0H210 / Fan Motor

MATRIX; RIGHT

$187.54 $140.66
