HVAC/CONDENSER, COMPRESSOR & LINES for 2011 Toyota Highlander

Select CONDENSER, COMPRESSOR & LINES Part

2011 Toyota Highlander

Change vehicle

No. Part # Part # / Description List Price Price
1 87050-0E070 87050-0E070 / Evaporator Assembly

US BUILT, W/REAR AC, W/O AUTO AC

$965.58 $708.21
1 87050-0E080 87050-0E080 / Evaporator Assembly

US BUILT, W/REAR AC, W/AUTO AC

$1,138.89 $835.32
1 87050-0E090 87050-0E090 / Evaporator Assembly

US BUILT, W/O REAR AC

$965.58 $708.21
2 88539-0E010 88539-0E010 / Drain Hose

US BUILT

$36.83 $27.01
3 90480-26030 90480-26030 / Drain Hose Grommet

US BUILT

$3.22 $2.35
4 87107-07030 87107-07030 / Heater Core

HIGHLANDER

$395.44 $290.04
5 87124-07030 87124-07030 / Heater Core Clamp

US BUILT

$22.93 $16.81
6 90480-A0004 90480-A0004 / Heater Core Grommet

US BUILT

$4.97 $3.65
7 82212-06111 82212-06111 / Wire Harness

US BUILT, W/O AUTO AC

$82.85 $60.77
7 82212-06121 82212-06121 / Wire Harness

US BUILT, W/AUTO AC

$183.11 $134.31
8 87710-0E020 87710-0E020 / Heater Assembly

US BUILT

$406.76 $298.34
9 88501-48311 88501-48311 / Evaporator Core

HIGHLANDER

$312.68 $229.34
10 90069-08009 90069-08009 / Evaporator Core O-Ring

US BUILT, #1

$4.21 $3.09
11 90069-08007 90069-08007 / Evaporator Core O-Ring

US BUILT, #2

$0.63 $0.46
12 88515-07030 88515-07030 / Expansion Valve

HIGHLANDER

$91.32 $66.98
13 88625-41030 88625-41030 / Thermistor Probe

Thermistor

US BUILT

$14.73 $10.81
14 88899-06100 88899-06100 / Evaporator Core Base

Lower Cover

US BUILT

$17.15 $12.58
15 87106-07120 87106-07120 / Actuator

Servo

US BUILT, AIR MIX

$170.12 $124.78
16 87106-0E140 87106-0E140 / Servo

US BUILT, MODE, W/REAR AC

$341.31 $250.33
16 87106-06250 87106-06250 / Servo

US BUILT, MODE, W/O REAR AC

$341.31 $250.33

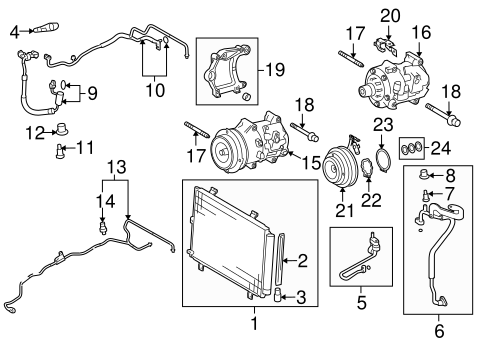

No. Part # Part # / Description List Price Price
1 88460-0E051 88460-0E051 / Condenser Assembly

US BUILT

$389.53 $285.70
1 88460-0E051 88460-0E051 / Condenser Assembly

Condenser

HIGHLANDER

$389.53 $285.70
2 88474-17010 88474-17010 / Dehydrator

US BUILT

$95.87 $70.32
2 88474-17010 88474-17010 / Dehydrator

Drier

HIGHLANDER

$95.87 $70.32
3 88482-08010 88482-08010 / Dehydrator Cap

Cap

US BUILT

$1.78 $1.31
4 88790-22131 88790-22131 / Ambient Temp Sensor

Thermistor

US BUILT

$16.31 $11.97
4 88790-22131 88790-22131 / Ambient Temp Sensor

HIGHLANDER

$16.31 $11.97
5 88705-0E060 88705-0E060 / Discharge Pipe

US BUILT

$85.45 $62.67
6 88703-0E070 88703-0E070 / Discharge Hose

US BUILT, 2.7 LITER

$162.30 $119.04
7 88374-30010 88374-30010 / Valve

Discharge Hose Valve

US BUILT

$1.97 $1.45
8 88375-02020 88375-02020 / Discharge Hose Cap

US BUILT, 2.7 LITER

$11.81 $8.66
9 88704-0E070 88704-0E070 / Suction Hose

US BUILT, 2.7 LITER

$155.69 $114.19
10 88717-0E130 88717-0E130 / Suction Pipe

US BUILT, W/O REAR AC

$111.73 $81.95
10 88717-0E140 88717-0E140 / Suction Pipe

US BUILT, W/REAR AC

$288.05 $211.28
11 88374-30010 88374-30010 / Valve

Suction Pipe Valve

US BUILT

$1.97 $1.45
12 88375-02070 88375-02070 / Suction Hose Cap

Suction Pipe Cap

US BUILT

$0.34 $0.26
13 88716-0E190 88716-0E190 / Liquid Line

US BUILT, W/REAR AC

$160.59 $117.78
13 88716-0E180 88716-0E180 / Liquid Line

US BUILT, W/O REAR AC

- -
14 88719-33020 88719-33020 / Pressure Sensor

HIGHLANDER

$223.88 $164.21
15 88310-0E090 88310-0E090 / Compressor Assembly

US BUILT, 2.7 LITER, W/REAR AC

$847.02 $621.25
15 88310-0T020 88310-0T020 / Compressor Assembly

US BUILT, 2.7 LITER, W/O REAR AC

$810.91 $594.76
15 88310-0T020 88310-0T020 / Compressor Assembly

Compressor

HIGHLANDER; 2.7L; W/O REAR AC

$810.91 $594.76
15 88310-0E090 88310-0E090 / Compressor Assembly

Compressor

HIGHLANDER; 2.7L; W/REAR AC

$847.02 $621.25
17 88446-08070 88446-08070 / Compressor Assembly Stud

US BUILT

$3.95 $2.89
18 90119-08C78 90119-08C78 / Compressor Assembly Mount Bolt

US BUILT

$1.64 $1.20
20 88688-48250 88688-48250 / Bracket

US BUILT, 3.5 LITER

$7.68 $5.64
22 90099-07063 90099-07063 / Clutch & Pulley Retainer Ring

US BUILT, 3.5 LITER

$1.26 $0.93
23 90099-07114 90099-07114 / Clutch & Pulley Snap Ring

US BUILT, 3.5 LITER

$1.05 $0.77
24 88335-14020 88335-14020 / Clutch & Pulley Repair Kit

Clutch & Pulley Washer

US BUILT, 3.5 LITER

$1.34 $0.99
