ELECTRICAL/BULBS - CHASSIS for 2011 Toyota Camry

Select BULBS - CHASSIS Part

2011 Toyota Camry

Change vehicle

No. Part # Part # / Description List Price Price
1 81580-06230 81580-06230 / Backup Lamp Assembly

Backup Lamp Assembly, RIGHT

US BUILT, 2010-11

$123.20 $92.40
1 81590-06230 81590-06230 / Backup Lamp Assembly

Backup Lamp Assembly, LEFT

US BUILT, 2010-11

$123.20 $92.40
2 81496-33010 81496-33010 / Backup Lamp Assembly Guide

Backup Lamp Assembly Guide, LEFT

US BUILT, 2010-11

$0.92 $0.69
2 81496-33010 81496-33010 / Backup Lamp Assembly Guide

Backup Lamp Assembly Guide, RIGHT

US BUILT, 2010-11

$0.92 $0.69
3 90178-A0005 90178-A0005 / Combo Lamp Assembly Nut

Backup Lamp Assembly Nut, LEFT

US BUILT, 2010-11, #2

$1.18 $0.89
3 90080-17188 90080-17188 / Backup Lamp Assembly Nut

Backup Lamp Assembly Nut, LEFT

US BUILT, 2010-11, #1

$1.35 $1.01
3 90178-A0005 90178-A0005 / Combo Lamp Assembly Nut

Backup Lamp Assembly Nut, RIGHT

US BUILT, 2010-11, #2

$1.18 $0.89
3 90080-17188 90080-17188 / Backup Lamp Assembly Nut

Backup Lamp Assembly Nut, RIGHT

US BUILT, 2010-11, #1

$1.35 $1.01
4 81584-06230 81584-06230 / Backup Lamp Assembly Gasket

Backup Lamp Assembly Gasket, RIGHT

US BUILT, 2010-11

$15.46 $11.60
4 81594-06230 81594-06230 / Backup Lamp Assembly Gasket

Backup Lamp Assembly Gasket, LEFT

US BUILT, 2010-11

$15.46 $11.60
5 90981-11059 90981-11059 / Bulb

Backup Lamp Bulb, RIGHT

US BUILT, 2010-11

$4.71 $3.53
5 90981-11059 90981-11059 / Bulb

Exterior Bulbs

CAMRY; REAR TAIL LAMPS; REVERSE LIGHT

$4.71 $3.53
6 81585-33140 81585-33140 / Socket & Wire

Socket & Wire, LEFT

US BUILT, 2010-11

$29.71 $22.28
6 81585-33140 81585-33140 / Socket & Wire

Socket & Wire, RIGHT

US BUILT, 2010-11

$29.71 $22.28

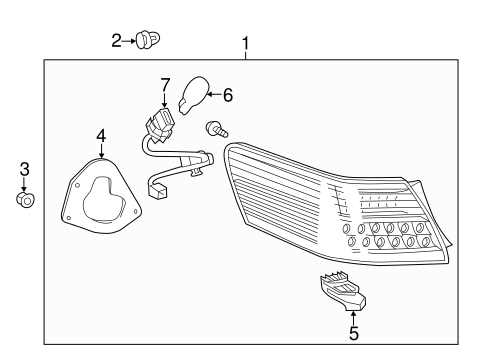

No. Part # Part # / Description List Price Price
1 81550-06340 81550-06340 / Combo Lamp Assembly

Combo Lamp Assembly, RIGHT

US BUILT, 2010-11

$228.80 $171.60
1 81560-06340 81560-06340 / Combo Lamp Assembly

Combo Lamp Assembly, LEFT

US BUILT, 2010-11

$228.80 $171.60
2 81496-60010 81496-60010 / Tail Lamp Assembly Guide

Combo Lamp Assembly Guide, RIGHT

US BUILT, 2010-11

$1.84 $1.38
2 81496-60010 81496-60010 / Tail Lamp Assembly Guide

Combo Lamp Assembly Guide, LEFT

US BUILT, 2010-11

$1.84 $1.38
3 90178-A0005 90178-A0005 / Combo Lamp Assembly Nut

Combo Lamp Assembly Nut, RIGHT

US BUILT, 2010-11

$1.18 $0.89
3 90178-A0005 90178-A0005 / Combo Lamp Assembly Nut

Combo Lamp Assembly Nut, LEFT

US BUILT, 2010-11

$1.18 $0.89
4 81562-06340 81562-06340 / Combo Lamp Assembly Gasket

Combo Lamp Assembly Gasket, LEFT

US BUILT, 2010-11

$15.46 $11.60
4 81552-06340 81552-06340 / Combo Lamp Assembly Gasket

Combo Lamp Assembly Gasket, RIGHT

US BUILT, 2010-11

$15.46 $11.60
5 52561-06040 52561-06040 / Combo Lamp Assembly Retainer

Combo Lamp Assembly Retainer, RIGHT

US BUILT, 2010-11

$12.44 $9.33
5 52561-06040 52561-06040 / Combo Lamp Assembly Retainer

Combo Lamp Assembly Retainer, LEFT

US BUILT, 2010-11

$12.44 $9.33
6 90981-13043 90981-13043 / Bulb

Tail Lamp Bulb, RIGHT

US BUILT, 2010-11

$5.06 $3.80
6 90981-13043 90981-13043 / Bulb

Exterior Bulbs

CAMRY; REAR TAIL LAMPS; TURN SIGNAL

$5.06 $3.80
7 81565-06340 81565-06340 / Socket & Wire

Socket & Wire, LEFT

US BUILT, 2010-11

$26.03 $19.52
7 81555-06340 81555-06340 / Socket & Wire

Socket & Wire, RIGHT

US BUILT, 2010-11

$26.03 $19.52

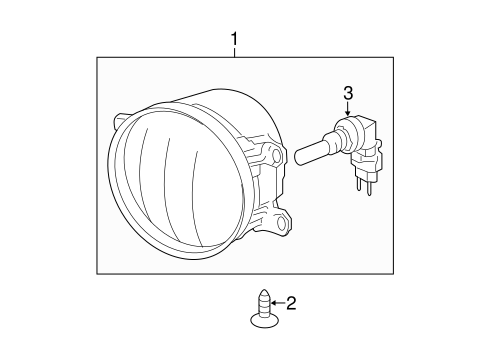

No. Part # Part # / Description List Price Price
1 81210-0D042 81210-0D042 / Fog Lamp Assembly

Fog Lamp Assembly, RIGHT

2010-11, JAPAN BUILT

$175.73 $131.80
1 81220-0D042 81220-0D042 / Fog Lamp Assembly

Fog Lamp Assembly, LEFT

2010-11, JAPAN BUILT

$175.73 $131.80
2 90167-A0018 90167-A0018 / Fog Lamp Assembly Screw

Fog Lamp Assembly Screw, LEFT

2010-11, US BUILT

$0.83 $0.62
2 90167-A0018 90167-A0018 / Fog Lamp Assembly Screw

Fog Lamp Assembly Screw, RIGHT

2010-11, US BUILT

$0.83 $0.62
2 93567-A5014 93567-A5014 / Fog Lamp Assembly Screw

Fog Lamp Assembly Screw, RIGHT

2010-11, JAPAN BUILT

$0.98 $0.74
2 93567-A5014 93567-A5014 / Fog Lamp Assembly Screw

Fog Lamp Assembly Screw, LEFT

2010-11, JAPAN BUILT

$0.98 $0.74
3 90981-13075 90981-13075 / Fog Lamp Bulb

Fog Lamp Bulb, RIGHT

2010-11, JAPAN BUILT, PHILIPS

$21.72 $16.29
3 90981-13081 90981-13081 / Fog Lamp Bulb

Fog Lamp Bulb, LEFT

2010-11, JAPAN BUILT, OSRAM

$23.65 $17.74
3 90981-AD006 90981-AD006 / Fog Lamp Bulb

Fog Lamp Bulb, LEFT

2010-11, US BUILT

$23.65 $17.74
3 90981-13081 90981-13081 / Fog Lamp Bulb

Fog Lamp Bulb, RIGHT

2010-11, JAPAN BUILT, OSRAM

$23.65 $17.74
3 90981-AD006 90981-AD006 / Fog Lamp Bulb

Fog Lamp Bulb, RIGHT

2010-11, US BUILT

$23.65 $17.74
3 90981-13075 90981-13075 / Fog Lamp Bulb

Fog Lamp Bulb, LEFT

2010-11, JAPAN BUILT, PHILIPS

$21.72 $16.29
3 90981-AD006 90981-AD006 / Fog Lamp Bulb

CAMRY; USA BUILT

$23.65 $17.74

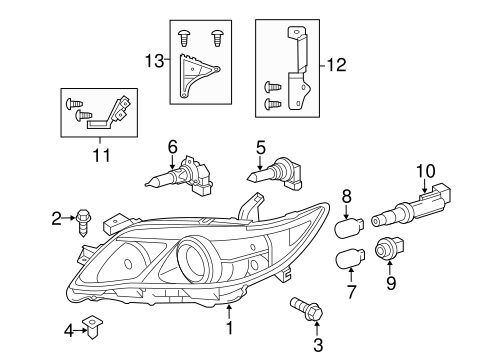

No. Part # Part # / Description List Price Price
1 81130-33700 81130-33700 / Composite Headlamp

Headlamp, RIGHT

2010-11, JAPAN BUILT

$353.69 $265.27
1 81170-33700 81170-33700 / Composite Headlamp

Headlamp, LEFT

2010-11, JAPAN BUILT

$353.69 $265.27
2 90159-A0029 90159-A0029 / Headlamp Assembly Screw

Headlamp Screw, LEFT

2010-11, JAPAN BUILT

$0.83 $0.62
2 90159-A0029 90159-A0029 / Headlamp Assembly Screw

Headlamp Screw, RIGHT

2010-11, JAPAN BUILT

$0.83 $0.62
3 90105-06298 90105-06298 / Headlamp Assembly Lower Bolt

Headlamp Bolt, LEFT

2010-11, JAPAN BUILT

$0.83 $0.62
3 90105-06298 90105-06298 / Headlamp Assembly Lower Bolt

Headlamp Bolt, RIGHT

2010-11, JAPAN BUILT

$0.83 $0.62
4 90189-05142 90189-05142 / Headlamp Assembly Grommet

Headlamp Grommet, RIGHT

2010-11, JAPAN BUILT

$1.12 $0.84
4 90189-05142 90189-05142 / Headlamp Assembly Grommet

Headlamp Grommet, LEFT

2010-11, JAPAN BUILT

$1.12 $0.84
5 90981-13085 90981-13085 / Low Beam Bulb

Low Beam Bulb, RIGHT

2010-11, JAPAN BUILT

$23.59 $17.69
5 90981-13085 90981-13085 / Low Beam Bulb

Low Beam Bulb, LEFT

2010-11, JAPAN BUILT

$23.59 $17.69
6 90981-13046 90981-13046 / High Beam Bulb

High Beam Bulb, RIGHT

2010-11, JAPAN BUILT

$23.73 $17.80
6 90981-13046 90981-13046 / High Beam Bulb

Headlamp Bulb

CAMRY; HIGH BEAM

$23.73 $17.80
10 81125-33700 81125-33700 / Socket

Socket, RIGHT

2010-11, JAPAN BUILT, MARKER LAMP BULB

$19.68 $14.76
11 81197-33010 81197-33010 / Repair Bracket

Repair Bracket, RIGHT

2010-11, JAPAN BUILT, LOWER

$10.03 $7.52
12 81193-33060 81193-33060 / Repair Bracket

Repair Bracket, RIGHT

2010-11, JAPAN BUILT, UPPER, OUTER

$25.89 $19.42
No. Part # Part # / Description List Price Price
1 81110-06500 81110-06500 / Composite Headlamp

Headlamp Assembly, RIGHT

2010-11, US BUILT, BASE, LE, XLE

$363.51 $272.63
1 81150-06500 81150-06500 / Composite Headlamp

Headlamp Assembly, LEFT

2010-11, US BUILT, BASE, LE, XLE

$363.51 $272.63
1 81110-06500 81110-06500 / Composite Headlamp

CAMRY; RIGHT; USA BUILT; LE, XLE

$363.51 $272.63
1 81150-06500 81150-06500 / Composite Headlamp

CAMRY; LEFT; USA BUILT; LE, XLE

$363.51 $272.63
2 90159-A0006 90159-A0006 / Combo Lamp Assembly Screw

Headlamp Assembly Screw, RIGHT

2010-11, US BUILT

$0.92 $0.69
2 90159-A0006 90159-A0006 / Combo Lamp Assembly Screw

Headlamp Assembly Screw, LEFT

2010-11, US BUILT

$0.92 $0.69
3 90105-A0076 90105-A0076 / Headlamp Assembly Bolt

Headlamp Assembly Bolt, LEFT

2010-11, US BUILT

$0.83 $0.62
3 90105-A0076 90105-A0076 / Headlamp Assembly Bolt

Headlamp Assembly Bolt, RIGHT

2010-11, US BUILT

$0.83 $0.62
4 90189-05142 90189-05142 / Headlamp Assembly Grommet

Headlamp Assembly Grommet, LEFT

2010-11, US BUILT

$1.12 $0.84
4 90189-05142 90189-05142 / Headlamp Assembly Grommet

Headlamp Assembly Grommet, RIGHT

2010-11, US BUILT

$1.12 $0.84
6 90981-13075 90981-13075 / Fog Lamp Bulb

Low Beam Bulb, LEFT

2010-11, US BUILT

$21.72 $16.29
6 90981-13075 90981-13075 / Fog Lamp Bulb

Low Beam Bulb, RIGHT

2010-11, US BUILT

$21.72 $16.29
6 90981-13075 90981-13075 / Fog Lamp Bulb

Headlamp Bulb

CAMRY; LOW BEAM

$21.72 $16.29
7 90981-13046 90981-13046 / High Beam Bulb

High Beam Bulb, LEFT

2010-11, US BUILT

$23.73 $17.80
8 90981-15021 90981-15021 / Bulb

Signal Bulb, LEFT

2010-11, US BUILT

$4.74 $3.56
8 90981-15021 90981-15021 / Bulb

Signal Bulb, RIGHT

2010-11, US BUILT

$4.74 $3.56
8 90981-15021 90981-15021 / Bulb

Exterior Bulbs

CAMRY; FRONT TURN SIGNAL

$4.74 $3.56
9 90981-15012 90981-15012 / Bulb

Marker Lamp Bulb, LEFT

2010-11, US BUILT

$7.50 $5.63
9 90981-15012 90981-15012 / Bulb

Marker Lamp Bulb, RIGHT

2010-11, US BUILT

$7.50 $5.63
10 90075-60028 90075-60028 / Socket

Socket, LEFT

2010-11, US BUILT, SIGNAL BULB

$9.86 $7.40
10 90075-60028 90075-60028 / Socket

Socket, RIGHT

2010-11, US BUILT, SIGNAL BULB

$9.86 $7.40
11 81125-33700 81125-33700 / Socket

Socket, LEFT

2010-11, US BUILT, MARKER LAMP BULB

$19.68 $14.76
12 81198-33010 81198-33010 / Repair Bracket

Repair Bracket, LEFT

2010-11, US BUILT, LOWER

$10.03 $7.52
13 81194-33060 81194-33060 / Repair Bracket

Repair Bracket, LEFT

2010-11, US BUILT, UPPER, OUTER

$25.89 $19.42
14 81195-33020 81195-33020 / Repair Bracket

Repair Bracket, RIGHT

2010-11, US BUILT, UPPER, INNER

$11.29 $8.47
14 81196-33020 81196-33020 / Repair Bracket

Repair Bracket, LEFT

2010-11, US BUILT, UPPER, INNER

$11.29 $8.47
