REAR SUSPENSION/REAR SUSPENSION for 2011 Scion tC

Select REAR SUSPENSION Part

2011 Scion tC

Change vehicle

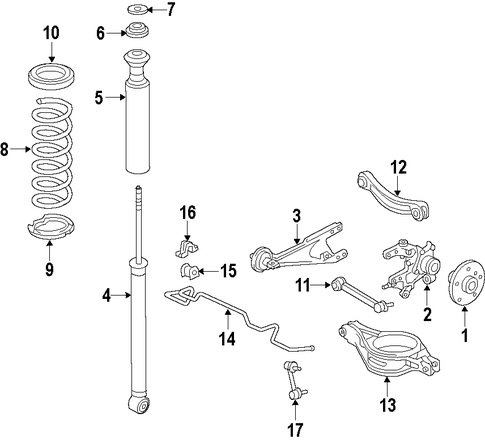

REAR SUSPENSION/REAR SUSPENSION for 2011 Scion tC #1
No. Part # Part # / Description List Price Price
N/A 51206-12161 51206-12161 / Cross-Member

TC

$1,448.53 $1,086.40
1 42450-0R010 42450-0R010 / Hub Assembly

Hub & Bearing Assembly

TC

$503.56 $377.67
2 42305-21050 42305-21050 / Knuckle

TC; LEFT

$269.28 $201.96
2 42304-21050 42304-21050 / Knuckle

TC; RIGHT

$269.28 $201.96
3 48760-12010 48760-12010 / Trailing Arm

TC; RIGHT

$164.46 $123.35
3 48780-12140 48780-12140 / Trailing Arm

TC; LEFT

$164.46 $123.35
4 48530-80678 48530-80678 / Shock Absorber

TC

$47.22 $35.42
5 48341-75010 48341-75010 / Bumper

TC

$47.87 $35.90
6 48755-12100 48755-12100 / Upper Support

Support

TC

$67.61 $50.71
7 90948-02159 90948-02159 / Upper Support Washer

Retainer

TC

$7.70 $5.78
8 48231-21241 48231-21241 / Coil Spring

TC

$75.03 $56.27
9 48258-12050 48258-12050 / Spring Seat

Lower Spring Insulator

TC

$7.38 $5.54
10 48257-75010 48257-75010 / Spring Seat

Upper Spring Insulator

TC; FROM 10/10

$12.07 $9.05
10 48257-52010 48257-52010 / Upper Insulator

Upper Spring Insulator

TC; TO 9/10

$8.56 $6.42
11 48710-72010 48710-72010 / Track Bar

Tie Rod

TC

$142.05 $106.54
12 48770-12010 48770-12010 / Upper Control Arm

TC

$114.90 $86.18
13 48730-75010 48730-75010 / Lower Control Arm

TC; RIGHT; TO 12/11

$210.98 $158.24
13 48740-75010 48740-75010 / Lower Control Arm

TC; LEFT; TO 12/11

$210.98 $158.24
14 48812-12380 48812-12380 / Stabilizer Bar

TC

$95.62 $71.72
15 48818-12280 48818-12280 / Stabilizer Bar Bushing

Bushings

TC

$18.42 $13.82
16 48832-12050 48832-12050 / Stabilizer Bar Clamp

Bushing Bracket

TC

$16.89 $12.67
17 48830-12070 48830-12070 / Stabilizer Link

Link

TC

$98.44 $73.83
No. Part # Part # / Description List Price Price
1 51206-12161 51206-12161 / Cross-Member

Suspension Cross-member

$1,448.53 $1,086.40
2 90119-14098 90119-14098 / Suspension Cross-Member Rear Bolt

Suspension Cross-member Mount Bolt, LEFT

$5.89 $4.42
2 90119-14098 90119-14098 / Suspension Cross-Member Rear Bolt

Suspension Cross-member Mount Bolt, RIGHT

$5.89 $4.42
3 52203-12010 52203-12010 / Stopper

Stopper, RIGHT

$77.32 $57.99
3 52203-12010 52203-12010 / Stopper

Stopper, LEFT

$77.32 $57.99
4 90179-10180 90179-10180 / Stopper Nut

Stopper Nut, LEFT

#1

$1.35 $1.01
4 90179-10180 90179-10180 / Stopper Nut

Stopper Nut, RIGHT

#1

$1.35 $1.01
5 90178-14006 90178-14006 / Stopper Nut

Stopper Nut, RIGHT

#2

$1.90 $1.43
5 90178-14006 90178-14006 / Stopper Nut

Stopper Nut, LEFT

#2

$1.90 $1.43
6 52295-12051 52295-12051 / Rear Brace

Rear Brace, RIGHT

$36.06 $27.05
6 52295-12051 52295-12051 / Rear Brace

Rear Brace, LEFT

$36.06 $27.05
7 90119-A0229 90119-A0229 / Rear Brace Bolt

Rear Brace Bolt, LEFT

$1.03 $0.77
7 90119-A0229 90119-A0229 / Rear Brace Bolt

Rear Brace Bolt, RIGHT

$1.03 $0.77
8 42304-21050 42304-21050 / Knuckle

Knuckle, RIGHT

$269.28 $201.96
8 42305-21050 42305-21050 / Knuckle

Knuckle, LEFT

$269.28 $201.96
9 48770-12010 48770-12010 / Upper Control Arm

Upper Control Arm, LEFT

$114.90 $86.18
9 48770-12010 48770-12010 / Upper Control Arm

Upper Control Arm, RIGHT

$114.90 $86.18
10 90119-12397 90119-12397 / Upper Control Arm Bolt

Upper Control Arm Bolt, RIGHT

#1

$4.97 $3.73
10 90119-12397 90119-12397 / Upper Control Arm Bolt

Upper Control Arm Bolt, LEFT

#1

$4.97 $3.73
11 91672-L1270 91672-L1270 / Upper Control Arm Bolt

Upper Control Arm Bolt, RIGHT

#2

$3.88 $2.91
11 91672-L1270 91672-L1270 / Upper Control Arm Bolt

Upper Control Arm Bolt, LEFT

#2

$3.88 $2.91
12 90080-17221 90080-17221 / Gear Assembly Nut

Upper Control Arm Nut, LEFT

$2.93 $2.20
12 90080-17221 90080-17221 / Gear Assembly Nut

Upper Control Arm Nut, RIGHT

$2.93 $2.20
13 48780-12140 48780-12140 / Trailing Arm

Trailing Arm, LEFT

$164.46 $123.35
13 48760-12010 48760-12010 / Trailing Arm

Trailing Arm, RIGHT

$164.46 $123.35
14 91552-L1650 91552-L1650 / Trailing Arm Bolt

Trailing Arm Bolt, LEFT

$4.97 $3.73
14 91552-L1650 91552-L1650 / Trailing Arm Bolt

Trailing Arm Bolt, RIGHT

$4.97 $3.73
15 48710-72010 48710-72010 / Track Bar

Track Bar, RIGHT

$142.05 $106.54
15 48710-72010 48710-72010 / Track Bar

Track Bar, LEFT

$142.05 $106.54
16 48730-75010 48730-75010 / Lower Control Arm

Lower Control Arm, RIGHT

$210.98 $158.24
16 48740-75010 48740-75010 / Lower Control Arm

Lower Control Arm, LEFT

$210.98 $158.24
17 90119-A0327 90119-A0327 / Lower Control Arm Bolt

Lower Control Arm Bolt, RIGHT

$3.82 $2.87
17 90119-A0327 90119-A0327 / Lower Control Arm Bolt

Lower Control Arm Bolt, LEFT

$3.82 $2.87
18 90080-17221 90080-17221 / Gear Assembly Nut

Lower Control Arm Nut, LEFT

$2.93 $2.20
18 90080-17221 90080-17221 / Gear Assembly Nut

Lower Control Arm Nut, RIGHT

$2.93 $2.20
No. Part # Part # / Description List Price Price
N/A 90116-14014 90116-14014 / Suspension Cross-Member Stud

Suspension Cross-member Stud, LEFT

$6.90 $5.18
No. Part # Part # / Description List Price Price
N/A 90116-14014 90116-14014 / Suspension Cross-Member Stud

Suspension Cross-member Stud, RIGHT

$6.90 $5.18
