ENGINE/ENGINE PARTS for 2010 Toyota Sienna

Select ENGINE PARTS Part

2010 Toyota Sienna

Change vehicle

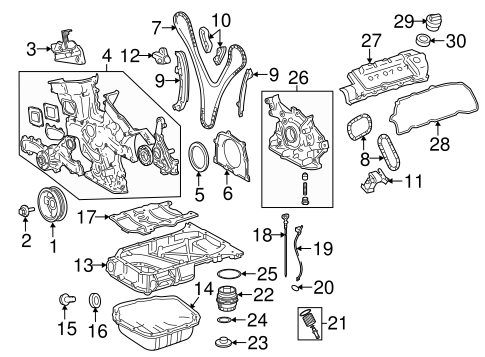

No. Part # Part # / Description List Price Price
1 13470-31030 13470-31030 / Crankshaft Pulley

3.5 LITER

$298.14 $218.67
2 90119-16004 90119-16004 / Crankshaft Pulley Bolt

3.5 LITER

$7.93 $5.82
3 11322-31021 11322-31021 / Upper Timing Cover

3.5 LITER

$66.49 $48.76
4 11310-0P041 11310-0P041 / Lower Timing Cover

3.5 LITER

$845.33 $620.02
5 90311-A0027 90311-A0027 / Rear Main Seal

Rear Seal

3.5 LITER

$45.17 $33.12
6 11381-31021 11381-31021 / Rear Main Seal Retainer

Retainer Plate

3.5 LITER

$57.98 $42.53
7 13506-0P011 13506-0P011 / Timing Chain

3.5 LITER, MAIN

$251.13 $184.20
8 13507-0P010 13507-0P010 / Secondary Chain

Timing Chain

3.5 LITER, AUXILARY

$74.58 $54.70
9 13561-0P010 13561-0P010 / Chain Guide

Lower Guide, LEFT

3.5 LITER

$99.49 $72.98
9 13559-0P010 13559-0P010 / Chain Guide

Lower Guide, RIGHT

3.5 LITER

$36.43 $26.72
10 13562-0P010 13562-0P010 / Chain Guide

Upper Guide, LEFT

3.5 LITER

$21.72 $15.93
10 13562-0P010 13562-0P010 / Chain Guide

Upper Guide, RIGHT

3.5 LITER

$21.72 $15.93
11 13560-0P010 13560-0P010 / Chain Tensioner

Tensioner, LEFT

3.5 LITER, UPPER

$79.53 $58.33
11 13550-0P010 13550-0P010 / Chain Tensioner

Tensioner, RIGHT

3.5 LITER, UPPER

$79.53 $58.33
12 13540-0P010 13540-0P010 / Chain Tensioner

Tensioner

3.5 LITER, LOWER

$79.53 $58.33
13 12101-0P040 12101-0P040 / Oil Pan

Upper Oil Pan

3.5 LITER

$244.48 $179.32
14 12102-0P020 12102-0P020 / Oil Pan

Lower Oil Pan

3.5 LITER

$187.77 $137.71
15 90341-12012 90341-12012 / Drain Plug

Lower Oil Pan Drain Plug

3.5 LITER

$5.03 $3.68
16 90430-12031 90430-12031 / Drain Plug Gasket

Lower Oil Pan Gasket

3.5 LITER

$1.13 $0.83
17 12121-0P010 12121-0P010 / Oil Pan Baffle

Baffle Plate

3.5 LITER

$54.82 $40.21
18 15301-0P020 15301-0P020 / Dipstick

3.5 LITER

$16.12 $11.82
19 12142-0P010 12142-0P010 / Tube

3.5 LITER

$18.07 $13.26
20 96721-19010 96721-19010 / Guide Tube O-Ring

Tube Seal

3.5 LITER

$2.44 $1.79
21 04152-YZZA1 04152-YZZA1 / Oil Filter

Filter Element

3.5 LITER

$5.41 $3.95
21 04152-YZZA1 04152-YZZA1 / Oil Filter

SIENNA

$5.41 $3.95
22 15620-31060 15620-31060 / Filter Cover

Filter Housing

3.5 LITER

$35.11 $25.75
23 15643-31050 15643-31050 / Drain Plug

Filter Housing Plug

3.5 LITER

$4.45 $3.27
24 96723-35028 96723-35028 / Oil Filter Hsng O-Ring

Filter Housing Gasket

3.5 LITER

$3.88 $2.84
25 90301-79006 90301-79006 / Oil Filter Hsng Gasket

Filter Housing O-Ring

3.5 LITER

$5.00 $3.67
26 15115-0P030 15115-0P030 / Oil Pump Cover

Oil Pump

3.5 LITER

$29.88 $21.91
27 11201-0P020 11201-0P020 / Valve Cover

Valve Cover, RIGHT

3.5 LITER

$349.82 $256.58
27 11202-0P020 11202-0P020 / Valve Cover

Valve Cover, LEFT

3.5 LITER

$374.93 $274.99
28 11213-0P010 11213-0P010 / Valve Cover Gasket

Valve Cover Gasket, RIGHT

3.5 LITER

$15.86 $11.63
28 11214-0P040 11214-0P040 / Valve Cover Gasket

Valve Cover Gasket, LEFT

3.5 LITER

$17.44 $12.79
29 12180-0H012 12180-0H012 / Filler Cap

3.5 LITER

$11.84 $8.69
30 90080-43025 90080-43025 / Filler Cap O-Ring

Filler Cap Gasket

3.5 LITER

$5.86 $4.29
