FUEL SYSTEM/FUEL SYSTEM COMPONENTS for 2010 Toyota Prius

Select FUEL SYSTEM COMPONENTS Part

2010 Toyota Prius

Change vehicle

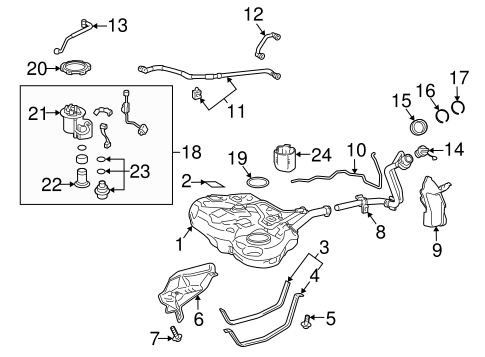

No. Part # Part # / Description List Price Price
1 77001-47110 77001-47110 / Fuel Tank

W/O PLUG-IN

- -
2 77652-47010 77652-47010 / Fuel Tank Cushion

W/O PLUG-IN, TYPE 2

$2.93 $2.15
2 77651-12070 77651-12070 / Fuel Tank Cushion

W/O PLUG-IN, TYPE 1

$5.20 $3.82
3 77602-47090 77602-47090 / Tank Strap

Tank Strap, LEFT

W/O PLUG-IN

$46.69 $34.25
3 77601-47090 77601-47090 / Tank Strap

Tank Strap, RIGHT

W/O PLUG-IN

$55.88 $40.99
4 77682-47020 77682-47020 / Tank Strap Seat

Tank Strap Seat, LEFT

W/O PLUG-IN

$12.13 $8.89
4 77681-47020 77681-47020 / Tank Strap Seat

Tank Strap Seat, RIGHT

W/O PLUG-IN

$12.13 $8.89
5 90080-11654 90080-11654 / Tank Strap Bolt

Tank Strap Bolt, RIGHT

W/O PLUG-IN

$1.64 $1.20
5 90080-11654 90080-11654 / Tank Strap Bolt

Tank Strap Bolt, LEFT

W/O PLUG-IN

$1.64 $1.20
6 77641-47020 77641-47020 / Shield

W/O PLUG-IN

$74.99 $55.00
7 90119-A0095 90119-A0095 / Tank Shield Bolt

Shield Retainer Screw

W/O PLUG-IN

$1.06 $0.78
8 77201-47120 77201-47120 / Filler Pipe

W/O PLUG-IN

$204.20 $149.77
9 77277-47040 77277-47040 / Filler Pipe Protector

W/O PLUG-IN, W/15 WHEELS

$63.67 $46.70
9 77277-47050 77277-47050 / Filler Pipe Protector

W/O PLUG-IN, W/17 WHEELS

$13.59 $9.97
10 77226-47051 77226-47051 / Breather Tube

W/O PLUG-IN

$43.50 $31.90
11 77404-47060 77404-47060 / Vent Tube

W/O PLUG-IN, LONG

$53.07 $38.92
12 77404-47090 77404-47090 / Vent Tube

W/O PLUG-IN, SHORT

$30.20 $22.14
13 77209-47051 77209-47051 / Suction Tube

W/O PLUG-IN

$24.39 $17.90
14 77300-75010 77300-75010 / Filler Cap

Fuel Cap

W/O PLUG-IN

$21.99 $16.13
15 77291-47030 77291-47030 / Shield

W/O PLUG-IN

$12.30 $9.02
16 77391-44020 77391-44020 / Shield Ring

W/O PLUG-IN, UPPER

$2.96 $2.17
17 77391-02040 77391-02040 / Pocket O-Ring

Shield Ring

W/O PLUG-IN, LOWER

$2.93 $2.15
18 77020-47081 77020-47081 / Fuel Pump Assembly

W/O PLUG-IN

$526.98 $386.52
19 77169-47040 77169-47040 / Fuel Pump Assembly O-Ring

W/O PLUG-IN

$20.54 $15.07
20 77144-47040 77144-47040 / Fuel Pump Assembly Lock Ring

W/O PLUG-IN

$24.82 $18.20
21 77024-47030 77024-47030 / Housing

W/O PLUG-IN

$122.37 $89.76
22 23220-47010 23220-47010 / Fuel Pump

W/O PLUG-IN

$348.21 $255.39
23 23280-21010 23280-21010 / Fuel Pressure Regulator

Pressure Reg

W/O PLUG-IN

$150.67 $110.51
23 23280-21010 23280-21010 / Fuel Pressure Regulator

PRIUS

$150.67 $110.51
24 83320-47080 83320-47080 / Fuel Gauge Sending Unit

Level Sensor

W/O PLUG-IN

$97.98 $71.86
24 83320-47080 83320-47080 / Fuel Gauge Sending Unit

PRIUS

$97.98 $71.86
No. Part # Part # / Description List Price Price
N/A 90301-07037 90301-07037 / O-Ring

Injector O-Ring

PRIUS

$3.36 $2.46
N/A 23291-28020 23291-28020 / Injector Insulators

PRIUS

$5.23 $3.83
N/A 78110-12052 78110-12052 / Pedal Travel Sensor

PRIUS

$185.70 $136.20
No. Part # Part # / Description List Price Price
N/A 23814-37061 23814-37061 / Fuel Rail

PRIUS

$113.55 $83.29
N/A 23209-39195 23209-39195 / Injector

PRIUS; TO 9/11

$161.64 $118.56
